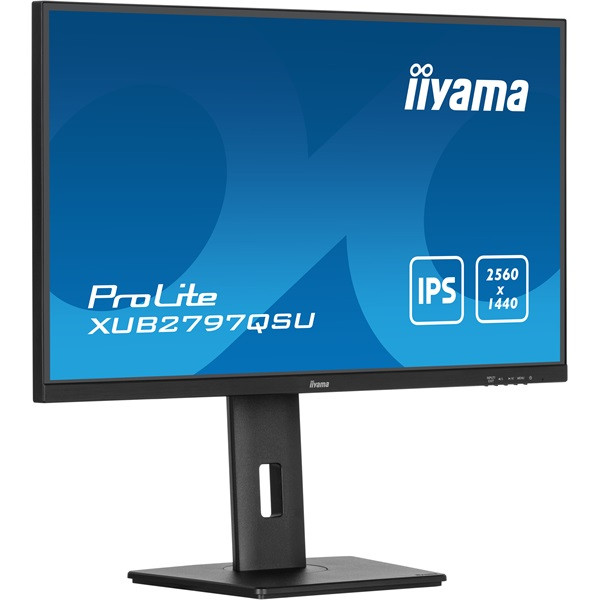

ProLite XUB2797QSU-B2 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
3-side borderless |
| Diagonal |
27", 68.5cm |
| Panel |
IPS Panel Technology LED, matte finish |
| Native resolution |
2560 x 1440 @100Hz (3.7 megapixel QHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
300 cd/m² |
| Static contrast |
1300:1 |
| Advanced contrast |
80M:1 |
| Response time (MPRT) |
1ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync |
30 - 150kHz |
| Viewable area W x H |
596.7 x 335.7mm, 23.5 x 13.2" |
| Pixel pitch |
0.233mm |
| Colour |
matte, black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Signal input |
HDMI x1 (v.2.0)
DisplayPort x1 (v.1.2) |
| USB HUB |
x2 (v.3.2 Gen 1 (5Gbps, 4.5W)) |
| HDCP |
yes |
| Headphone connector |
yes |
| |
|
| FEATURES |
|
| Blue light reducer |
yes |
| Flicker free |
yes |
| Adaptive Sync support |
yes |
| Extra |
i-Style colour |
| OSD languages |
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Control buttons |
Power, Menu, Up/Right/Volume, Down/Left/Submenu, Input/Exit |
| User controls |
picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous (sharp and soft, video mode adjust, opening logo, RGB range, LED, display information), input select (source), audio settings (volume, mute) |
| Speakers |
2 x 2W |
| Convenience |
Kensington-lock™ prepared, DDC2B |
| |
|
| MECHANICAL |
|

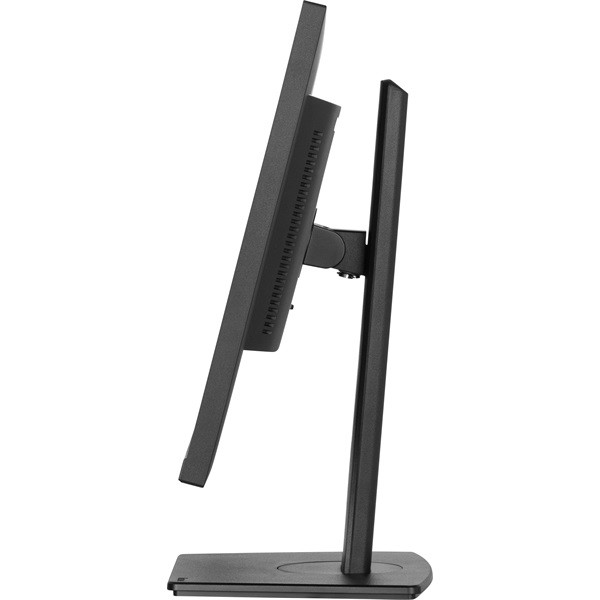

| Display position adjustments |
height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment |
150mm |

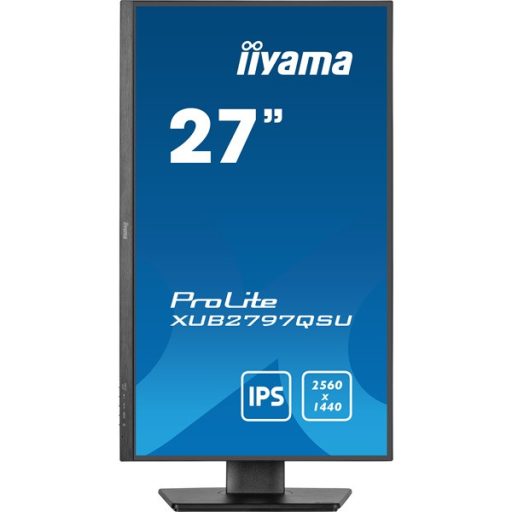

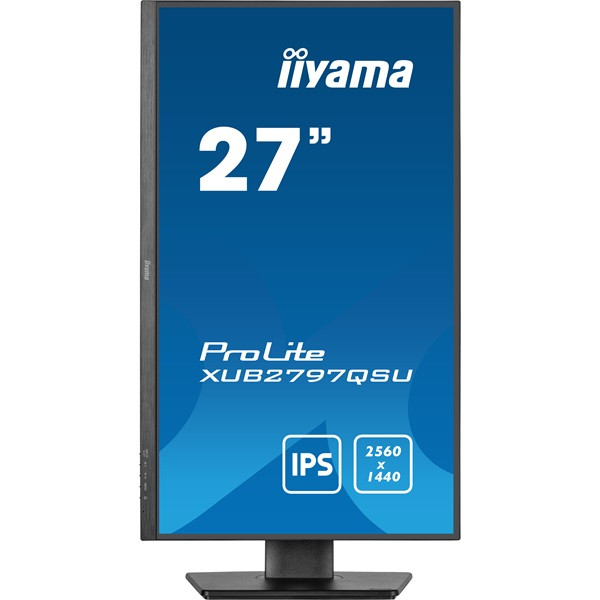

| Rotation (PIVOT function) |
90° |
| Swivel stand |
120°; 60° left; 60° right |

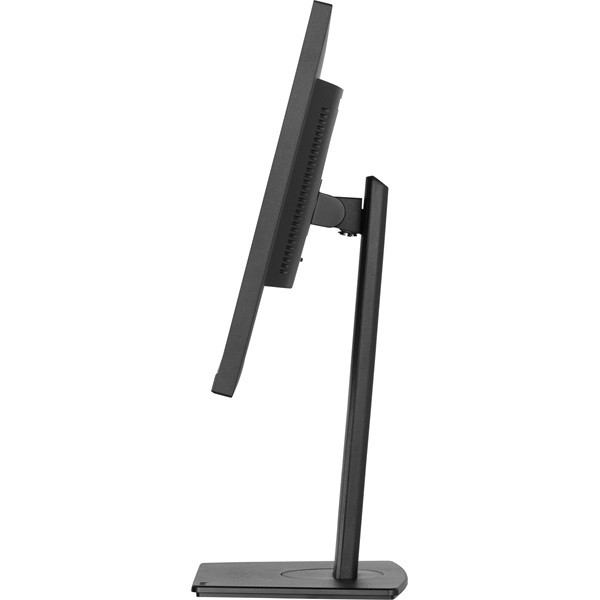

| Tilt angle |
23° up; 5° down |
| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, DP |
| Other |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
23W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
