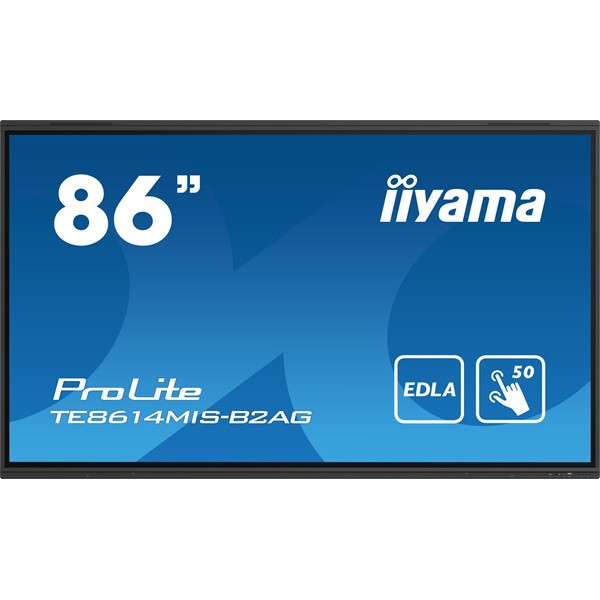

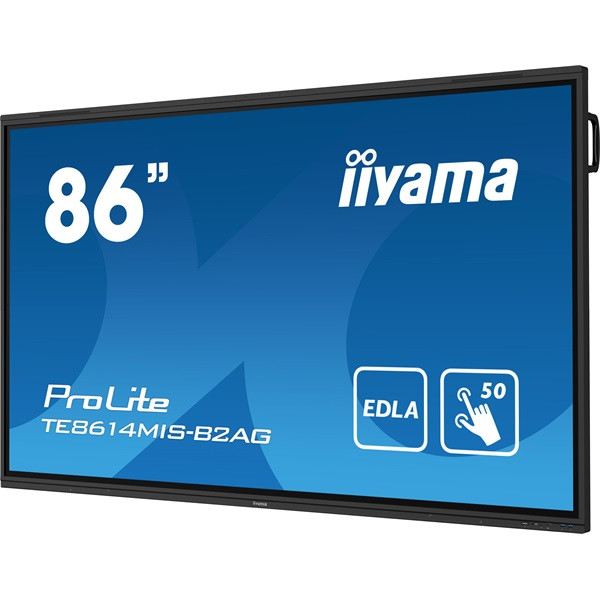

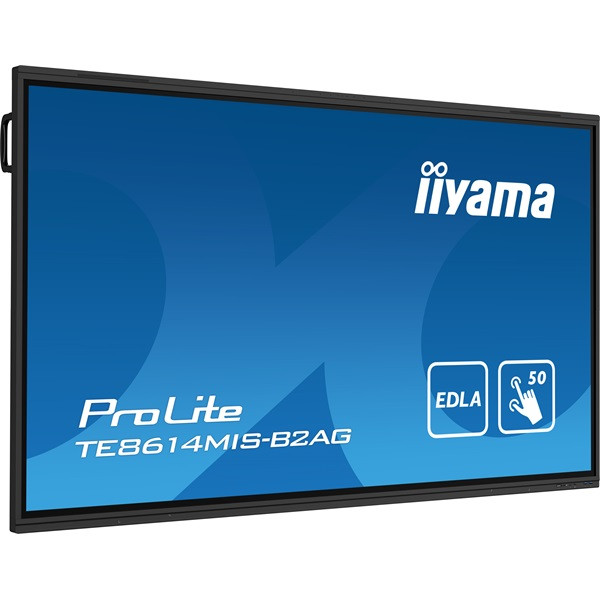

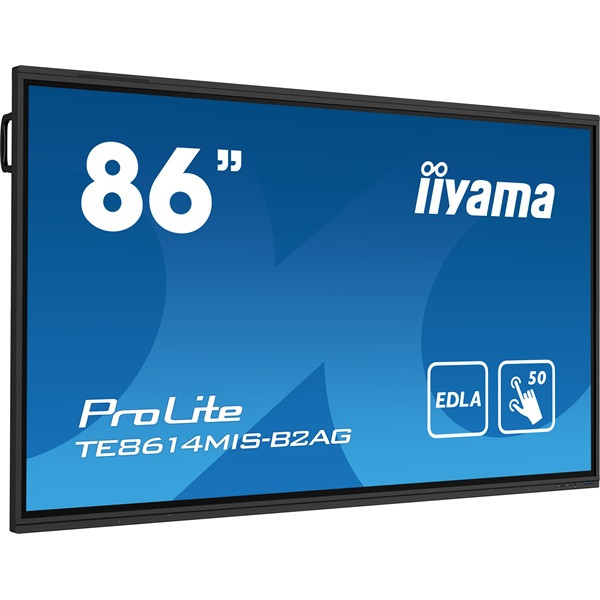

ProLite TE8614MIS-B2AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
85.6", 217.4cm |
| Panel |
VA |
| Touch Glass |
Anti-Gloss treatment, Anti-Glare glass, Matt polished surface, Ultra smooth writing, Zero Air-Gap |
| Panel |
VA |
| Native resolution |
3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio |
16:9 |
| Brightness |
450 cd/m² (max.) |
| Light transmittance |
92% |
| Static contrast |
4000:1 |
| Dynamic contrast |
5000:1 |
| Response time (GTG) |
6.5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync |
30 - 135kHz |
| Viewable area W x H |
1895 x 1066mm, 74.6 x 42" |
| Bezel width (sides, top, bottom) |
16.5mm, 16.5mm, 41mm |
| Pixel pitch |
0.494mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
PureTouch-IR? |
| Touch points |
50, 10pt writing (HID, only with supported OS, 40pt Touch with Android) |
| Touch accuracy |
+- 1mm |
| Touch method |
stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x4 (2.0, max. 3840x2160 @60Hz, YUV420/ YUV444/ RGB444)
DisplayPort x1 (2.1, max. 3840x2160 @30Hz)
USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz (RGB444), DP 1.2 Alt mode, Touch, 1x front: 100W PD , 1x back: 15W PD) |
| Audio input |
Mini jack x1 |
| Monitor control input |
RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1 |
| Digital signal output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, MSD (Multi-Screen Display))
USB-C x1 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz, DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display)) |
| Audio output |
S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 18W (Facing up), 2x 8W (Front facing) |
| HDCP |
HDMI: 2.3 + 1.4, DP: 2.3 + 1.3, USB-C: 2.3 + 1.3 |
| USB ports |
x6 (media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 100W PD), back side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 15W PD)) |
| RJ45 (LAN) |
x2 (Auto switch for PC & Android, 1000MB) |
| Microphone |
8-Array (8m voice pick-up, Front facing) |
| |
|
| FEATURES |
|
| Integrated software |
iiWare 12E (Android 13 OS) featuring iiyama DMS, Google EDLA, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices |
| WiFi |
yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0) |
| Hardware |
CPU: A76*4+A55*4(2.4GHz), GPU: Mali G610 MC4, RAM: 8GB, ROM: 64GB |
| Extra |
WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen (anti-bacterial coating) |
| Kiosk mode |
yes |
| Max. non-stop operating time |
24/7 |
| Glass thickness |
3mm |
| Glass hardness |
7H |
| Housing (bezel) |
metal |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Power button, Power Indicator, Remote Sensor, Light Sensor, USB-C Connector (3.2) |
| User controls |
general settings (input, volume, backlight), display settings (auto brightness, ECO, eye care, paper eye care, picture mode, brightness, contrast, saturation, sharpness, colour temp., advanced settings), audio settings (audio mode, volume, bass, treble, balance, mute), screen settings (pixel shift, auto light, , ECR), application settings (network & internet, apps, storage, personal, Google, advanced, administration, system, about) |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| |
|
| MECHANICAL |
|
| Orientation |
landscape |
| Fanless design |
yes |
| VESA mounting |
800 x 600mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Touch pen |
x4 (Dual function tips, Anti-Bacterial) |
| Guides |
quick start guide, safety guide |
| Other |
WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
267W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
1957 x 1171 x 86mm |
| Box dimensions W x H x D |
2110 x 1291 x 225mm |
| Weight (without box) |
63.6kg |
| Weight (with box) |
80.2kg |
| EAN code |
4948570124046 |
| |
|
