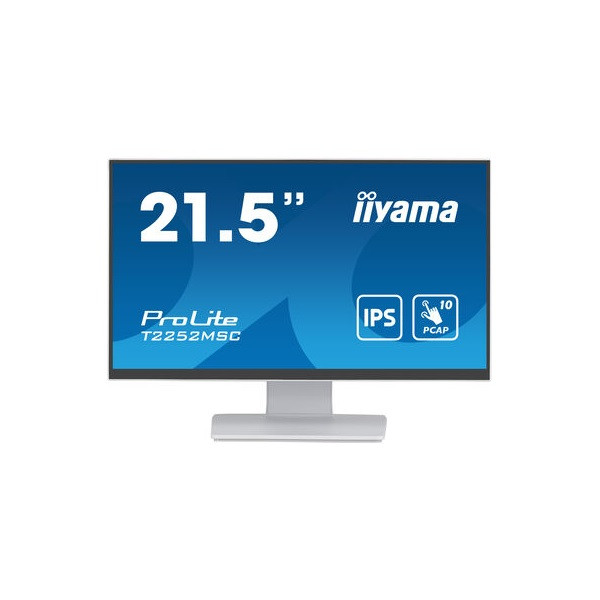

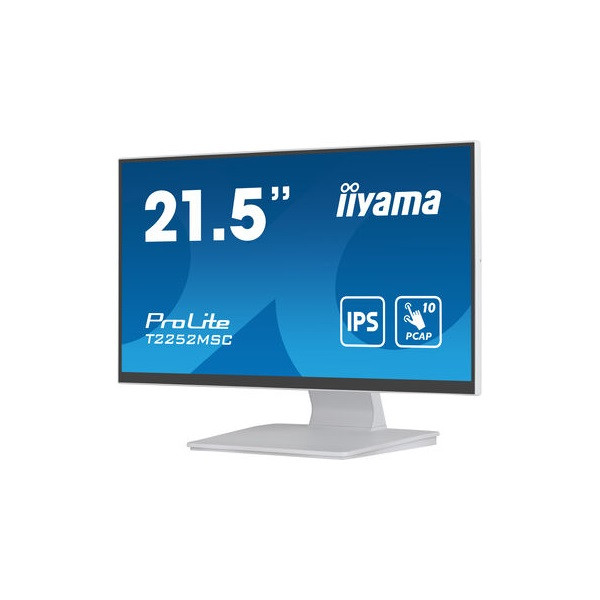

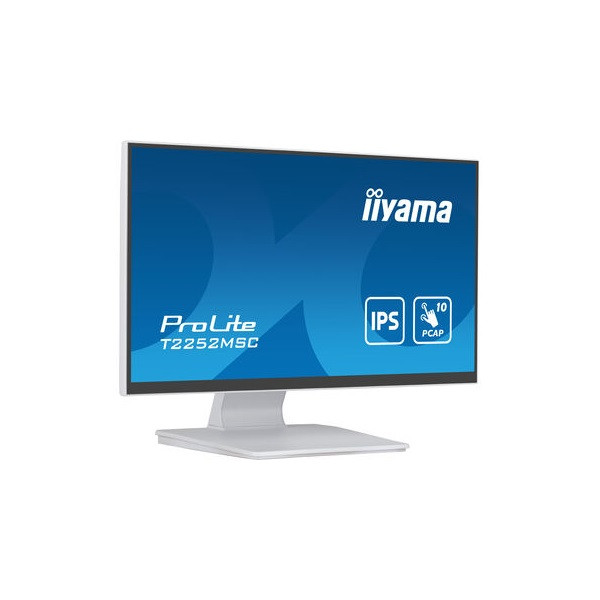

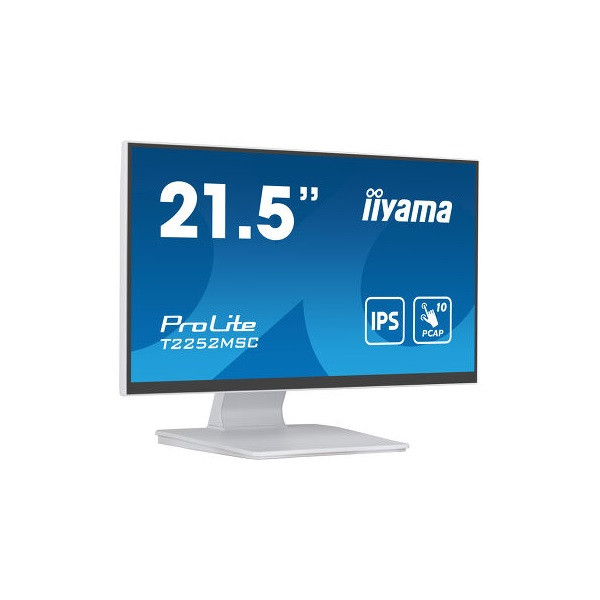

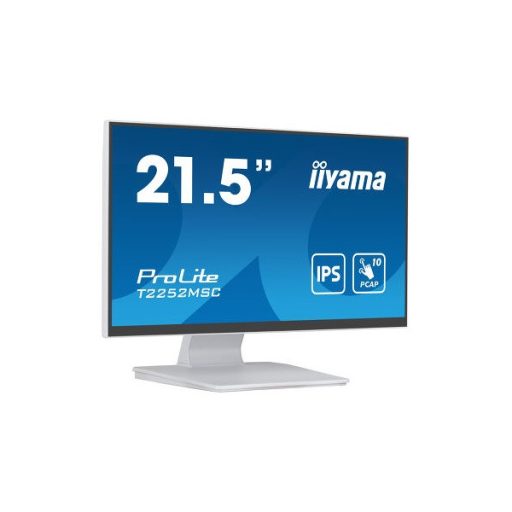

ProLite T2252MSC-W2 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
21.5", 54.5cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
250 cd/m² |
| Brightness |
225 cd/m² with touch |
| Light transmittance |
90% |
| Static contrast |
1000:1 |
| Response time (GTG) |
5ms |
| Viewing zone |
horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Colour support |
16.7mln |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
478.6 x 260mm |
| Pixel pitch |
0.249mm |
| Bezel colour and finish |
white, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|

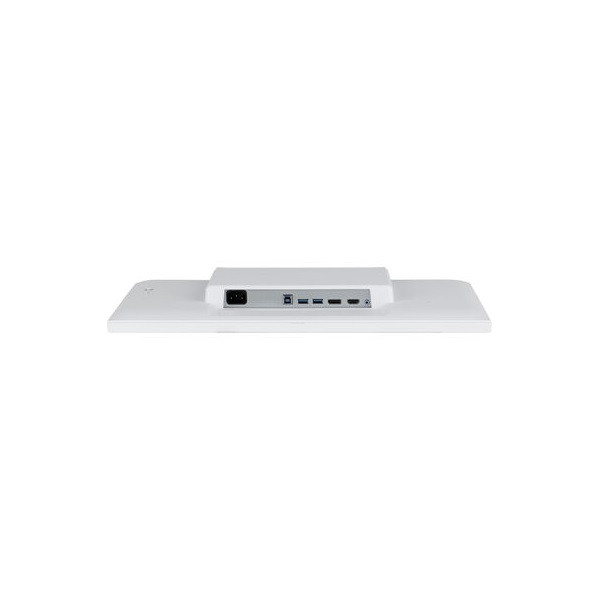

| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio output |
Mini jack x1
Speakers 2 x 1W |
| HDCP |
yes |
| USB HUB |
x2 (USB 3.2 Gen 1 ( 5Gbps, 5V, 900mA)) |
| |
|
| FEATURES |
|
| Extra |
Anti-fingerprint coating, touch support with gloved hand (thickness +2mm) |
| Glass hardness |
7H |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN |
| Control buttons |
Joystick: right/menu/enter, left/input/exit, up/eco, down, power |
| User controls |
picture adjust (brightness, contrast, i-Style, adv. contrast, ECO, OD, X-Res), color settings (gamma, rgb range, color temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (horizontal position, vertical pos., time, background), extra (reset, dcc/ci, signal select, volume, mute, opening logo, led, touch switch) |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|

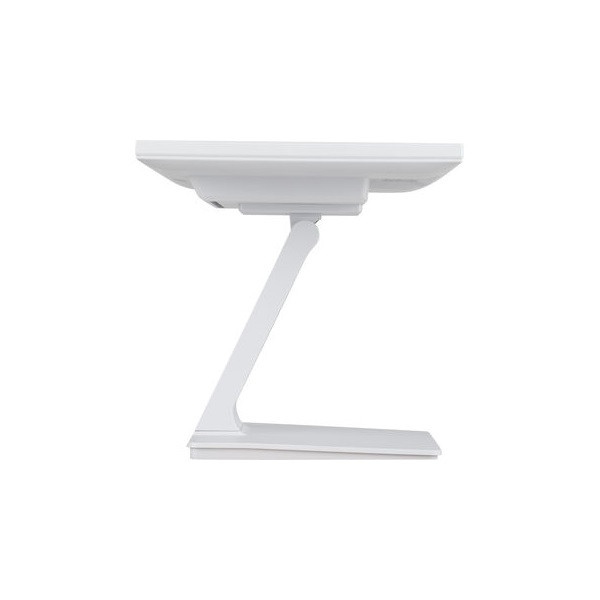

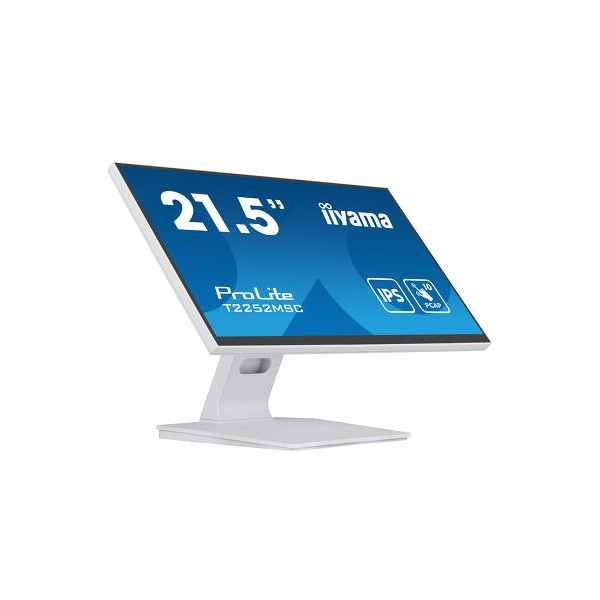

| Tilt angle |
90° up; 5° down |

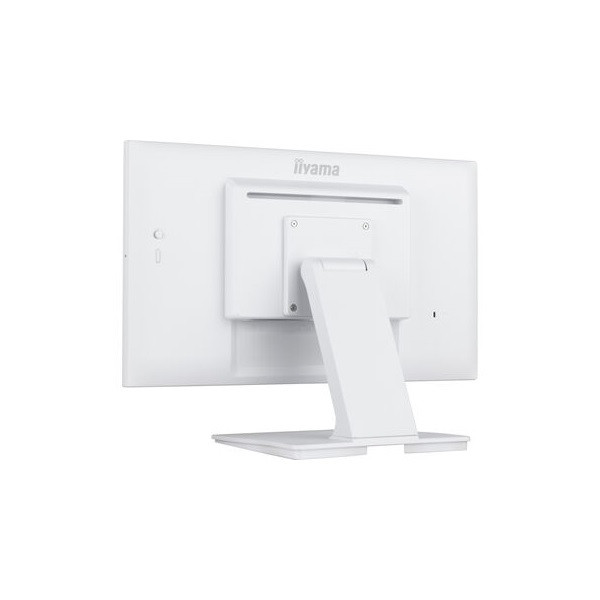

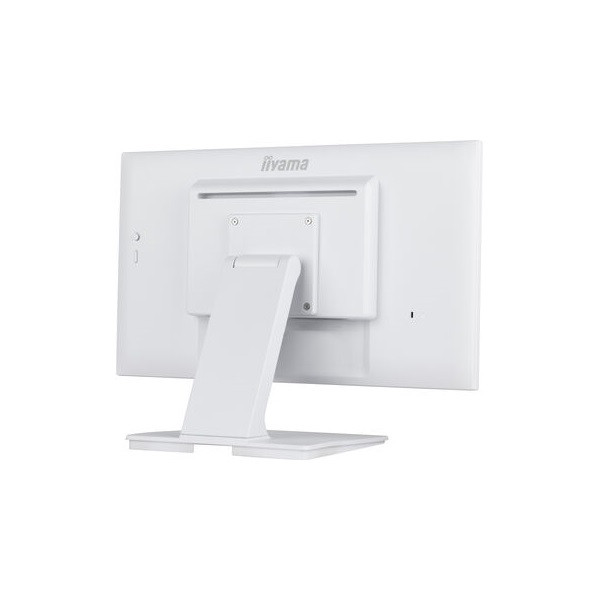

| VESA mounting |
100 x 100mm |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
safety guide |

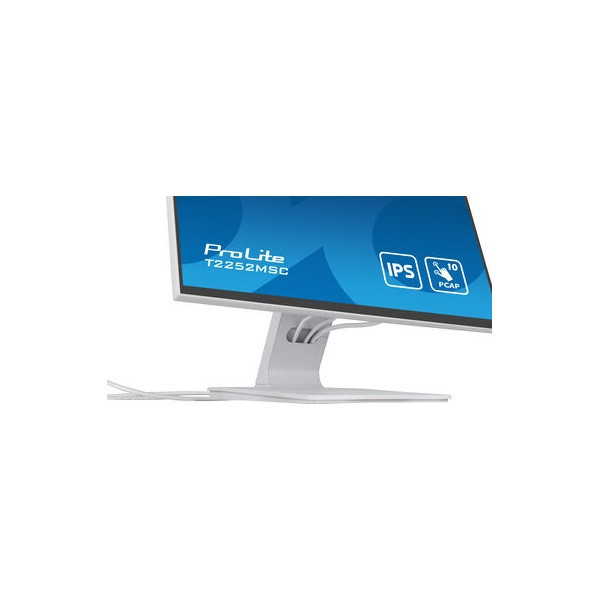

| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC AC - 100V, 240/V, 50Hz |
| Power usage |
11W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, RoHS support, ErP, WEEE, REACH, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) |
C |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
493.5 x 361.5 x 239.5mm |
| Box dimensions W x H x D |
560 x 350 x 150mm |
| Weight (without box) |
4.5kg |
| Weight (with box) |
6kg |
| EAN code |
4948570122059 |
| |
|
