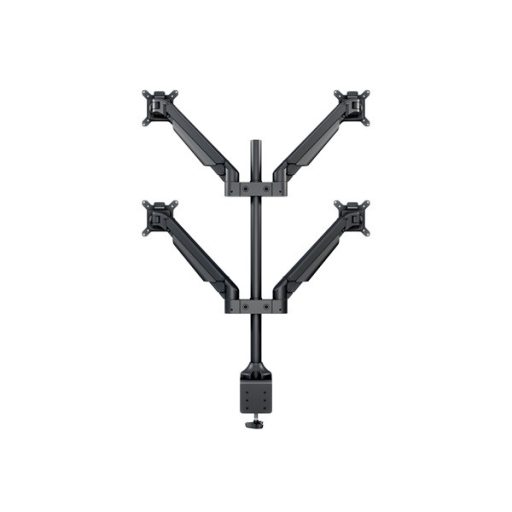

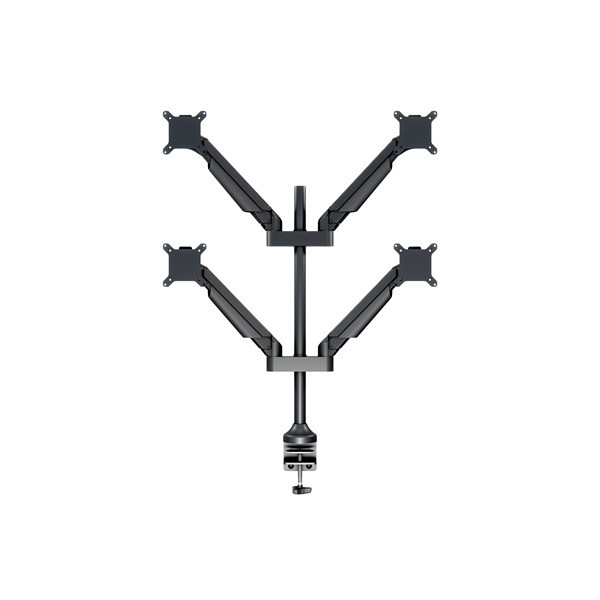

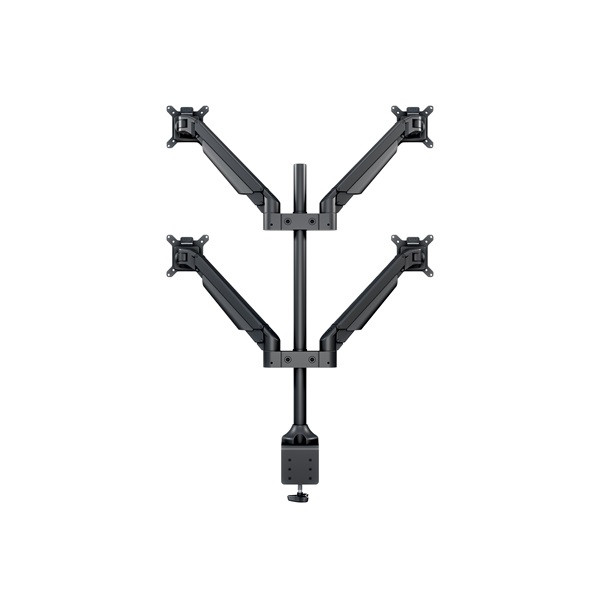

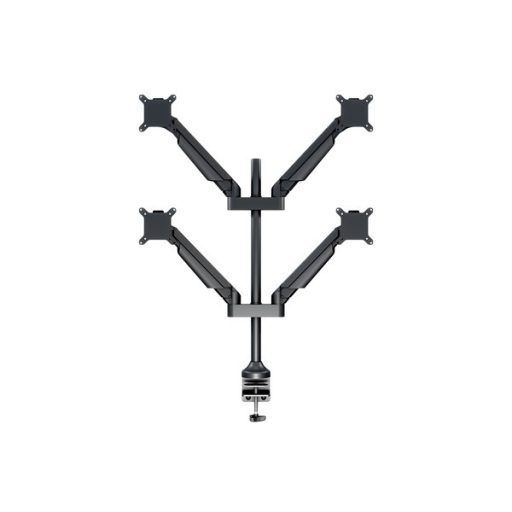

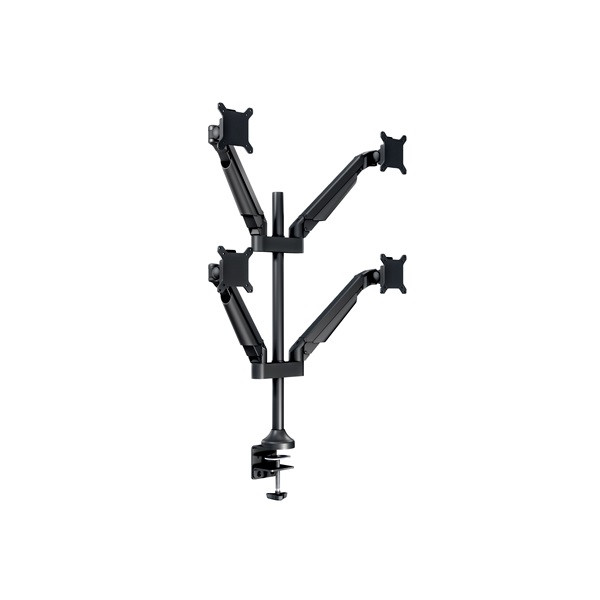

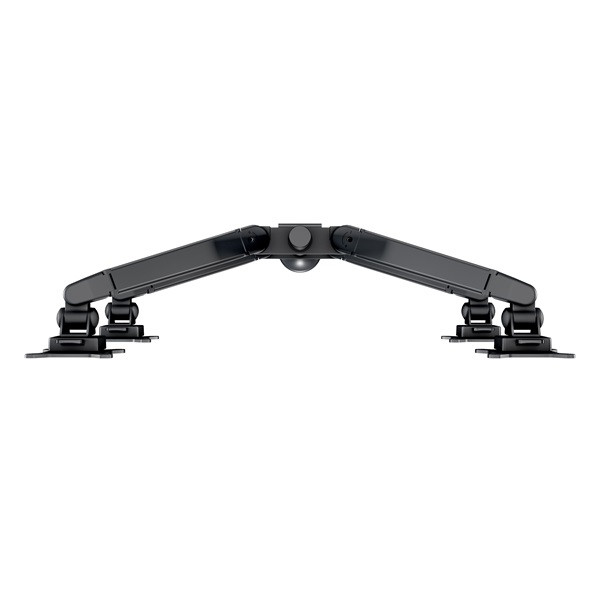

MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32", max.VESA: 100x100 mm, 21 kg)

Name: MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32", max.VESA: 100x100 mm, 21 kg)
Brand: MULTIBRACKETS
SKU: CS_235268
Price: 357740 HUF
Availability: InStock

Cikkszám:

CS_235268

MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32", max.VESA: 100x100 mm, 21 kg)

MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32", max.VESA: 100x100 mm, 21 kg)

Rendelhető

357 740 Ft

Részletek

SPECIFICATION

M VESA Gas Lift Arm I Quad HD Black

For screen size: 15-(32")*
VESA standard: 75x75 100x100 mm
Article No: 7 350 073 732 609
Colour: Black
Screen weight: Min. 9 kg — Max. 21 kg
Function: Gas driven piston
Warranty: 2 years
Weight: 10,3 kg

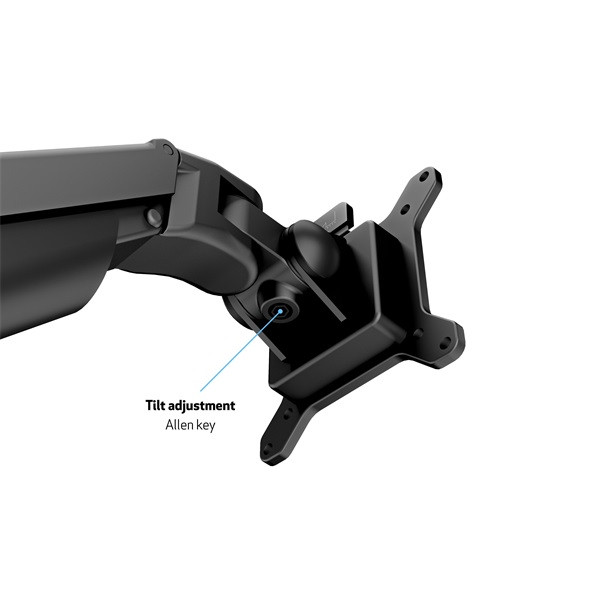

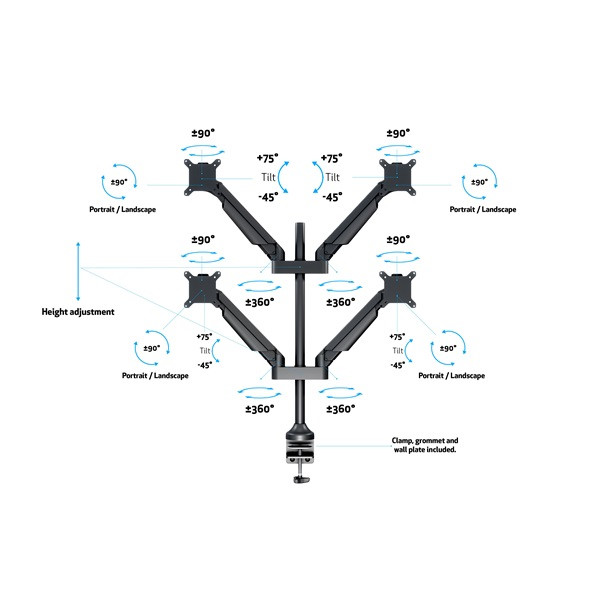

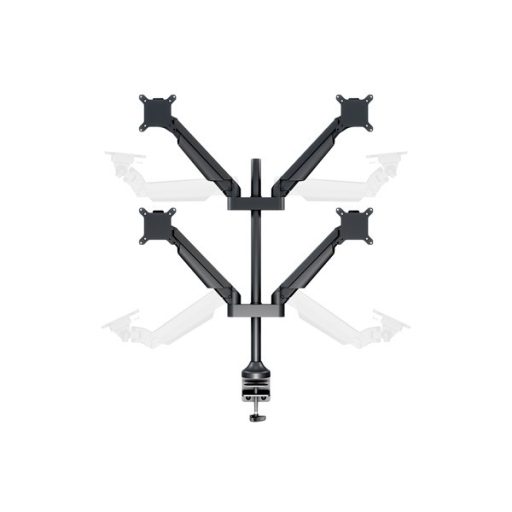

Tilt angle: +75 — -45 degrees
Turn angle: +90 — -90 degrees
Rotate: 90 degrees
Installation: On desk
Distribution package: 1 pcs
Single box size: 95x25x14cm
Distribution box size: 95x25x14cm
.

Retail Package Specification

Package Parcels: 1 pcs
Package Measurements: 96.5 x 25.5 x 15 cm
Package Weight: 11.50 kg
.

Material Specification

Product Weight: kg
Product Materials:
Total Package Material Weight: 1.200 kg
Retail Package Outer Box: 0.500 kg
Retail Package Inner Box: 0.650 kg
Plastic Material: 0.050 kg
.

* Important regarding maximum screen size. Check prior to purchase.
The Gas Lift Arm series is a very flexible product series and can handle many screen models. When using double or quad version in combination with very large screens of sizes 24", 27", 30" or even 32" it is important to double check the compatibility with the Gas Lift Arm before usage.

General restrictions:
- Max width of a screen is 750mm
- Max height of a screen is 500mm
- Max weight of a screen is 9-21 kg

Note 1:
Some larger screen series do have measurements and weight that exceed our recommendations. Such models are not recommended to be used with the Gas Lift Arm Series.
Note 2:
If combinations of different screen sizes are used with Dual or Quad Gas Liftm Arm Series flexibility would be better.
Note 3:
If multiple larger screens are used, then the flexibility and movement between the screens are likely to decrease.

If you are uncertain, or need guidance to check that your screen fits the Gas Lift Arm Series, please do not hesitate to contact us.

Adatok

Gyártó:

MULTIBRACKETS

Gyártói cikkszám:

7350073732609

Garancia:

60 hónap

Gyártó:

MULTIBRACKETS

Fali rögzítés:

100x100mm VESA falitartó-támogatás

VESA szabvány szerint:

75x75;100x100

Tömeg:

11 kg/db

MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32", max.VESA: 100x100 mm, 21 kg)

357 740 Ft
