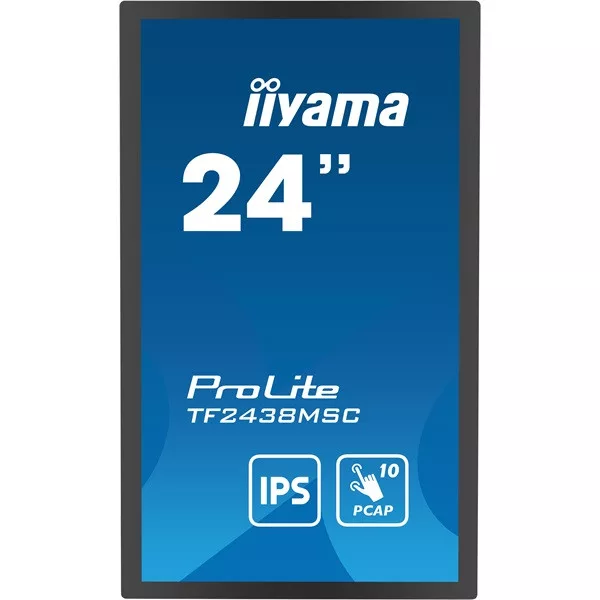

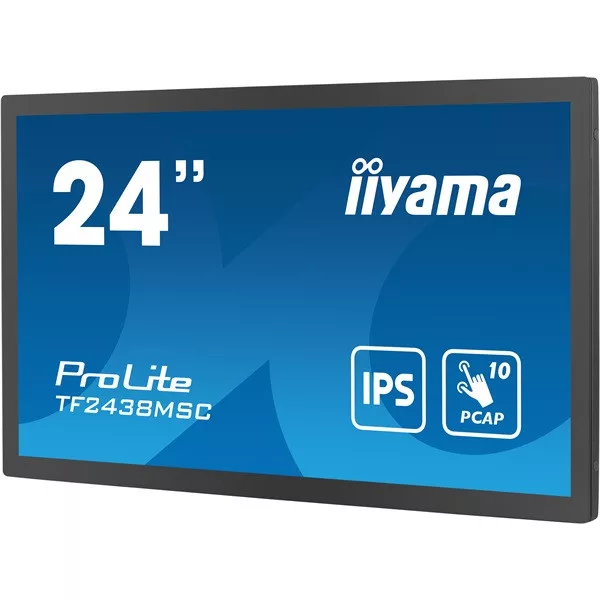

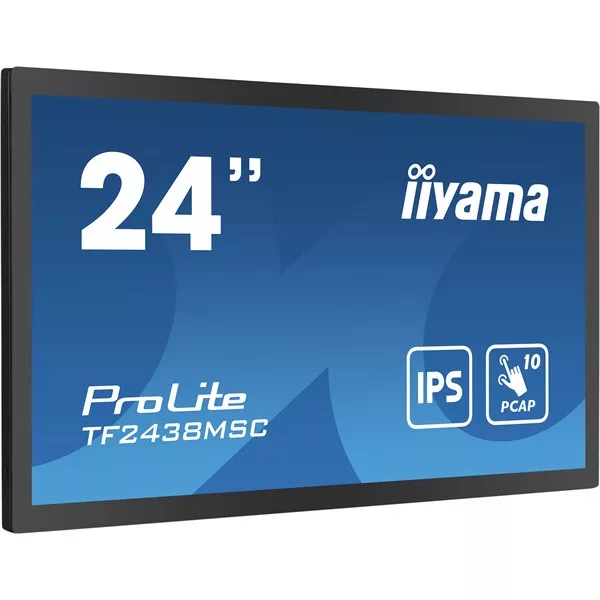

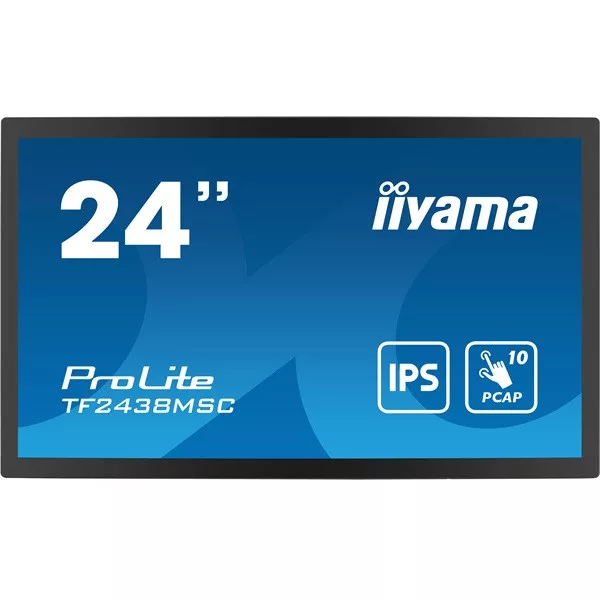

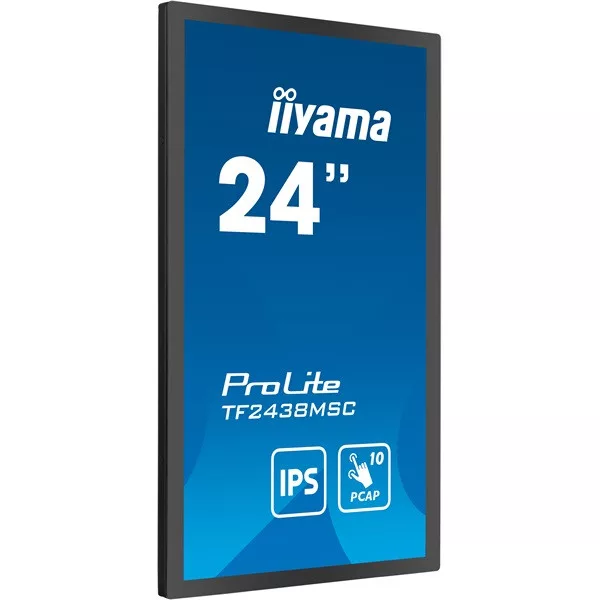

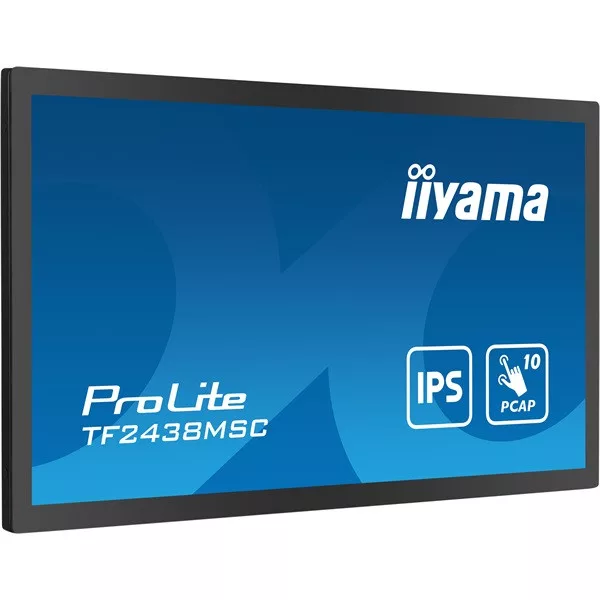

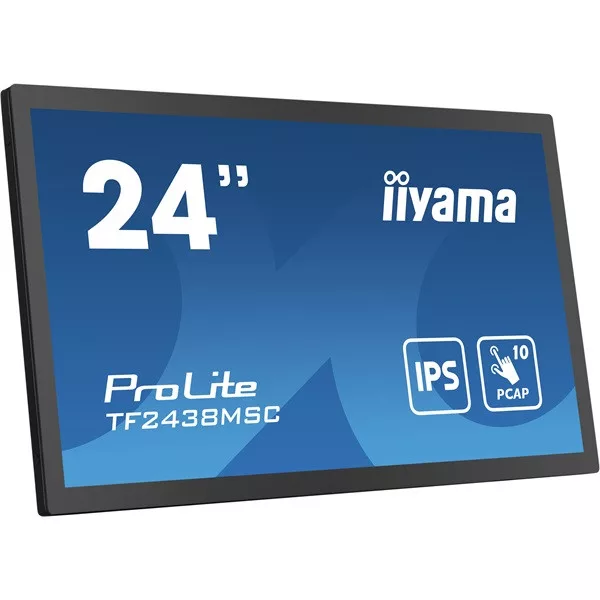

ProLite TF2438MSC-B1 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass, Open Frame |
| Diagonal |
23.8", 60.5cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
600 cd/m² |
| Brightness |
525 cd/m² with touch |
| Light transmittance |
87% |
| Static contrast |
1000:1 |
| Response time (GTG) |
5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
527 x 296.5mm, 20.7 x 11.7" |
| Bezel width (sides, top, bottom) |
17.25mm, 20.3mm, 20.3mm |
| Pixel pitch |
0.275mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
bonded PCAP |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio output |
Speakers 2 x 2W |
| HDCP |
yes |
| USB HUB |
x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| |
|
| FEATURES |
|
| Extra |
Optical bonding PCAP, metal housing, anti fingerprint coating, waterproof touch function |
| Glass thickness |
3.6mm |
| Glass hardness |
7H |
| 60950 Ball drop test |
yes |
| Water and dust protection |
IP1X (front) |
| Housing (bezel) |
metal |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, CN, RU, JP, NL, PL |
| Control buttons |
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| User controls |
Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Orientation |
landscape, portrait, face-up |
| Fanless design |
yes |
| VESA mounting |
100 x 100mm |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
22W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| Energy efficiency class |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
561.5 x 337 x 47.5mm |
| Box dimensions W x H x D |
635 x 409 x 115mm |
| Weight (without box) |
6.5kg |
| Weight (with box) |
8.1kg |
| EAN code |
4948570121113 |
| |
|
