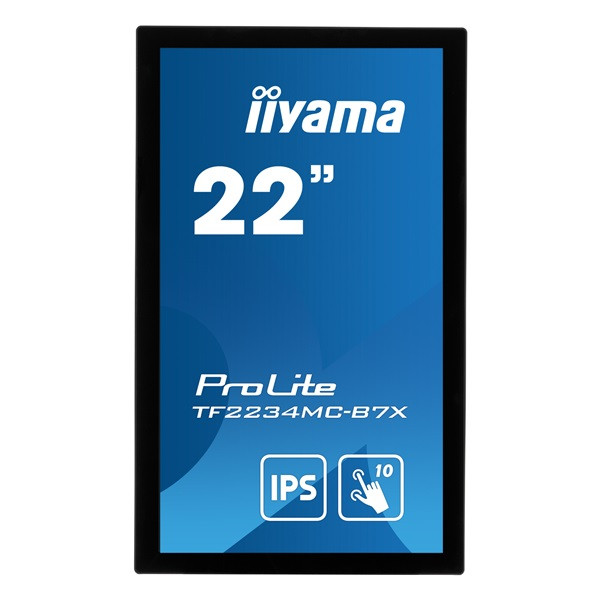

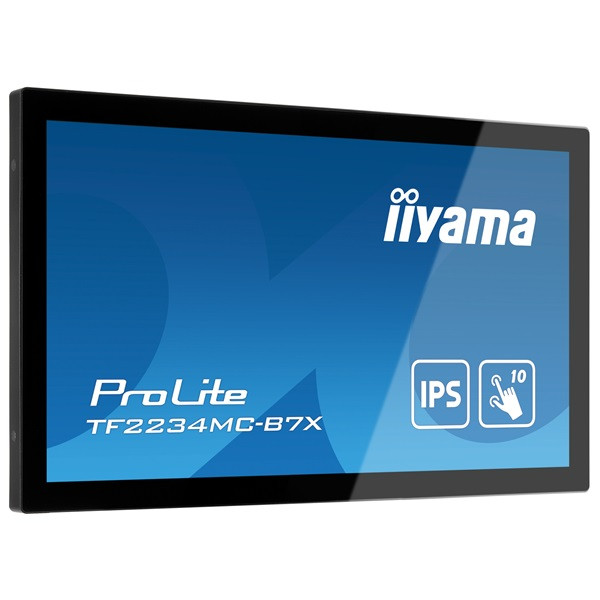

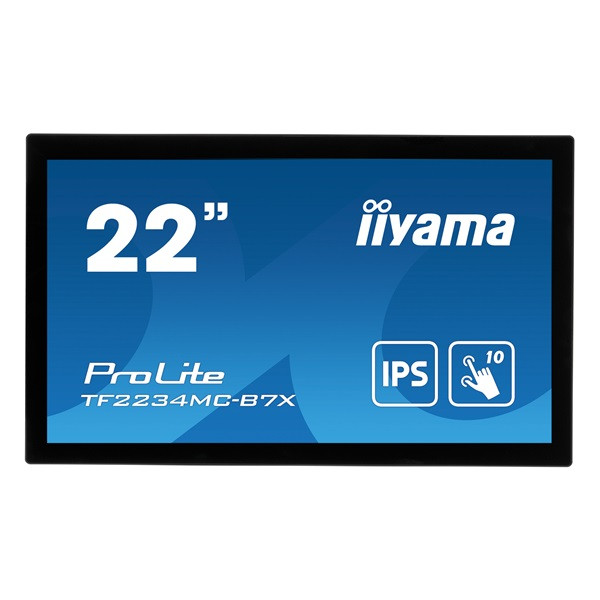

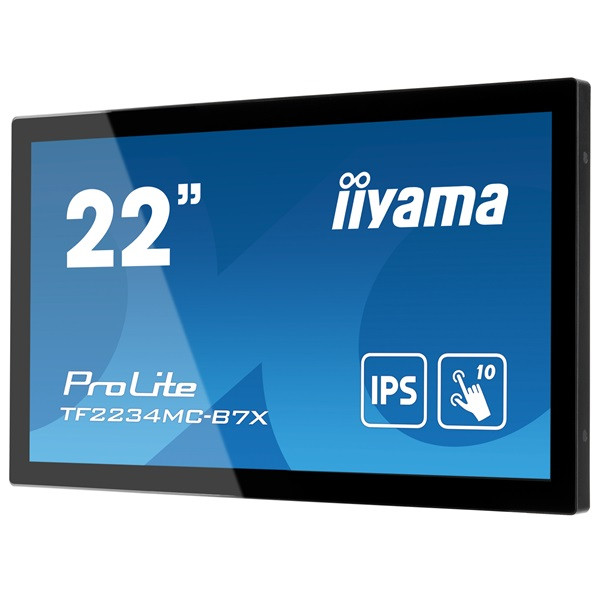

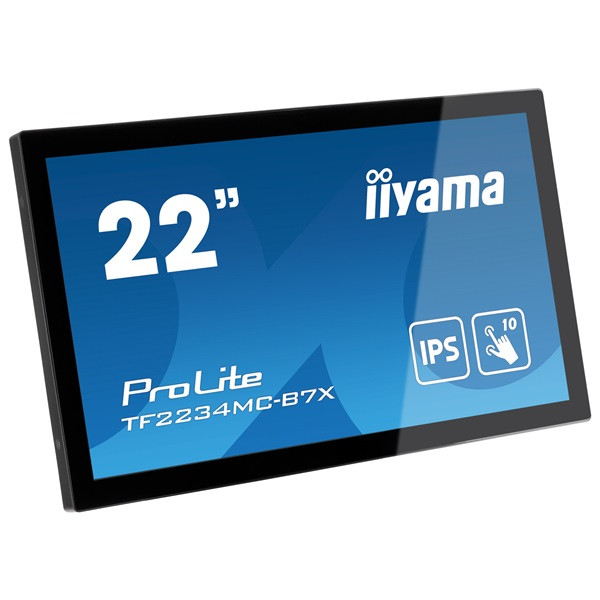

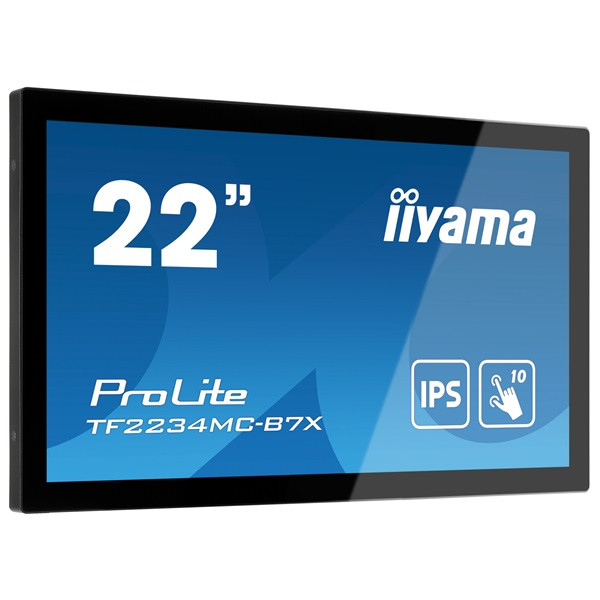

iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC

Cikkszám:
CS_324528
iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Rendelhető
307 550 Ft
Részletek

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 21.5", 54.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 350 cd/m²
Brightness 305 cd/m² with touch
Light transmittance 87%
Static contrast 1 000:1 with touch
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 30 - 84kHz
Viewable area W x H 476.0 x 267.7mm, 18.7 x 10.5"
Pixel pitch 0.247mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
Glass thickness 1.5mm
Glass hardness 7H
Water and dust protection IP65 (front)

GENERAL

OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, PL

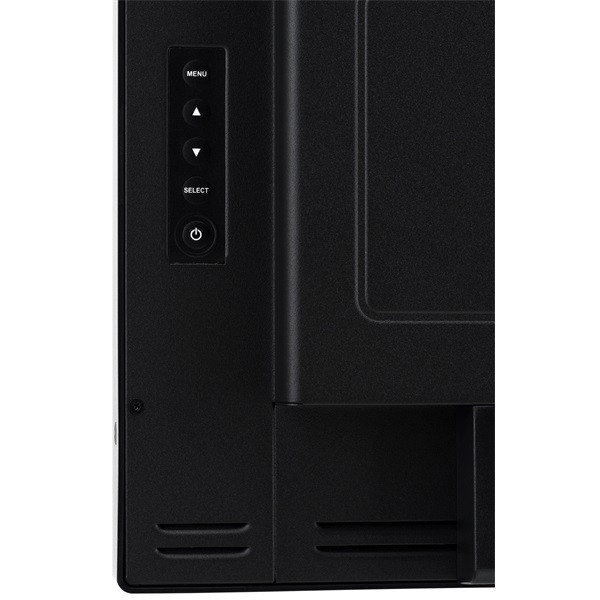

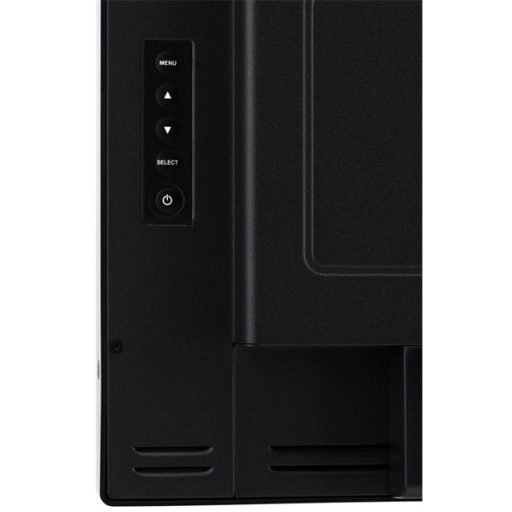

Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up

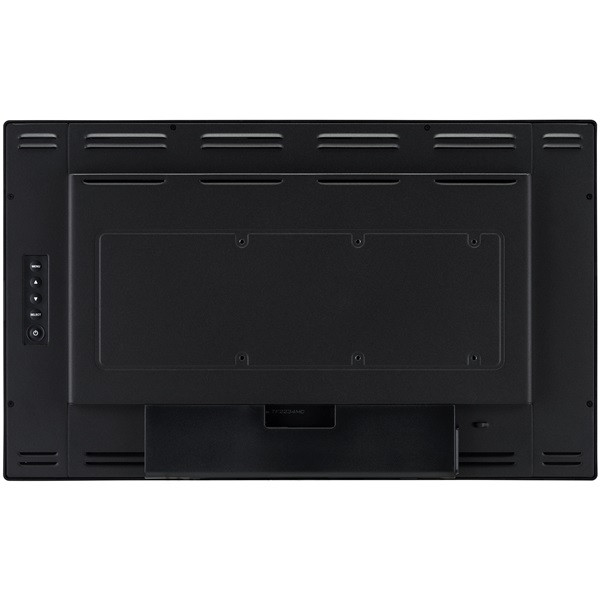

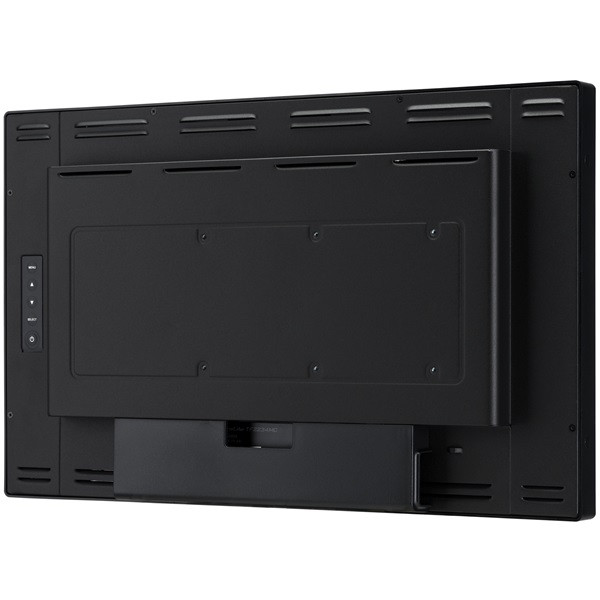

VESA mounting 100 x 100mm

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 517.5 x 313.5 x 46mm
Box dimensions W x H x D 610 x 405 x 160mm
Pallet volume 48pcs
Pallet dimensions W x H x D 1090 x 1090 x 1927mm
Weight (without box) 4.4kg
Weight (with box) 6.8kg
EAN code 4948570118366

COMPATIBLE ACCESSORIES

Mounts/stands/brackets OMK1-1

RELATED INFORMATION

Related products RC TOUCHV01OMK1-1
Adatok
Gyártó:
IIYAMA
Gyártói cikkszám:
TF2234MC-B7X
EAN:
4948570118366
EAN:
4948570118366
Típus:
Touch monitor
Garancia:
36 hónap
Gyártó:
IIYAMA
Felbontás:
1920 x 1080 (FHD1080) 16:9
Képátló:
21,5
Képarány:
16:9
Fali rögzítés:
100x100mm VESA falitartó-támogatás
Fényerő:
300
HDMI:
Van
D-Sub:
Van
Válaszidő:
8
Panel típus:
IPS
Display Port:
Van
USB:
Van
Beépített tápegység:
Nincs
Tömeg:
7 kg/db
