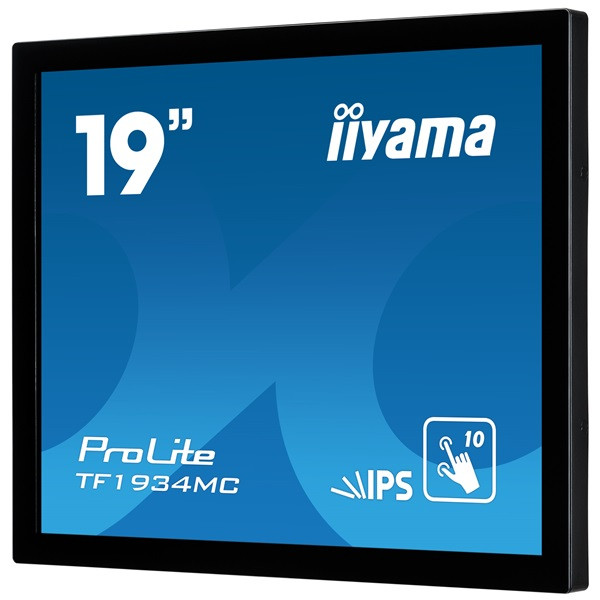

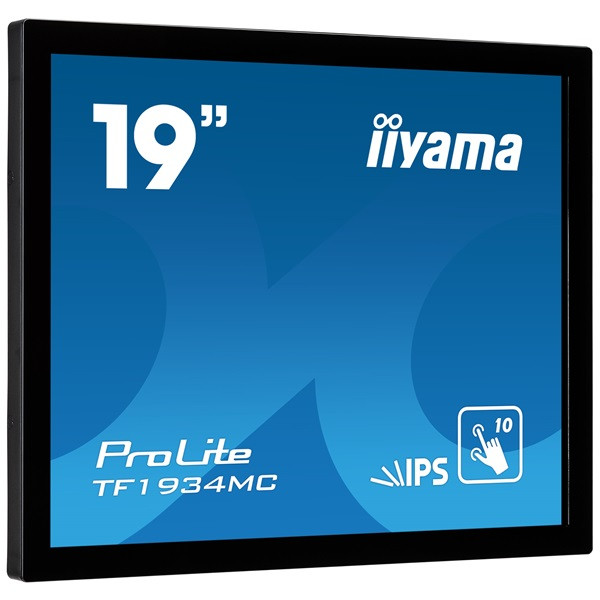

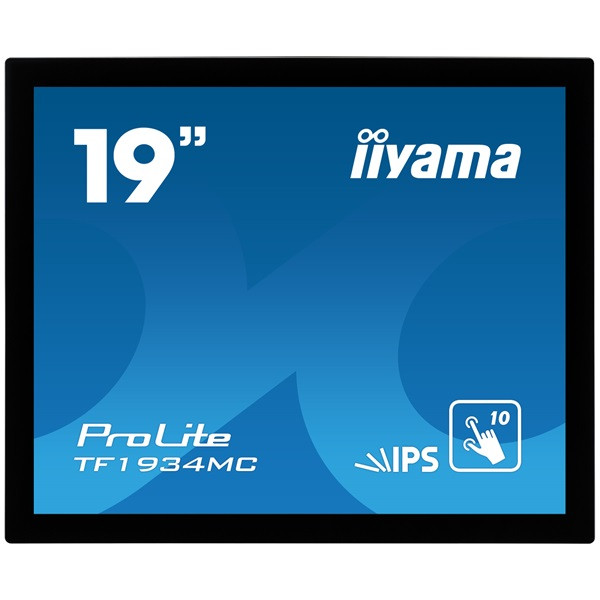

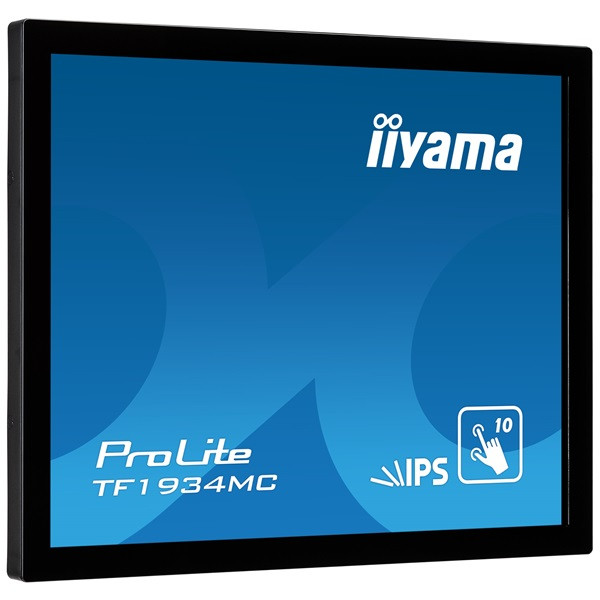

iiyama touch monitor, 19", 1280x1024, 5:4, 315cd, 14ms, 1000:1,VGA/HDMI/DP, open frame, TF1934MC

Name: iiyama touch monitor, 19", 1280x1024, 5:4, 315cd, 14ms, 1000:1,VGA/HDMI/DP, open frame, TF1934MC
Brand: IIYAMA
SKU: CS_324534
Price: 327210 HUF
Availability: InStock

Cikkszám:

CS_324534

iiyama touch monitor, 19", 1280x1024, 5:4, 315cd, 14ms, 1000:1,VGA/HDMI/DP, open frame, TF1934MC

iiyama touch monitor, 19", 1280x1024, 5:4, 315cd, 14ms, 1000:1,VGA/HDMI/DP, open frame, TF1934MC

Rendelhető

327 210 Ft

Részletek

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	19", 48cm
Panel	IPS LED
Native resolution	1280 x 1024 (1.3 megapixel)
Aspect ratio	5:4
Panel brightness	350 cd/m²
Brightness	315 cd/m² with touch
Light transmittance	90%
Static contrast	1000:1 with touch
Response time (GTG)	14ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln
Horizontal Sync	31.4 - 80kHz
Viewable area W x H	376.5 x 301.1mm, 14.8 x 11.9"
Pixel pitch	0.294mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating, touch through-glass
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up
VESA mounting	100 x 100mm

ACCESSORIES INCLUDED

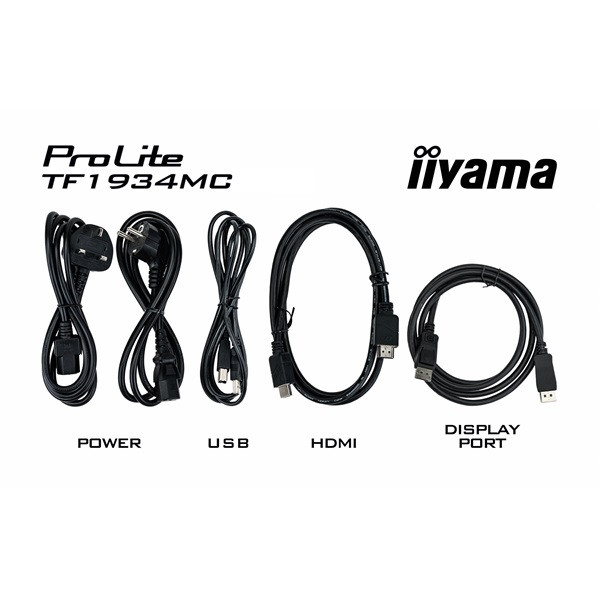

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, Touch Panel Driver Disk (CD-ROM)
Cable cover	yes

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	21W typical, 1.5W stand by, 1.5W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	F
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	416 x 344 x 46.5mm
Box dimensions W x H x D	16.4 x 13.5 x 1.8mm
Weight (without box)	4.4kg
EAN code	4948570118403

COMPATIBLE ACCESSORIES

Mounts/stands/brackets

OMK1-1

RELATED INFORMATION

Related products

RC TOUCHV01, OMK1-1

Adatok

Gyártó:

IIYAMA

Gyártói cikkszám:

TF1934MC-B7X

EAN:

4948570118403

EAN:

4948570118403

Típus:

Touch monitor

Garancia:

36 hónap

Gyártó:

IIYAMA

Felbontás:

1280 x 1024 (SXGA) 5:4

Képátló:

Képarány:

5:4

Fali rögzítés:

100x100mm VESA falitartó-támogatás

HDMI:

Van

D-Sub:

Van

Válaszidő:

Panel típus:

IPS

Hangszóró:

Van

Display Port:

Van

USB:

Van

Beépített tápegység:

Nincs

Tömeg:

5,5 kg/db
