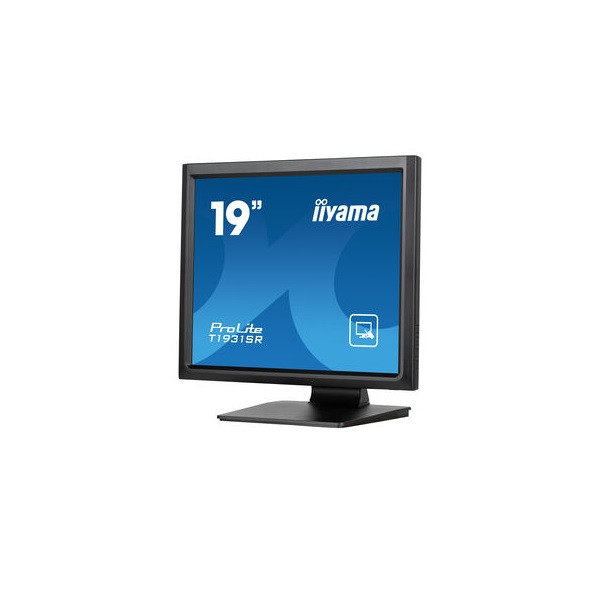

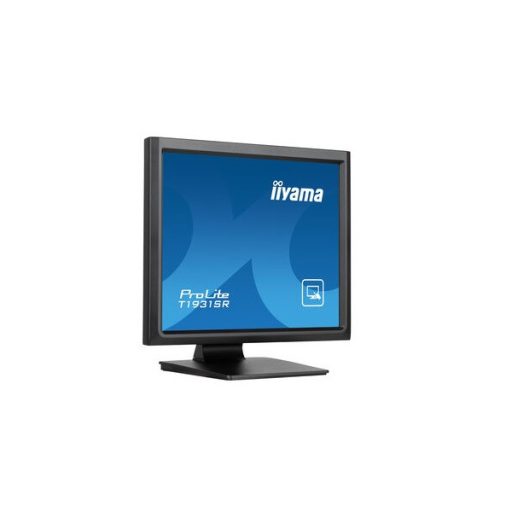

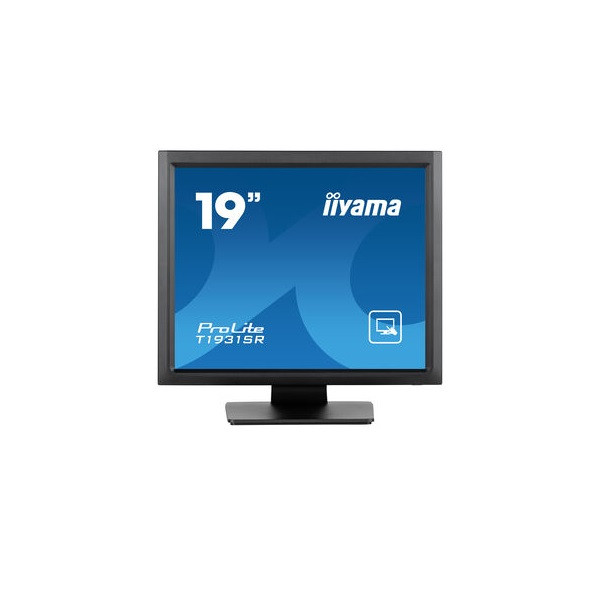

ProLite T1931SR-B1S |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Diagonal |
19", 48cm |
| Panel |
IPS |
| Native resolution |
1280 x 1024 (1.3 megapixel) |
| Aspect ratio |
5:4 |
| Panel brightness |
250 cd/m² |
| Brightness |
200 cd/m² with touch |
| Light transmittance |
80% |
| Static contrast |
1000:1 with touch |
| Response time (BTB) |
14ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln |
| Horizontal Sync |
31.5 - 80kHz |
| Viewable area W x H |
374.8 x 299.8mm, 14.7 x 11.8" |
| Pixel pitch |
0.293mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
serial resistive |
| Touch points |
1 |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio output |
Speakers 2 x 1W |
| HDCP |
yes |
| |
|
| FEATURES |
|
| Water and dust protection |
IP54 (front) |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, JP |
| Control buttons |
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| User controls |
contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Convenience |
Kensington-lock™ prepared |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Tilt angle |

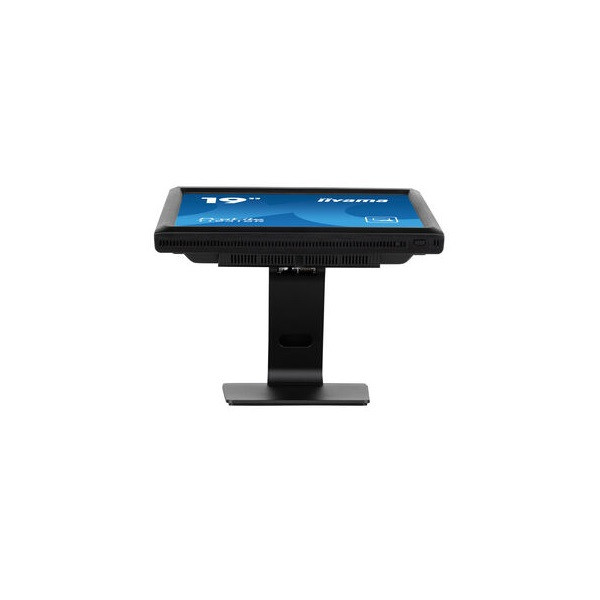

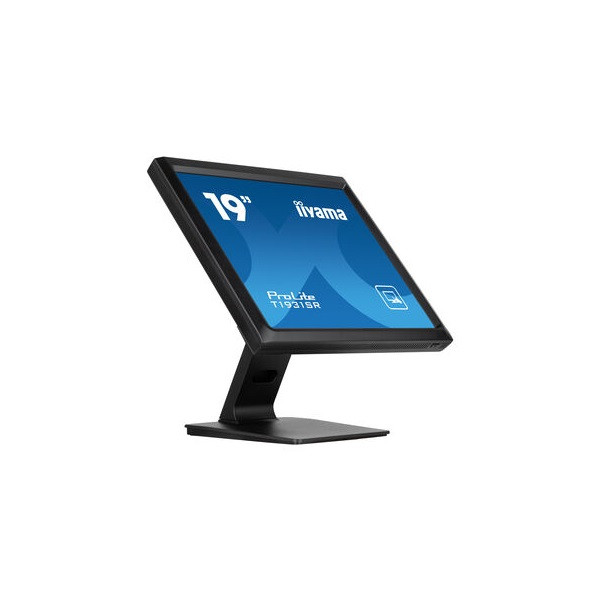

90° up; 5° down |

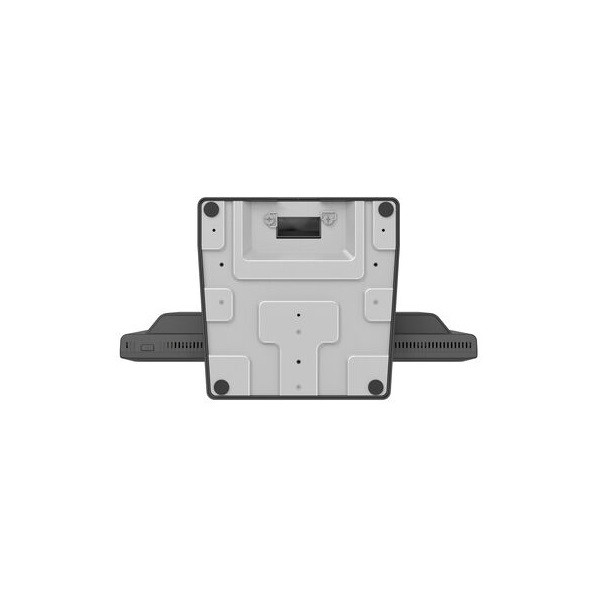

| VESA mounting |
100 x 100mm |

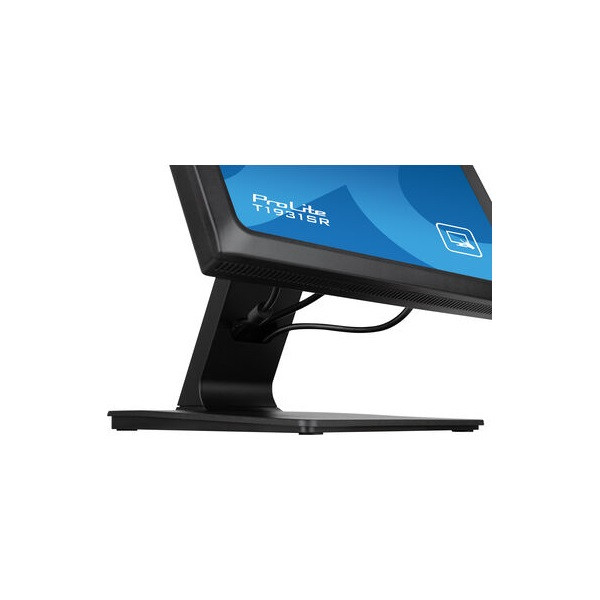

| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, Audio, DP |
| Guides |
quick start guide, safety guide |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
20W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| Energy efficiency class |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
432 x 431.5 x 239.5mm |
| Box dimensions W x H x D |
530 x 495 x 190mm |
| Weight (without box) |
6kg |
| Weight (with box) |
8kg |
| EAN code |
4948570122172 |
| |
|
