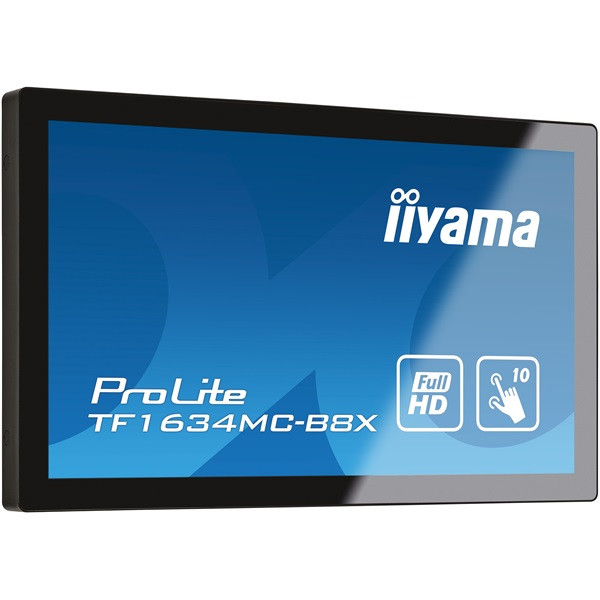

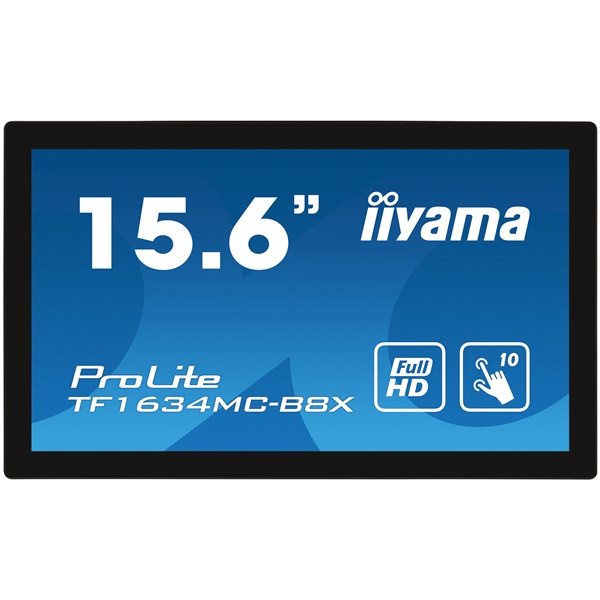

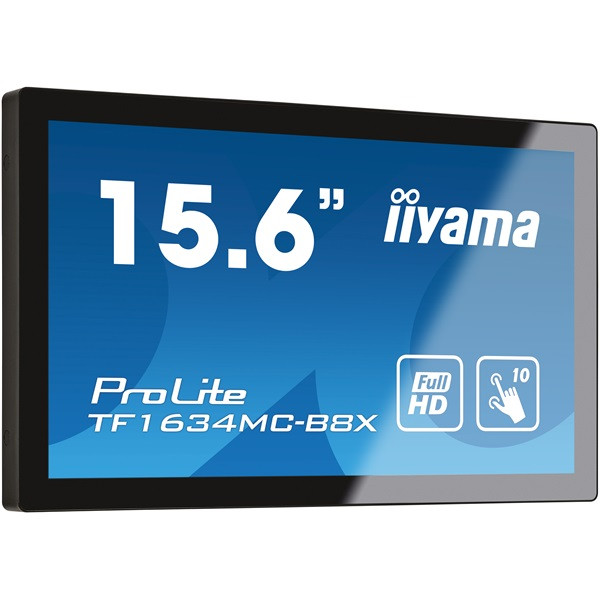

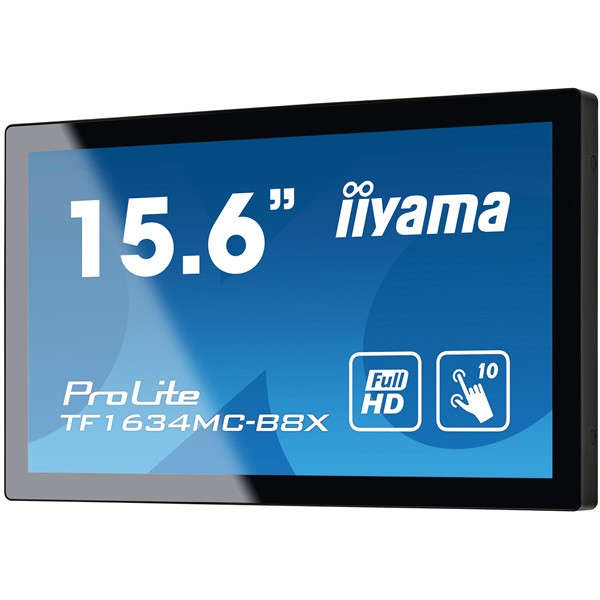

iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC

Name: iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
Brand: IIYAMA
SKU: CS_324545
Price: 339530 HUF
Availability: InStock

Cikkszám:

CS_324545

iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC

iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC

Rendelhető

339 530 Ft

Részletek

DISPLAY CHARACTERISTICS

Design	Edge to edge glass, Open Frame
Diagonal	15.6", 39.5cm
Panel	IPS Panel Technology LED
Native resolution	1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio	16:9
Panel brightness	450 cd/m²
Brightness	405 cd/m² with touch
Light transmittance	90%
Static contrast	700:1 with touch
Response time (GTG)	25ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.2mln (6bit + Hi-FRC)
Horizontal Sync	30 - 84kHz
Viewable area W x H	344.2 x 193.5mm, 13.6 x 7.6"
Pixel pitch	0.179mm
Bezel colour and finish	black, matte

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

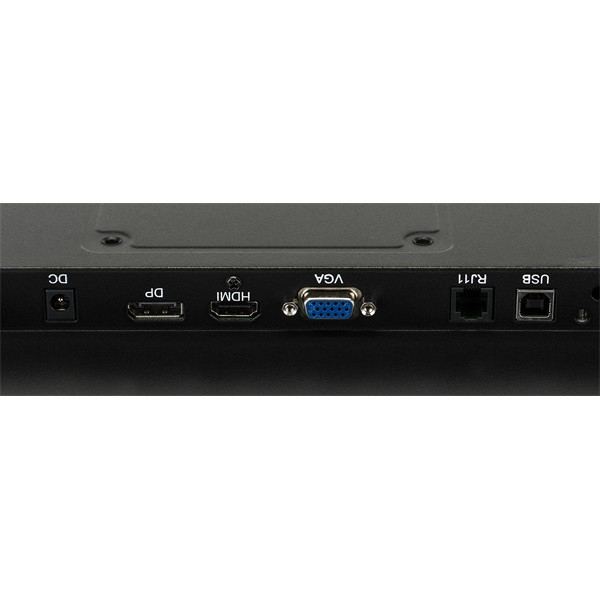

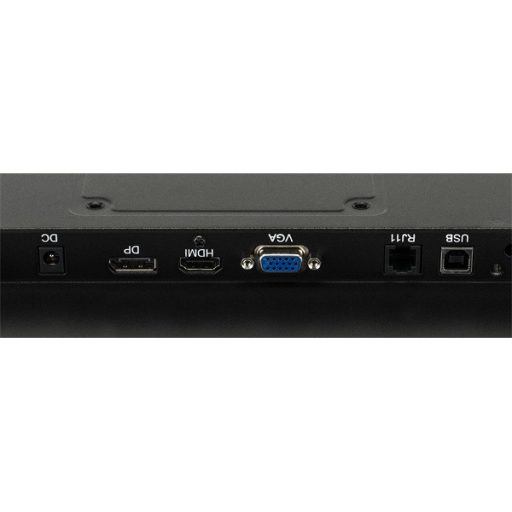

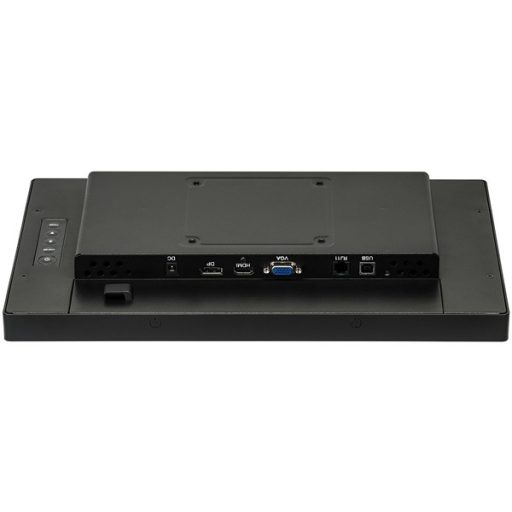

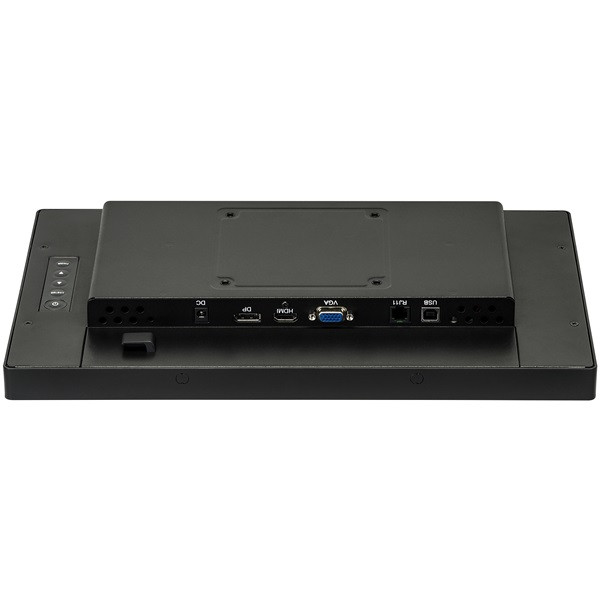

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating, touch through-glass
Glass thickness	2.4mm
Glass hardness	7H
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP

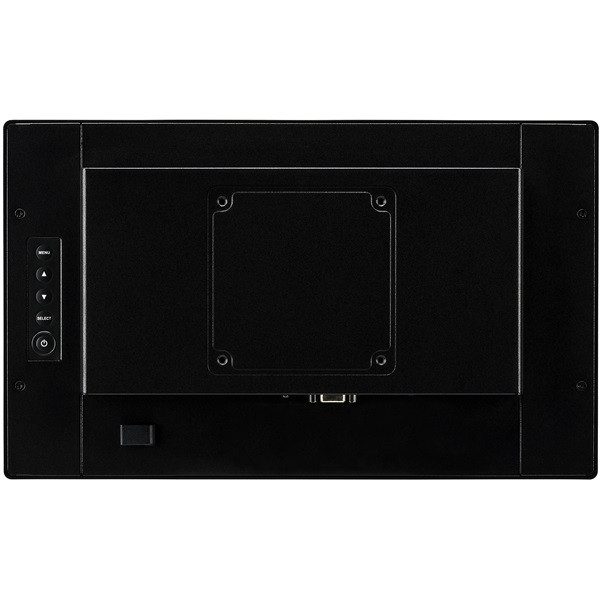

Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape

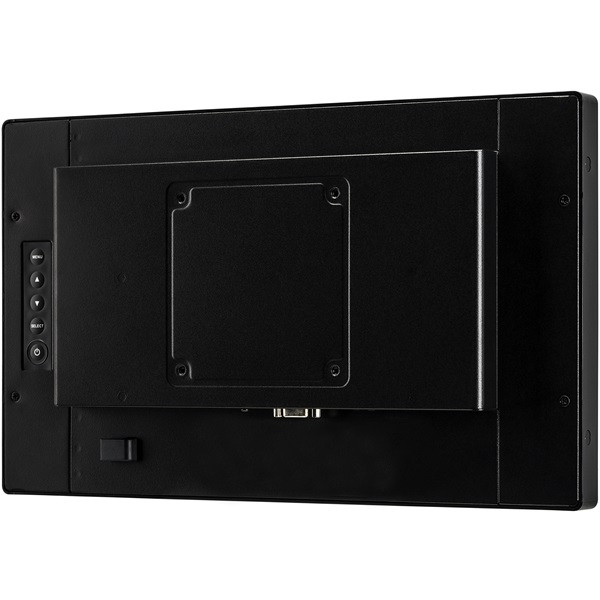

VESA mounting	100 x 100mm

ACCESSORIES INCLUDED

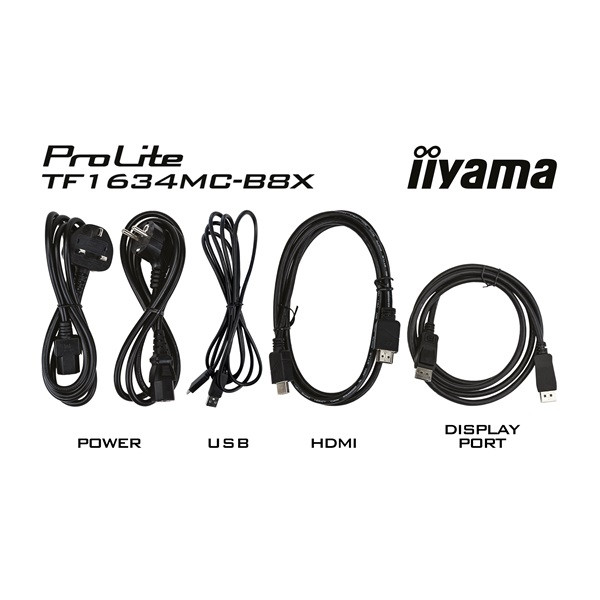

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	18W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	F
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	381 x 230.5 x 46mm
Box dimensions W x H x D	455 x 365 x 290mm
Pallet volume	78pcs
Pallet dimensions W x H x D	115 x 97 x 204mm
Weight (without box)	2.0kg
Weight (with box)	4kg
EAN code	4948570118342

COMPATIBLE ACCESSORIES

Mounts/stands/brackets

OMK1-1

RELATED INFORMATION

Related products

OMK1-1

Adatok

Gyártó:

IIYAMA

Gyártói cikkszám:

TF1634MC-B8X

Típus:

Touch monitor

Garancia:

36 hónap

Gyártó:

IIYAMA

Felbontás:

1920 x 1080 (FHD1080) 16:9

Képátló:

15,6

Képarány:

16:9

Fali rögzítés:

100x100mm VESA falitartó-támogatás

HDMI:

Van

D-Sub:

Van

Válaszidő:

Panel típus:

IPS

Hangszóró:

Van

Display Port:

Van

USB:

Van

Beépített tápegység:

Nincs

Tömeg:

5,5 kg/db
