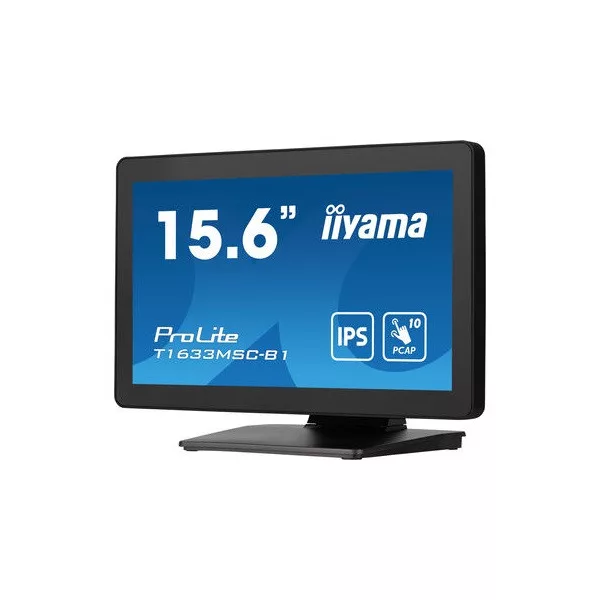

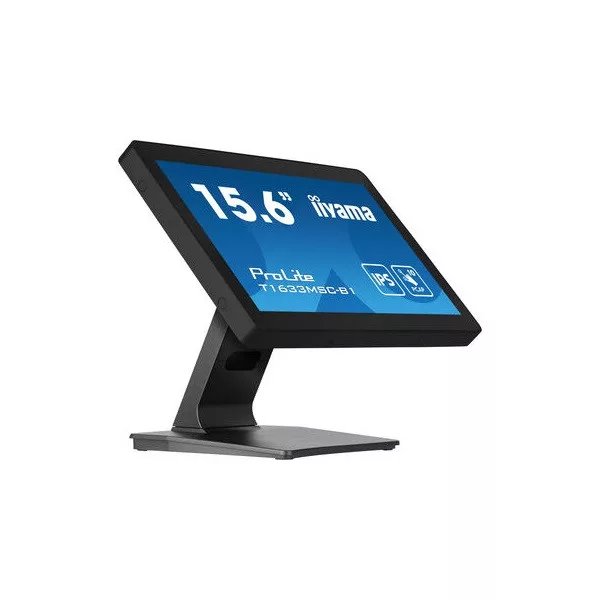

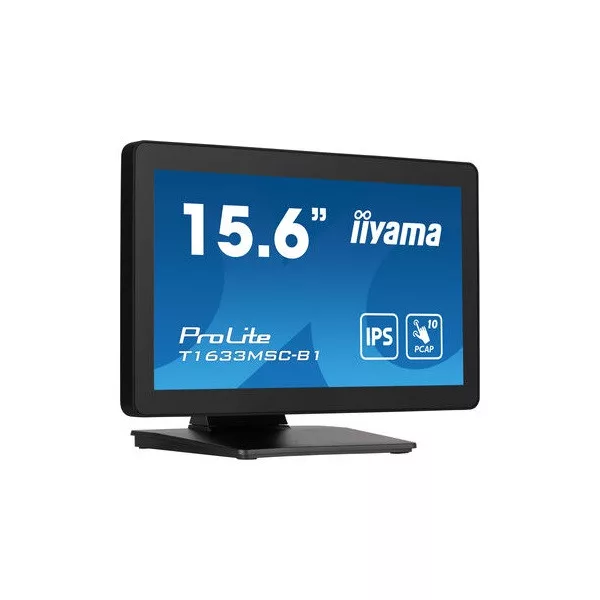

ProLite T1633MSC-B1 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
15.6", 39.5cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 @60Hz (2.0 megapixel) |
| Aspect ratio |
16:9 |
| Panel brightness |
450 cd/m² |
| Brightness |
385 cd/m² with touch |
| Light transmittance |
85% |
| Static contrast |
1000:1 |
| Response time (GTG) |
5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln |
| Horizontal Sync |
30 - 68kHz |
| Viewable area W x H |
344.2 x 193.6mm, 13.6 x 7.6" |
| Pixel pitch |
0.179mm |
| Bezel colour and finish |
black, matte |
| Reommended usage |
retail |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio output |
Speakers 2 x 2W |
| HDCP |
yes |
| USB HUB |
x2 (2.0 (DC5V, 500mA)) |
| |
|
| FEATURES |
|
| Water and dust protection |
IP54 (front) |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL |
| Control buttons |
Power, Menu, Volume +, Volume -, Input |
| User controls |
Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information) |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Tilt angle |
90° up; 5° down |
| Fanless design |
yes |
| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| MTBF |
50 000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| Other |
AC adapter |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
external |
| Power supply |
DC 12 V |
| Power usage |
12W typical, 8W stand by, 0.5W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
C |
| Energy efficiency class |
C |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
389 x 284 x 200mm |
| Box dimensions W x H x D |
475 x 343 x 169mm |
| Weight (without box) |
3.4kg |
| Weight (without stand) |
5.3kg |
| EAN code |
4948570122523 |
| |
|
