iiyama touch monitor, 15,6", 1920 x 1080, 16:9, 450cd, 25ms, 1000:1, VGA/HDMI/DP TF1615MC-B1

Cikkszám:
CS_380820
iiyama touch monitor, 15,6", 1920 x 1080, 16:9, 450cd, 25ms, 1000:1, VGA/HDMI/DP TF1615MC-B1
Rendelhető
300 190 Ft
Részletek

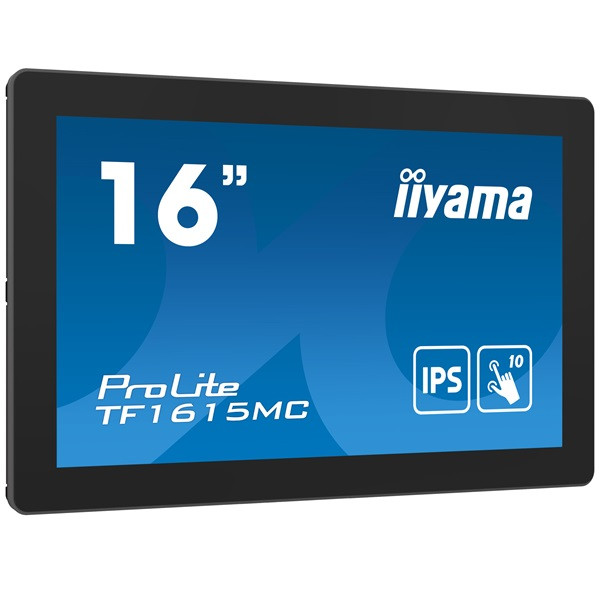

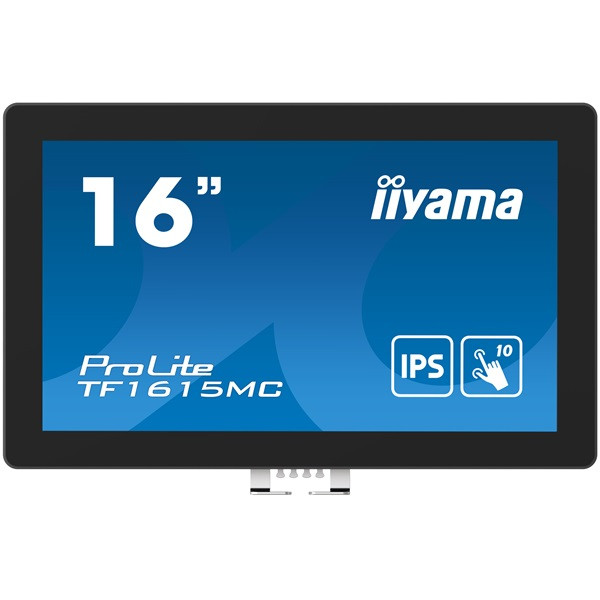

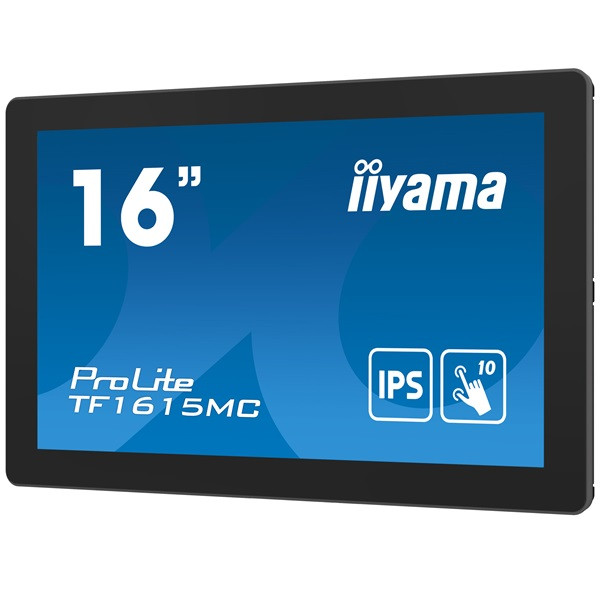

  ProLite TF1615MC-B1

DISPLAY CHARACTERISTICS
Design Open Frame
Diagonal 15.6", 39.5cm
Panel IPS
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 450 cd/m²
Brightness 405 cd/m² with touch
Light transmittance 90%
Static contrast 1000:1
Response time (BTB) 25ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Horizontal Sync 31.5 - 67.5kHz
Viewable area W x H 345.2 x 194.6mm
Pixel pitch 0.17925mm
Bezel colour and finish black

TOUCH
Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm

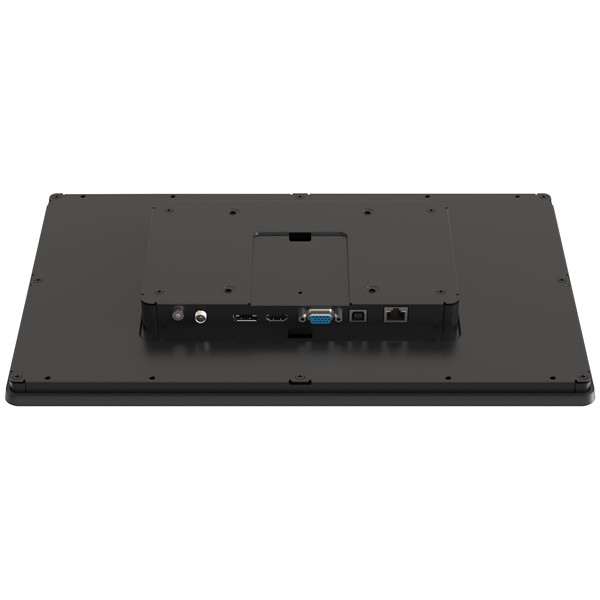

INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
HDCP yes

FEATURES
Extra anti-fingerprint coating, touch through-glass, foam seal
Glass hardness 7H
60950 Ball drop test yes
Water and dust protection IP65 (front)
OSD key lock yes

GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons menu,scroll up/ brightness, scroll down/ contrast, select, power
User controls picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL
Orientation landscape, portrait, face-up

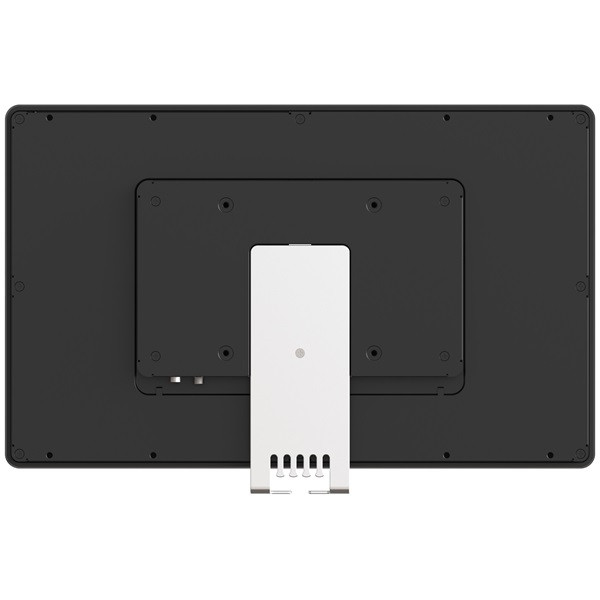

VESA mounting 100 x 100mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50000 hours

ACCESSORIES INCLUDED
Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter, external control pad

POWER MANAGEMENT
Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D 398.5 x 246 x 42mm
Box dimensions W x H x D 470 x 145 x 343mm
Weight (without box) 2.5kg
Weight (with box) 4.3kg
EAN code 4948570121793
Adatok
Gyártó:
IIYAMA
Gyártói cikkszám:
TF1615MC-B1
Típus:
Touch monitor
Szín:
Fekete
Garancia:
36 hónap
Gyártó:
IIYAMA
Felbontás:
1920 x 1080 (FHD1080) 16:9
Képátló:
15,6
Képarány:
16:9
Fali rögzítés:
100x100mm VESA falitartó-támogatás
Kontrasztarány:
1000
Fényerő:
450
HDMI:
Van
D-Sub:
Van
Láthatósági szög:
178/178
Válaszidő:
25
Panel típus:
IPS
Energia hatékonyság:
E
Display Port:
Van
Tömeg:
4,3 kg/db
