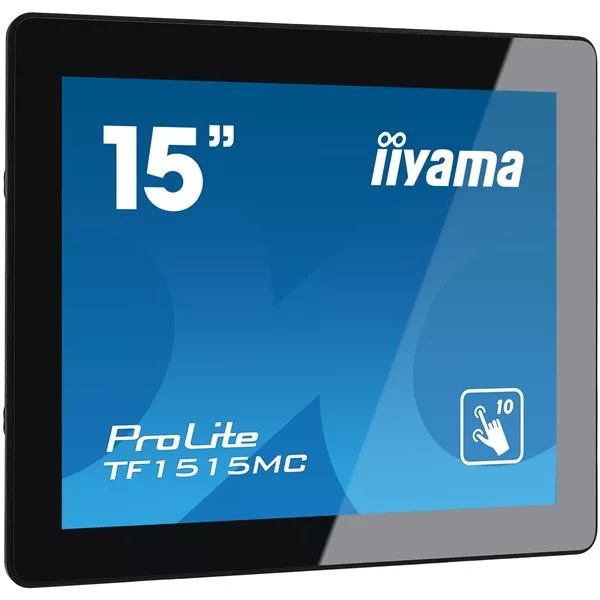

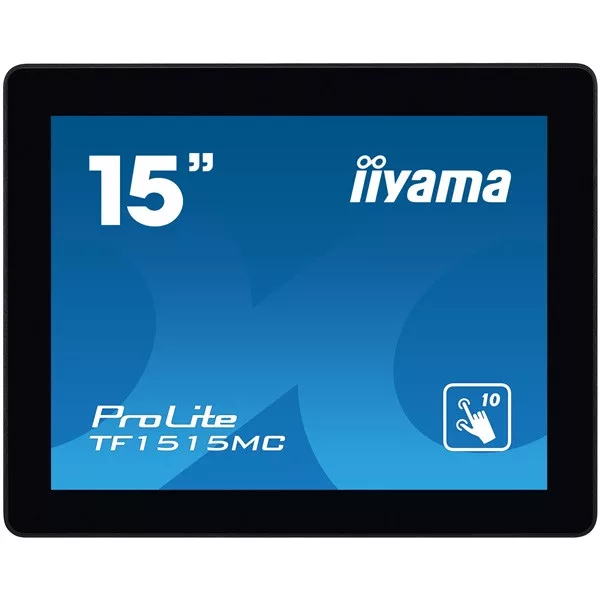

iiyama touch monitor, 15", 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC

iiyama touch monitor, 15", 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC

Name: iiyama touch monitor, 15", 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Brand: IIYAMA
SKU: CS_324551
Price: 269200 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_324551

nettó: 211 969 Ft bruttó: 269 200 Ft

iiyama touch monitor, 15", 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC

Adatok

Gyártó:

IIYAMA

Gyártói cikkszám:

TF1515MC-B2

Típus:

Touch monitor

Garancia:

36 hónap

Felbontás:

1024 x 768 (XGA) 4:3

Képátló:

Képarány:

4:3

Fali rögzítés:

100x100mm VESA falitartó-támogatás

Fényerő:

310

HDMI:

Van

D-Sub:

Van

Válaszidő:

Panel típus:

Display Port:

Van

USB:

Van

Fejhallgató kimenet:

Van

Gyártó:

IIYAMA

Garancia (hónap):

Termék gyártója:

IIYAMA

Tömeg:

4,5 kg/db

Részletek

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	15", 38cm
Panel	TN LED
Native resolution	1024 x 768 (0.8 megapixel)
Aspect ratio	4:3
Panel brightness	350 cd/m²
Brightness	315 cd/m² with touch
Light transmittance	90%
Static contrast	800:1 with touch
Response time (BTB)	8ms
Viewing zone	horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°
Colour support	16.2mln (6bit + Hi-FRC)
Horizontal Sync	31.4 - 60kHz
Viewable area W x H	304.1 x 228.1mm, 12 x 9"
Pixel pitch	0.297mm
Bezel colour and finish	black

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	stylus, finger, glove (latex)
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm

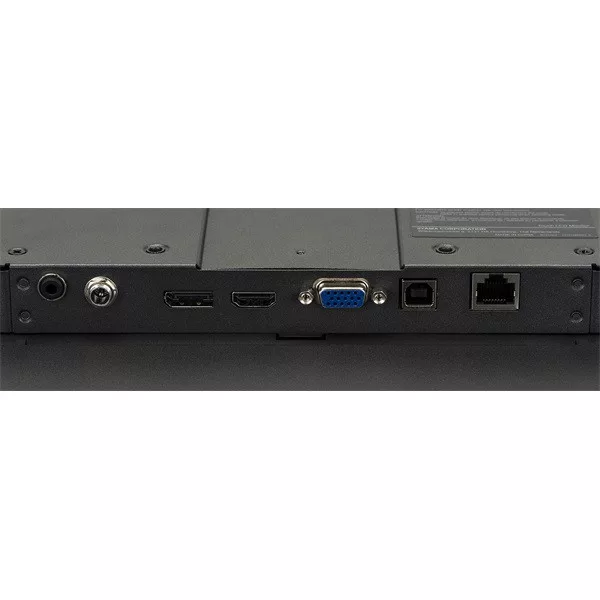

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
Audio output	Mini jack x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating, touch through-glass, foam seal
Glass hardness	7H
60950 Ball drop test	yes
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	menu,scroll up/ brightness, scroll down/ contrast, select, power
User controls	picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up

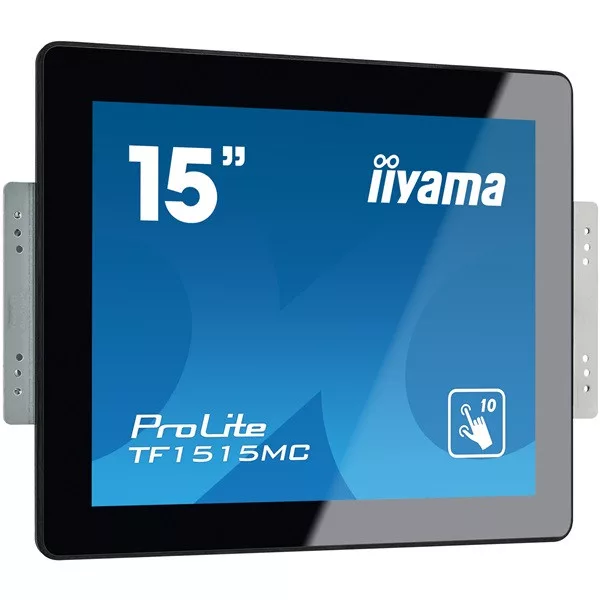

VESA mounting	100 x 100mm
Operation temperature range	0°C - 40°C
Storage temperature range	- 20°C - 60°C

ACCESSORIES INCLUDED

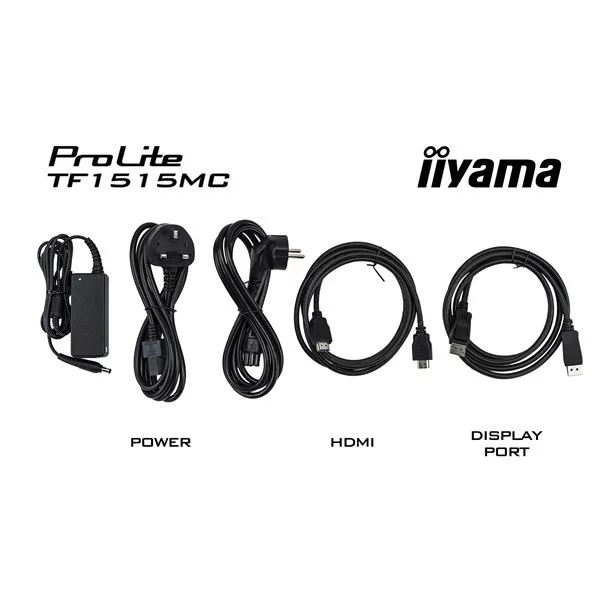

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad

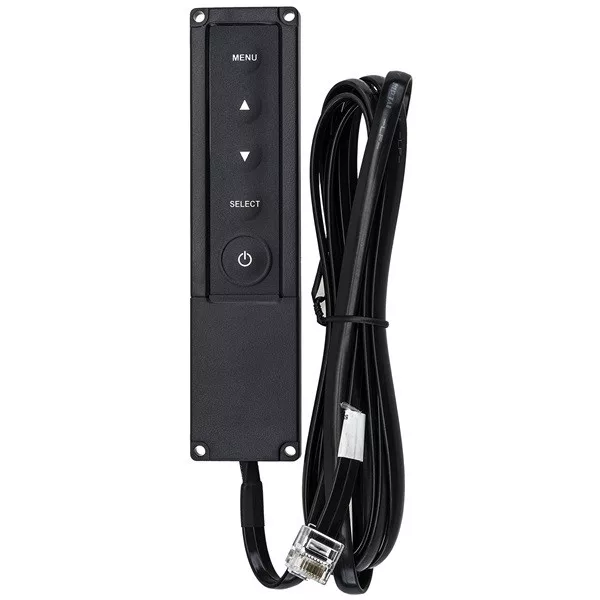

Remote control	external control pad

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	16W typical, 1.2W stand by

SUSTAINABILITY

Regulations	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	E
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D	364 x 291 x 41.5mm
Box dimensions W x H x D	460 x 470 x 175mm
Pallet volume	44pcs
Pallet dimensions W x H x D	860 x 970 x 120mm
Weight (without box)	2.9kg
Weight (with box)	4.6kg
EAN code	4948570116751
