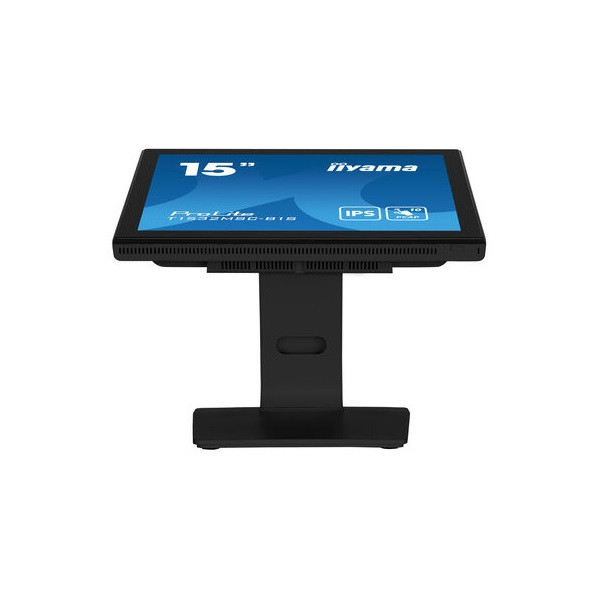

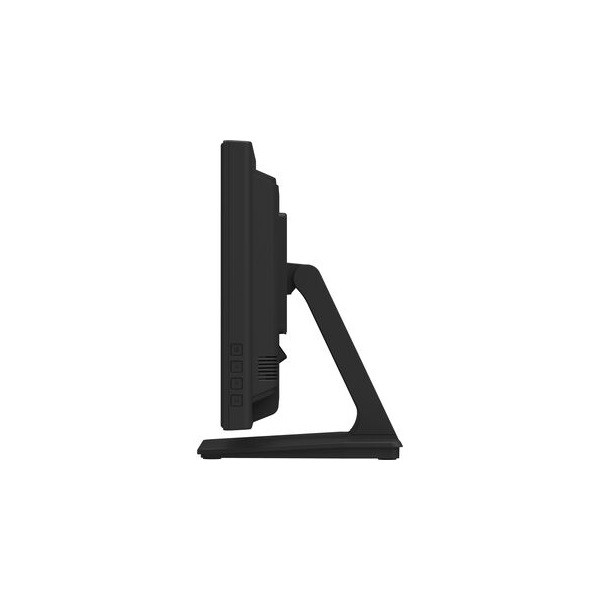

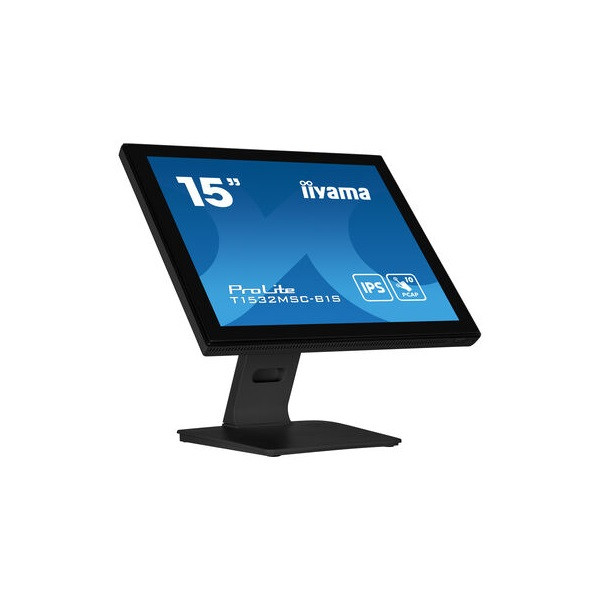

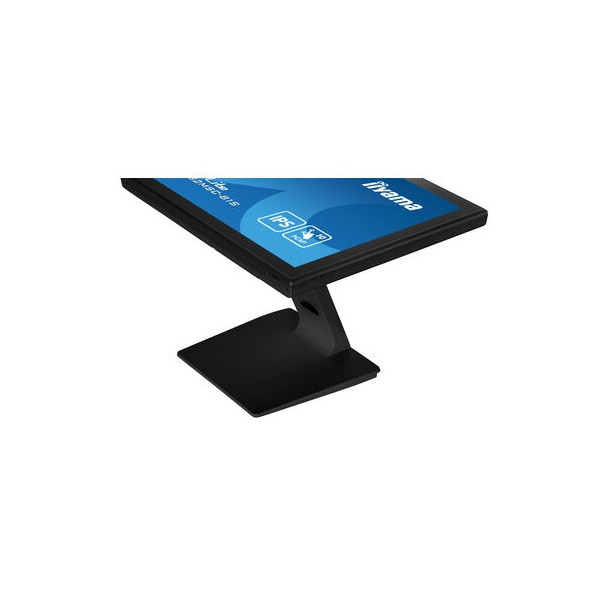

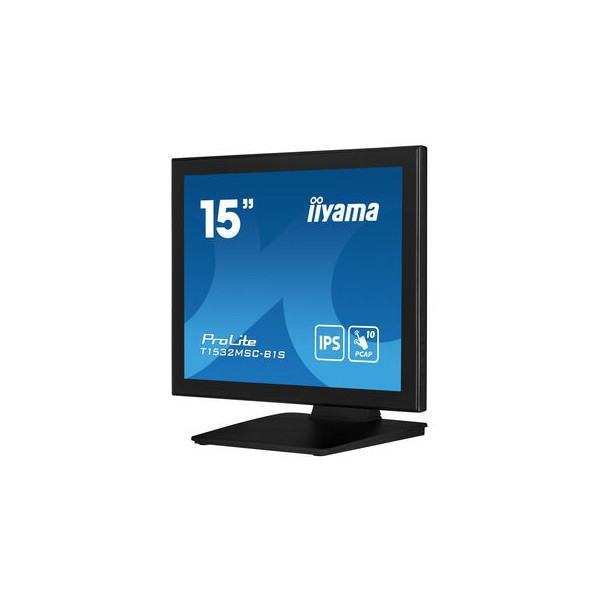

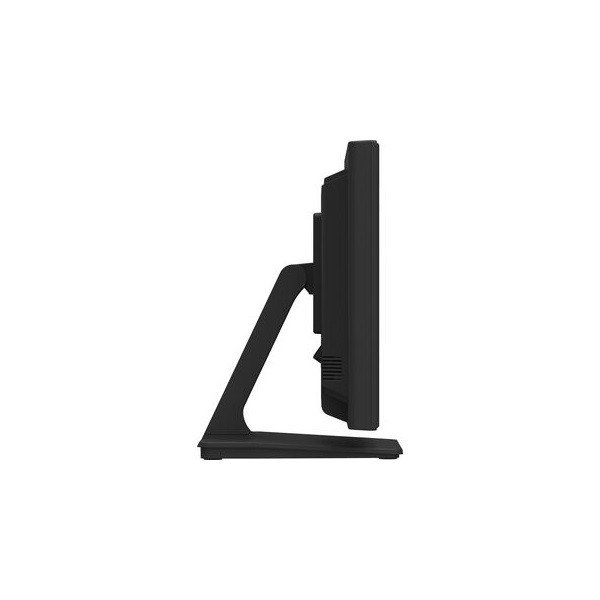

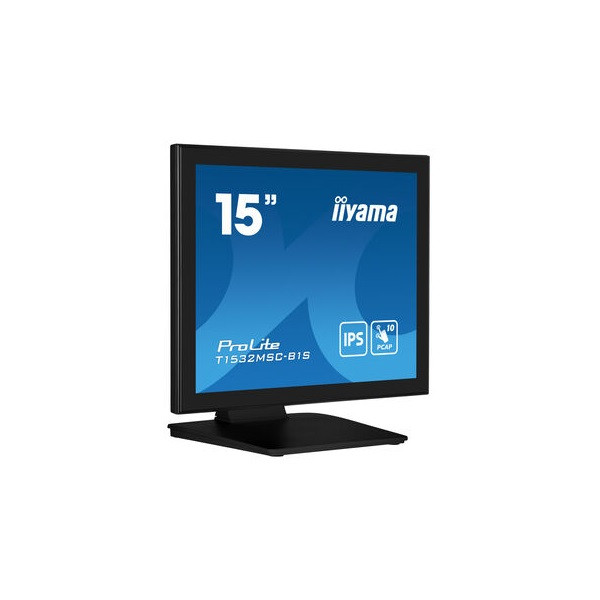

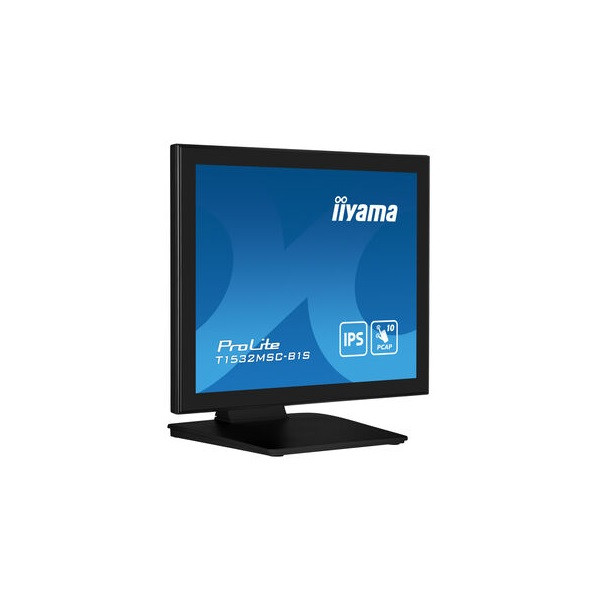

ProLite T1532MSC-B1S |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
15", 38cm |
| Panel |
TN |
| Native resolution |
1024 x 768 (0.8 megapixel) |
| Aspect ratio |
4:3 |
| Panel brightness |
350 cd/m² |
| Brightness |
315 cd/m² with touch |
| Light transmittance |
90% |
| Static contrast |
800:1 |
| Response time (BTB) |
8ms |
| Viewing zone |
horizontal/vertical: 176°/176°, right/left: 88°/88°, up/down: 88°/88° |
| Horizontal Sync |
31 - 60kHz |
| Viewable area W x H |
304.1 x 228.1mm |
| Pixel pitch |
0.297mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio output |
Speakers 2 x 1W |
| HDCP |
yes |
| |
|
| FEATURES |
|
| Water and dust protection |
IP54 (front) |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, JP |
| Control buttons |
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| User controls |
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory) |
| Convenience |
Kensington-lock™ prepared |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Tilt angle |
90° up; 5° down |

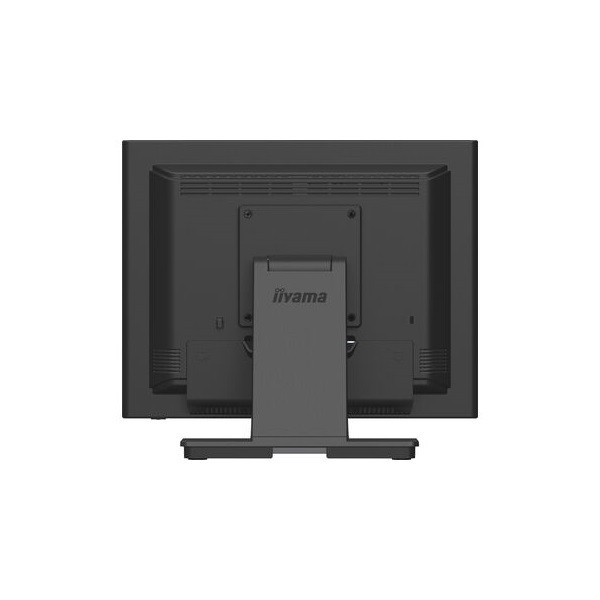

| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, Audio, DP |
| Guides |
quick start guide, safety guide |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
16W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
351 x 306.5 x 200mm |
| Weight (without box) |
3.7kg |
| EAN code |
4948570122097 |
| |
|
