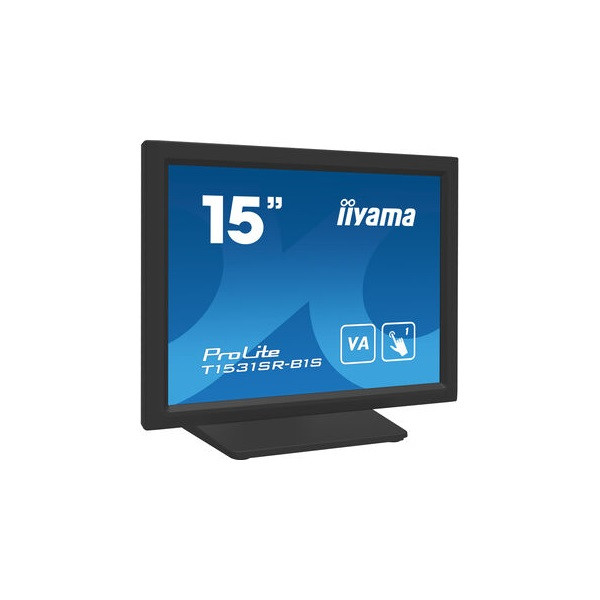

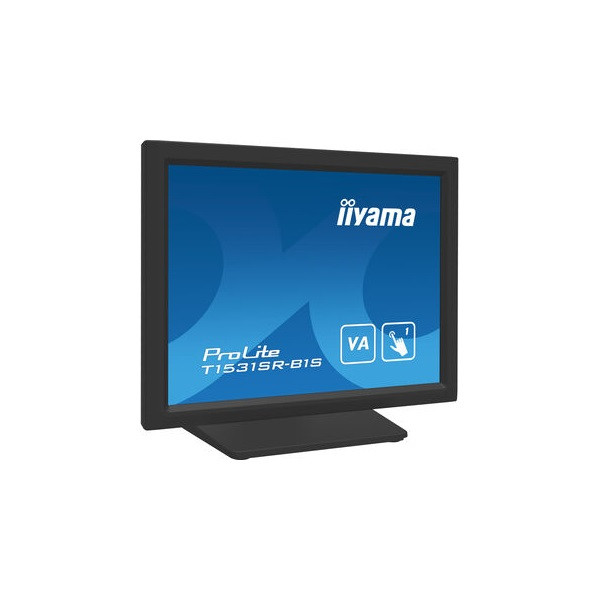

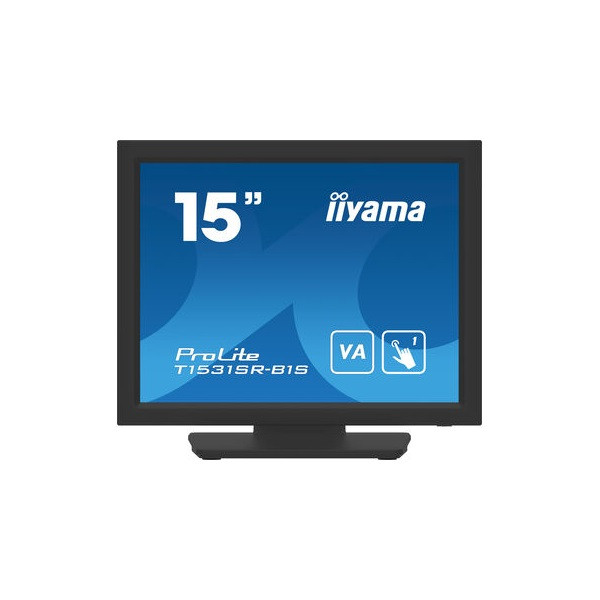

ProLite T1531SR-B1S |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Diagonal |
15", 38cm |
| Panel |
VA |
| Native resolution |
1024 x 768 (0.8 megapixel) |
| Aspect ratio |
4:3 |
| Panel brightness |
350 cd/m² |
| Brightness |
280 cd/m² with touch |
| Light transmittance |
80% |
| Static contrast |
2500:1 |
| Response time (BTB) |
18ms |
| Viewing zone |
horizontal/vertical: 176°/176°, right/left: 88°/88°, up/down: 88°/88° |
| Horizontal Sync |
31.5 - 60.kHz |
| Viewable area W x H |
304 x 228mm |
| Pixel pitch |
0.297mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
serial resistive |
| Touch points |
1 |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio input |
Mini jack x1 |
| Audio output |
Speakers 2 x 1W |
| HDCP |
yes |
| |
|
| FEATURES |
|
| Water and dust protection |
IP54 (front) |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, JP |
| Control buttons |
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| User controls |
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, mute, factory) |
| Convenience |
Kensington-lock™ prepared |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Tilt angle |
90° up; 5° down |
| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, Audio, DP |
| Guides |
quick start guide, safety guide |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
16W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
351 x 306.5 x 200mm |
| Weight (without box) |
4.1kg |
| EAN code |
4948570122073 |
| |
|
