iiyama touch monitor, 12", 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC

Name: iiyama touch monitor, 12", 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
Brand: IIYAMA
SKU: CS_324553
Price: 293430 HUF
Availability: InStock

Cikkszám:

CS_324553

iiyama touch monitor, 12", 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC

iiyama touch monitor, 12", 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC

Rendelhető

293 430 Ft

Részletek

DISPLAY CHARACTERISTICS

Design	Open Frame
Diagonal	12.1", 31cm
Panel	IPS Technology
Native resolution	1024 x 768 (0.8 megapixel)
Aspect ratio	4:3
Panel brightness	540 cd/m²
Brightness	450 cd/m² with touch
Light transmittance	85%
Static contrast	1000:1
Response time (BTB)	25ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.2mln (6bit + Hi-FRC)
Horizontal Sync	31.4 - 60kHz
Viewable area W x H	245.8 x 184.3mm, 9.7 x 7.2"
Pixel pitch	0.24mm
Bezel colour and finish	black

TOUCH

Touch technology	projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	finger, glove (latex), capacitive stylus
Touch interface	USB
Supported operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass	6mm
Palm rejection	yes

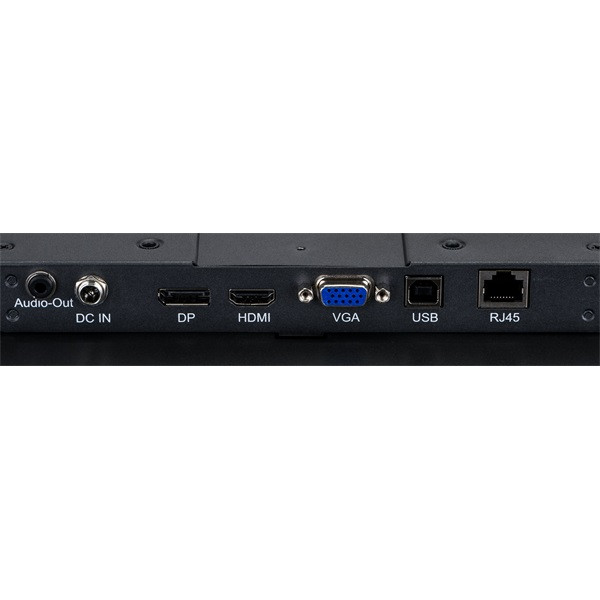

INTERFACES / CONNECTORS / CONTROLS

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1
Audio output	Mini jack x1
HDCP	yes

FEATURES

Extra	anti-fingerprint coating, touch through-glass
Glass thickness	3.15mm
Glass hardness	7H
60950 Ball drop test	yes
Water and dust protection	IP65 (front)
OSD key lock	yes

GENERAL

OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

MECHANICAL

Orientation	landscape, portrait, face-up

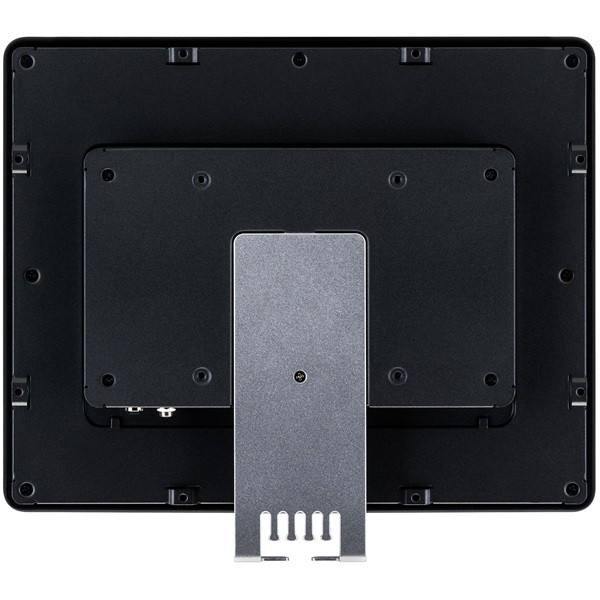

VESA mounting	100 x 100mm
Operation temperature range (-°/+°)	-20°C - 60°C
Storage temperature range	- 20°C - 60°C

ACCESSORIES INCLUDED

Cables	power, USB, HDMI, DP
Guides	quick start guide, safety guide
Other	AC adapter, external control pad
Remote control	external control pad

POWER MANAGEMENT

Power supply unit	external
Power supply	DC 12 V
Power usage	10W typical, 0.55W stand by, 0.5W off mode

SUSTAINABILITY

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)	F

DIMENSIONS / WEIGHT

Product dimensions W x H x D	308.5 x 248 x 41.5mm
Box dimensions W x H x D	435 x 355 x 165mm
Weight (without box)	2.1kg
Weight (with box)	3.9kg
EAN code	4948570118007

COMPATIBLE ACCESSORIES

Mounts/stands/brackets

OMK3-1

RELATED INFORMATION

Related products

OMK3-1

Adatok

Gyártó:

IIYAMA

Gyártói cikkszám:

TF1215MC-B1

Típus:

Touch monitor

Garancia:

36 hónap

Gyártó:

IIYAMA

Felbontás:

1024 x 768 (XGA) 4:3

Képátló:

Képarány:

4:3

Fali rögzítés:

100x100mm VESA falitartó-támogatás

Fényerő:

450

HDMI:

Van

D-Sub:

Van

Válaszidő:

Panel típus:

IPS

Display Port:

Van

USB:

Van

Beépített tápegység:

Nincs

Fejhallgató kimenet:

Van

Tömeg:

4 kg/db

iiyama touch monitor, 12", 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC
