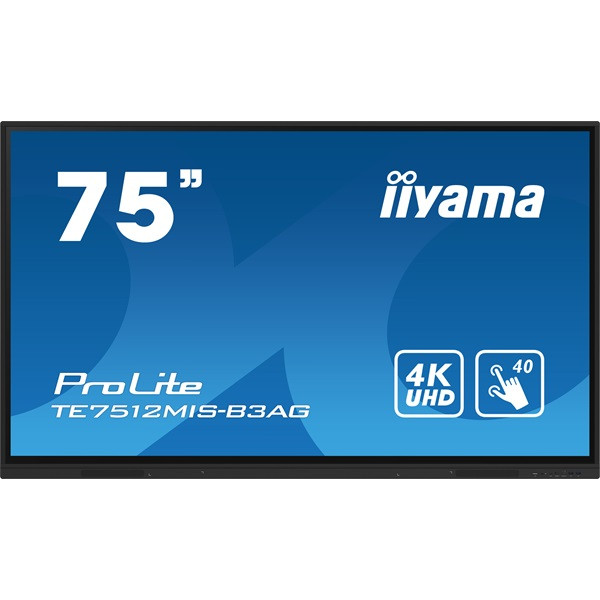

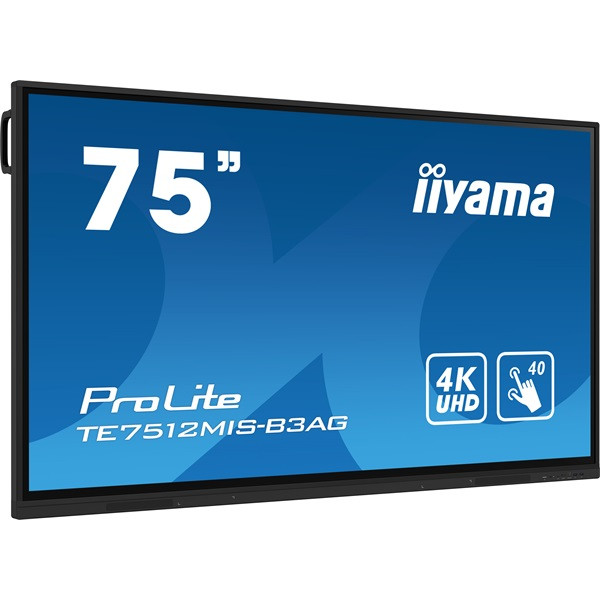

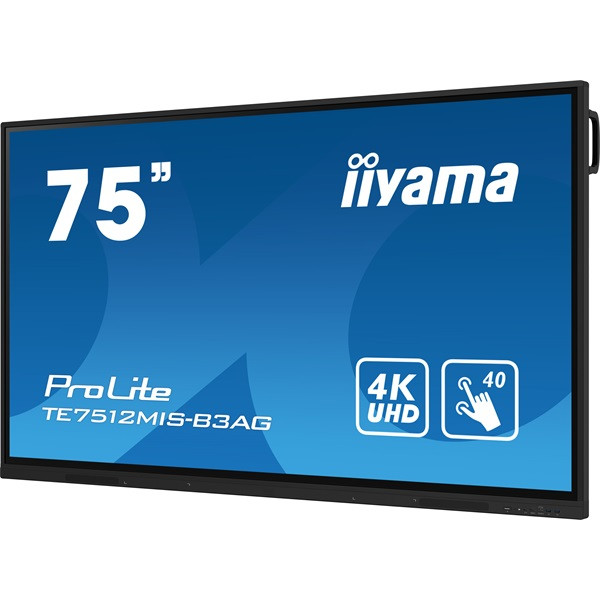

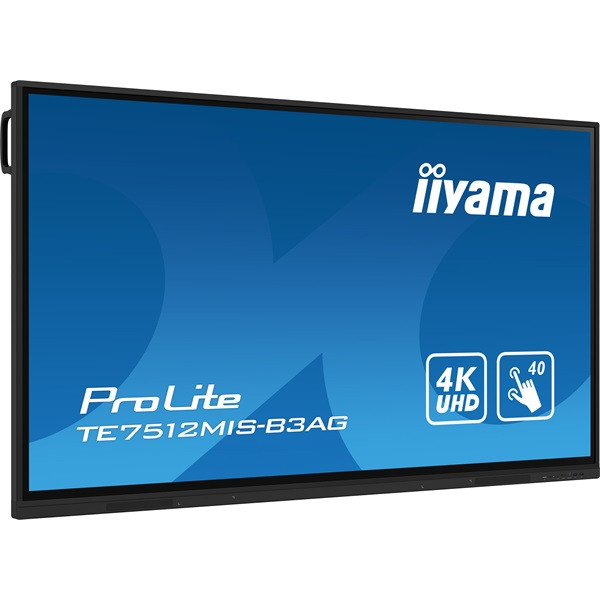

ProLite TE7512MIS-B3AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
75", 189.3cm |
| Panel |
IPS |
| Touch Glass |
AG coated glass, zero air-gap |
| Panel |
IPS |
| Native resolution |
3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
400 cd/m² |
| Brightness |
350 cd/m² with touch |
| Light transmittance |
92% |
| Static contrast |
1200:1 |
| Dynamic contrast |
4000:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Colour support |
1.07B 8bit+FRC |
| Horizontal Sync |
30 - 135kHz |
| Viewable area W x H |
1650 x 928mm, 65 x 36.5" |
| Bezel width (sides, top, bottom) |
16.5mm, 16.5mm, 45mm |
| Pixel pitch |
0.4296mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
PureTouch-IR |
| Touch points |
40, 5pt writing (HID, only with supported OS) |
| Touch accuracy |
+- 1.5mm |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| |
|

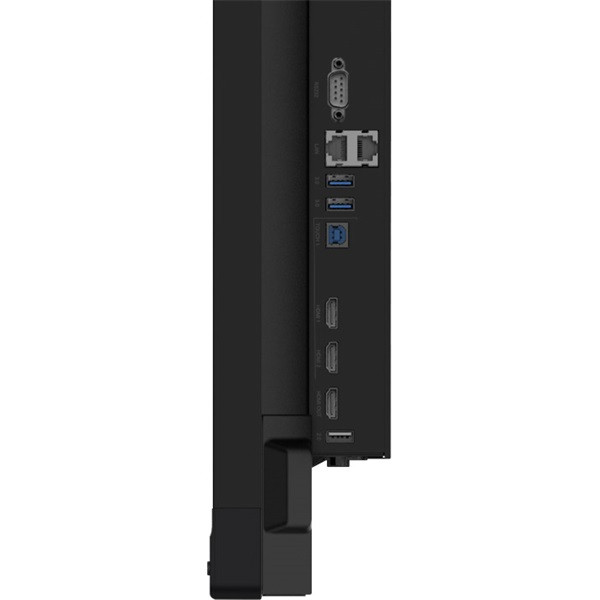

| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 (max. 1920x1080 @60Hz) |
| Digital signal input |
HDMI x3 (v.2.0, max. 3840x2160 @60Hz, YUV444)
USB-C x1 (v.3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz - RGB444 - (65W charging, Touch) |
| Audio input |
Mini jack x1 |
| Monitor control input |
RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
IR x1 |
| Digital signal output |
HDMI x1 (3840x2160 @60Hz) |
| Audio output |
S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W (Front) |
| HDCP |
HDMI 1: 2.1, USB-C: 2.2 |
| USB ports |
x5 (media playback / peripherals / storage – front side: 2x v.3.2 (Gen 1, 5Gbit), 1x USB-C v.3.2 (Gen 1, 5Gbit, 65W PD), right side: 2x v.3.2 (Gen 1, 5Gbit)) |
| RJ45 (LAN) |
x2 (Auto switch for PC & Android, 1000MB) |
| |
|
| FEATURES |
|
| Integrated software |
iiWare 10 (Android OS 11) featuring iiyama DMS, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices |
| WiFi |
yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0) |
| Hardware |
CPU: A55*4, GPU: Mali G52, RAM: 8GB, ROM: 64GB |
| Extra |
WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen |
| Kiosk mode |
yes |
| Max. non-stop operating time |
24/7 |
| Media playback |
yes |
| Glass thickness |
3mm |
| Glass hardness |
7H |
| Housing (bezel) |
metal |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Power, Power Indicator, Remote Sensor, Light Sensor |
| User controls |
general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| |
|
| MECHANICAL |
|
| Orientation |
landscape |
| Fanless design |
yes |

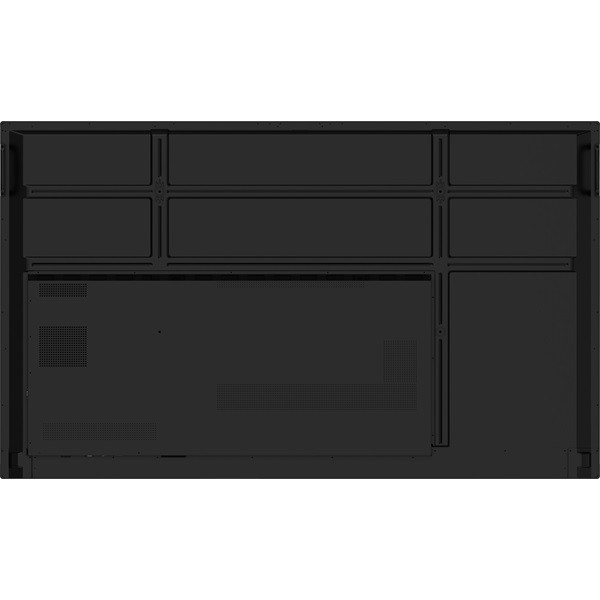

| VESA mounting |
800 x 400mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - %2°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Touch pen |
x4 (Dual function tips) |
| Guides |
quick start guide, safety guide |
| Other |
WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC AC - 100V, 240/V, 50Hz |
| Power usage |
125W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0 |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
1709.5 x 1020 x 88mm |
| Box dimensions W x H x D |
1863 x 1140 x 225mm |
| Weight (without box) |
47.3kg |
| Weight (with box) |
60.6kg |
| EAN code |
4948570123704 |
