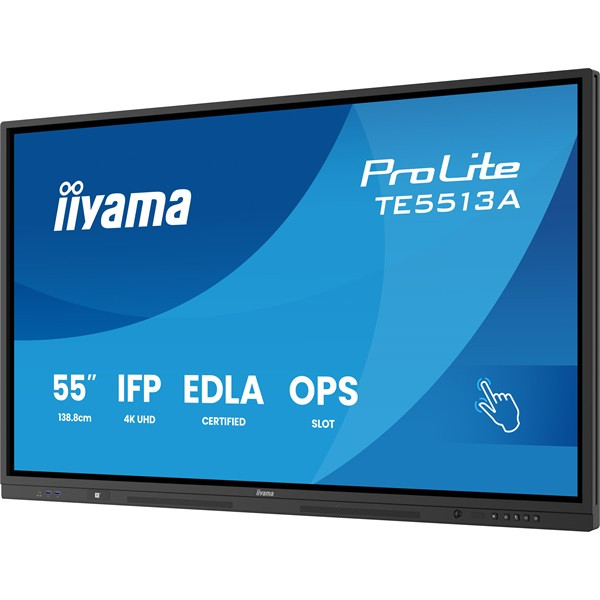

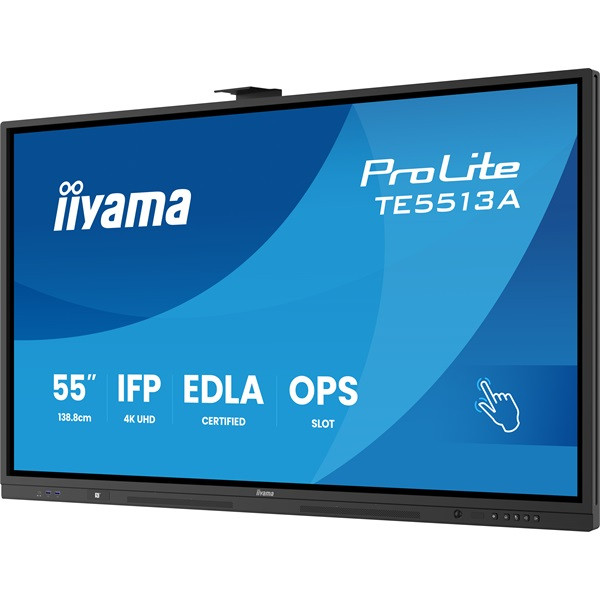

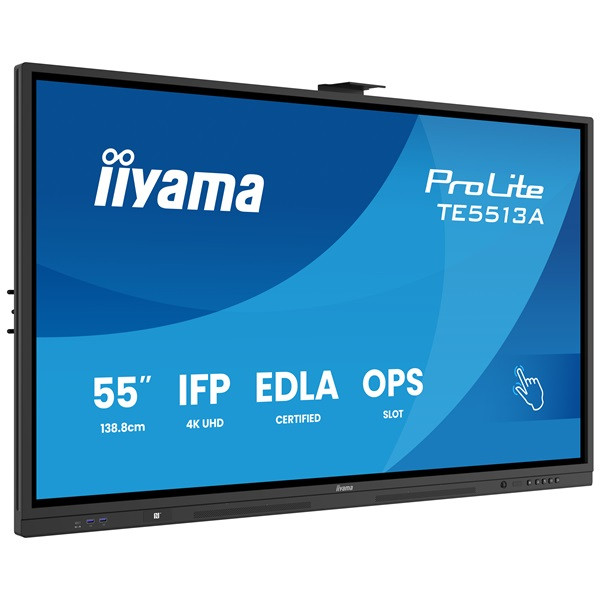

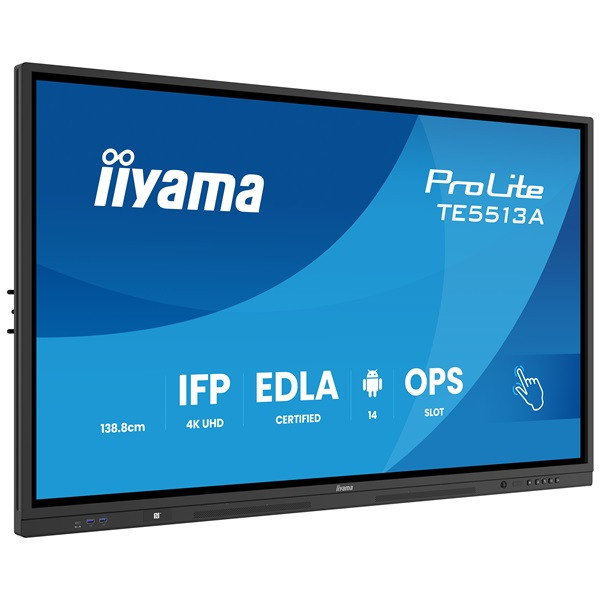

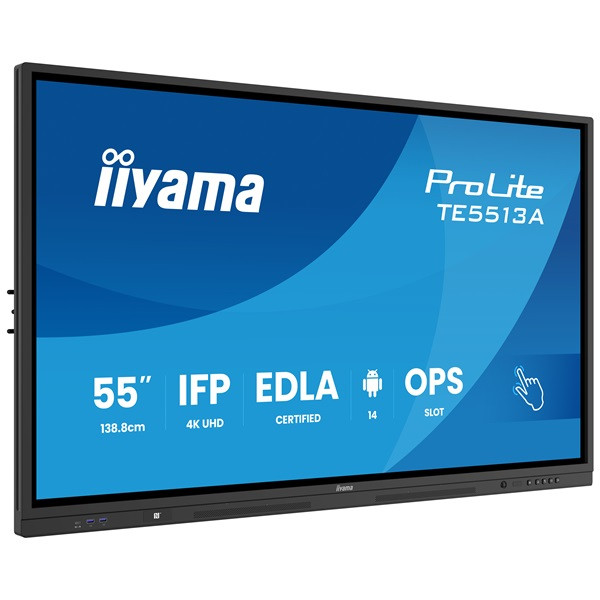

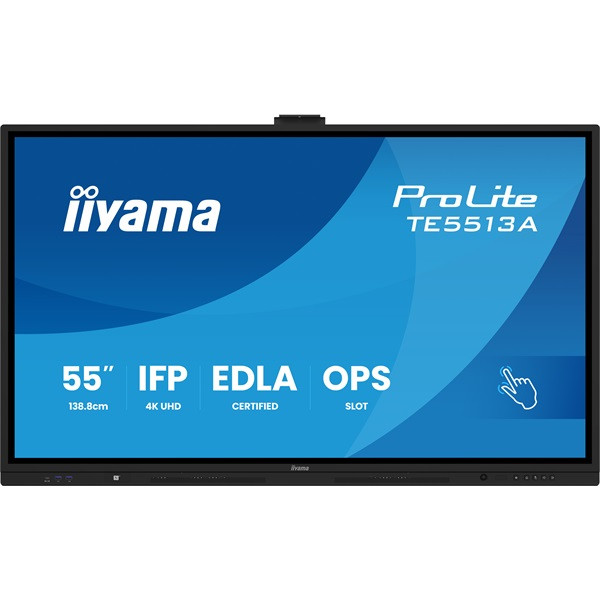

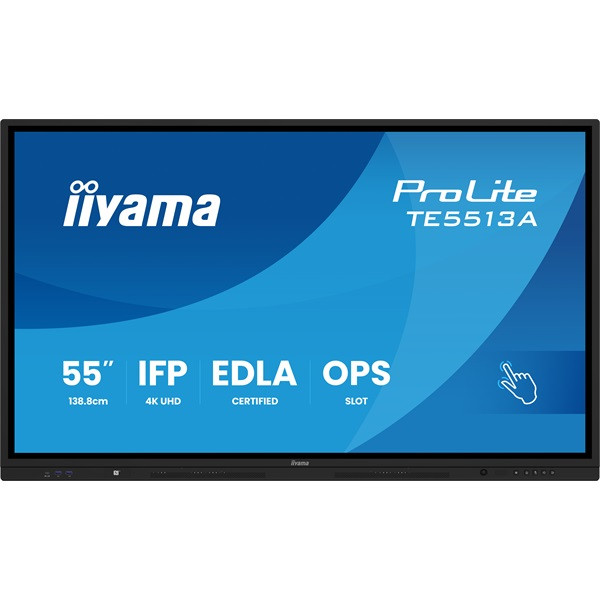

ProLite TE5513A-B1AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
54.6", 138.8cm |
| Panel |
IPS |
| Touch Glass |
Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding |
| Panel |
IPS |
| Native resolution |
3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
450 cd/m² |
| Light transmittance |
88% |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync |
30 - 135kHz |
| Viewable area W x H |
1210 x 680mm |
| Pixel pitch |
0.315mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
PureTouch-IR? |
| Touch points |
40, 10pt writing (HID, only with supported OS, 32pt Touch with Android) |
| Scan rate |
200Hz |
| Touch accuracy |
+- 1mm |
| Touch method |
stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz (RGB444), DP 1.2 Alt mode, 100W PD (1x front (network sharing 100M, 1x side), Data, Touch) |
| Audio input |
Mini jack x1 (Microphone) |
| Monitor control input |
RS-232c x1 (DSUB 9pin) |
| Digital signal output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, MSD (Multi-Screen Display)) |
| Audio output |
S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer) |
| Monitor control output |
OPS Slot x1 (Intel OPS 80pin) |
| HDCP |
2,3 |
| USB ports |
x5 (media playback / peripherals / storage – front side: 2x 3.2 (Gen 1, 5Gbit,), 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), side: 1x 3.2 (Gen 1, 5Gbit, 1x USB-C v.3.2 (Gen 1, 5Gbit, 100W PD)) |
| RJ45 (LAN) |
x2 (IN / OUT, Auto switch for PC & Android, 1000MB) |
| |
|
| FEATURES |
|
| Integrated software |
iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices |
| WiFi |
yes (WiFi-6, Bluetooth 5.0) |
| Hardware |
CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB |
| Extra |
Ambiant light Sensor, NFC Reader, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen (anti-bacterial coating) |
| Media playback |
yes |
| Glass thickness |
3.2mm |
| Glass hardness |
7H |
| Housing (bezel) |
metal |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Power, Home, Touch-freeze, Volume, Input (source) |
| User controls |
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Blue light reducer |
yes |
| Flicker free |
yes |
| Plug&Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| |
|
| MECHANICAL |
|
| Orientation |
landscape |
| Fanless design |
yes |
| VESA mounting |
400 x 400mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power (EU 3m, UK 3m), USB (3m), HDMI (3m) |
| Touch pen |
x4 (Dual function tips, anti-bacterial coating) |
| Guides |
quick start guide, safety guide |
| Other |

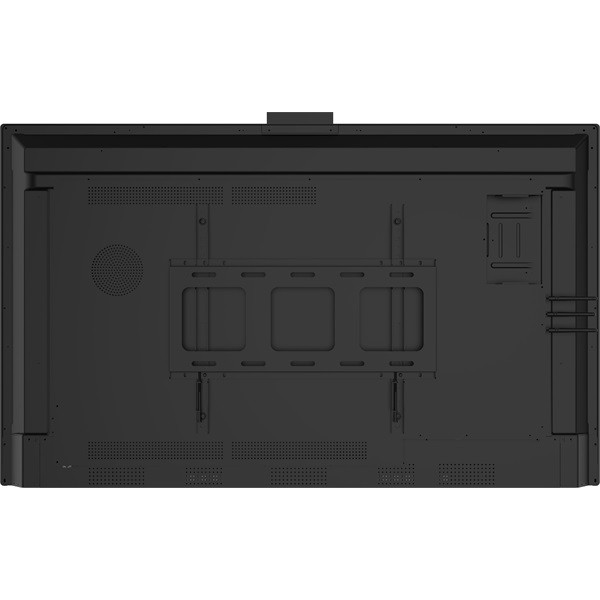

Wall Mounting Bracket (VESA 400x400), Webcam Mounting Bracket |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
125W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS) |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
1267 x 765.4 x 86mm |
| Box dimensions W x H x D |
1385 x 865 x 185mm |
| Weight (without box) |
28.7kg |
| Weight (with box) |
34.8kg |
| EAN code |
4948570124794 |
| |
|
