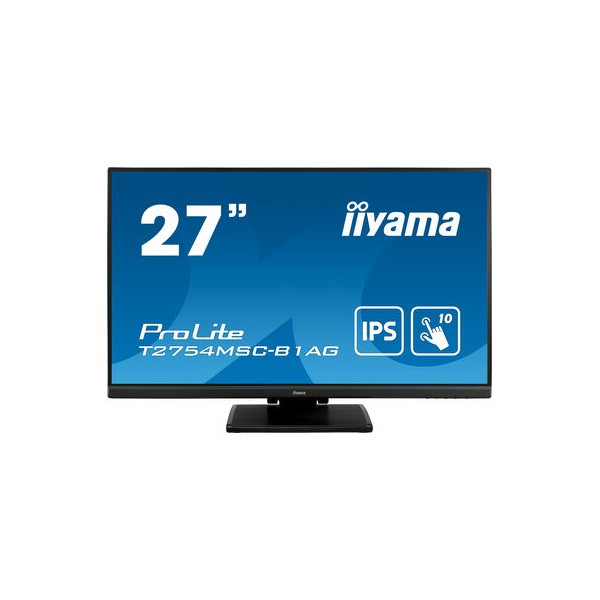

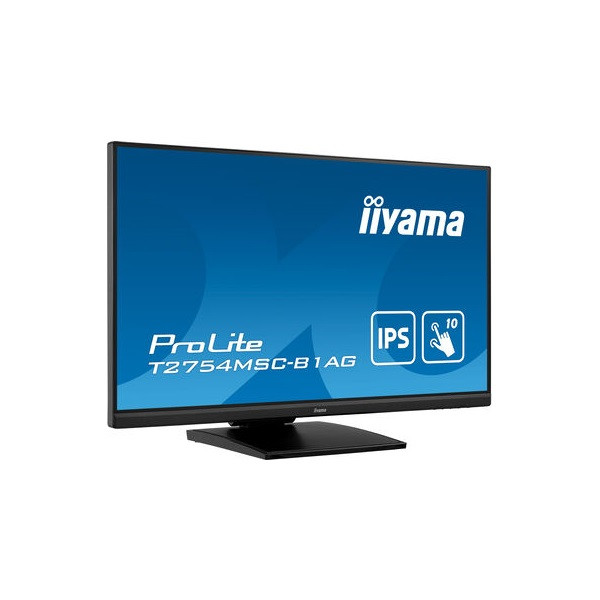

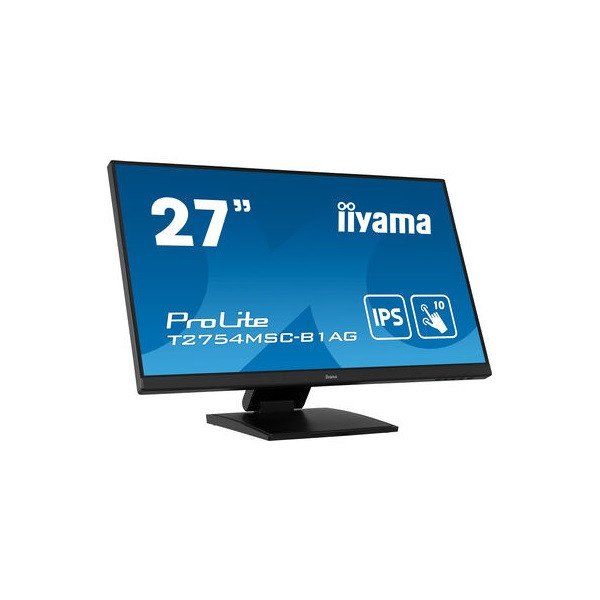

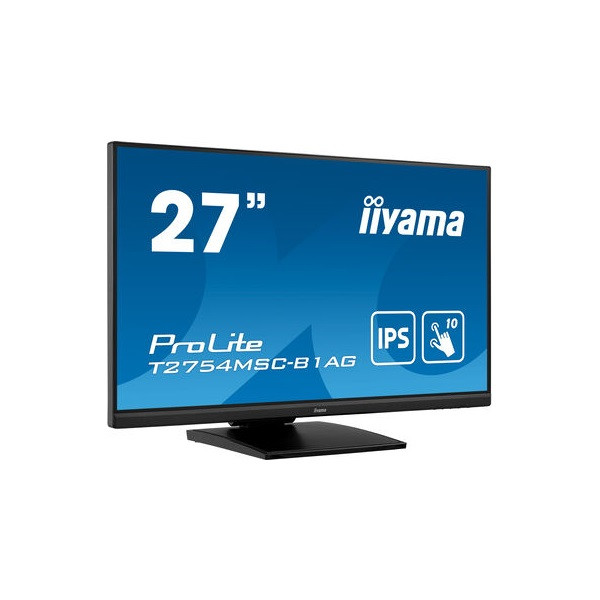

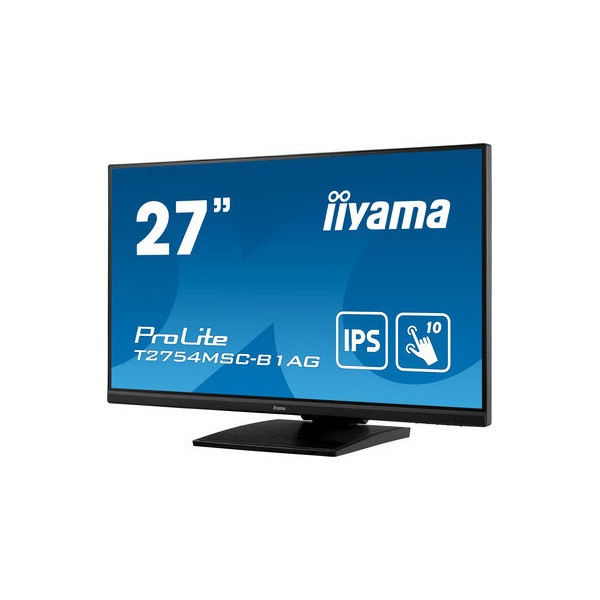

ProLite T2754MSC-B1AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Ultra thin bezel |
| Diagonal |
27", 68.6cm |
| Panel |
IPS LED, AG surface finish |
| Native resolution |
1920 x 1080 @60Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
300 cd/m² |
| Static contrast |
1000:1 |
| Advanced contrast |
80M:1 |
| Response time (GTG) |
4ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln 8bit |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
597.89 x 336.31mm, 23.5 x 13.2" |
| Pixel pitch |
0.311mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch accuracy |
+- 2mm |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1 |
| Audio output |
Mini jack x1
Speakers 2 x 2W |
| HDCP |
yes |
| USB HUB |
x1 (v.3.2 (Gen 1, 5Gbit)) |
| |
|
| FEATURES |
|
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Power, Menu, + / Volume, - / Eco, Select / Exit |
| User controls |
Picture adjust (brightness, contrast, Eco, i-Style Color, adv. contrast), Geometry (pixel clock, phase, horizontal position, vertical position, aspect), Color settings (gamma, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language, auto power off, touch wake up), Extra (reset, signal select, audio input, opening logo, LED, Overdrive, Information, volume, auto adjust) |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Flicker free |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Height adjustment |
297,5mm |

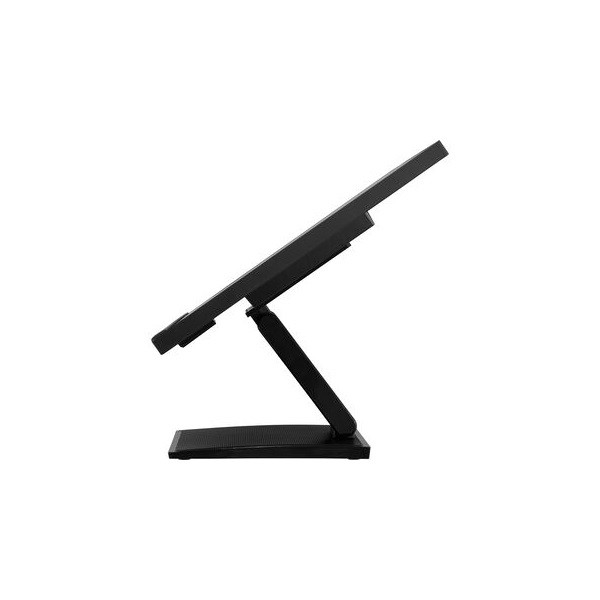

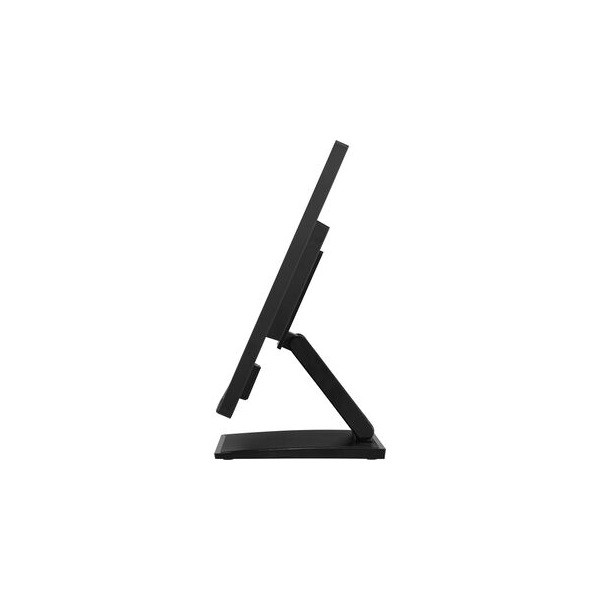

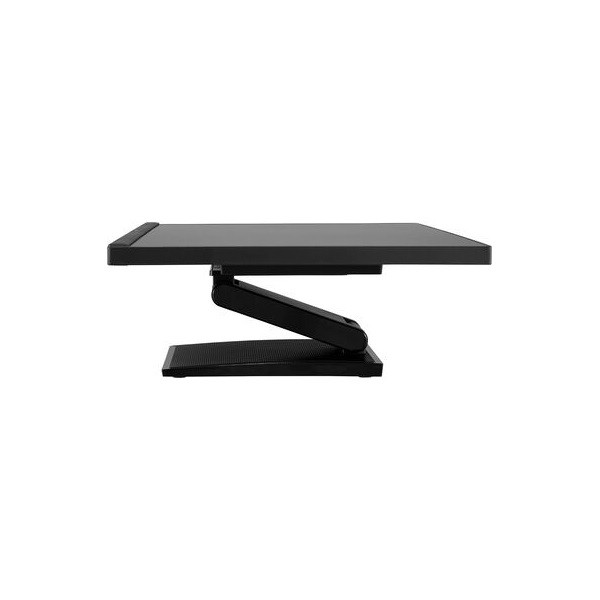

| Tilt angle |
5° up; 90° down |

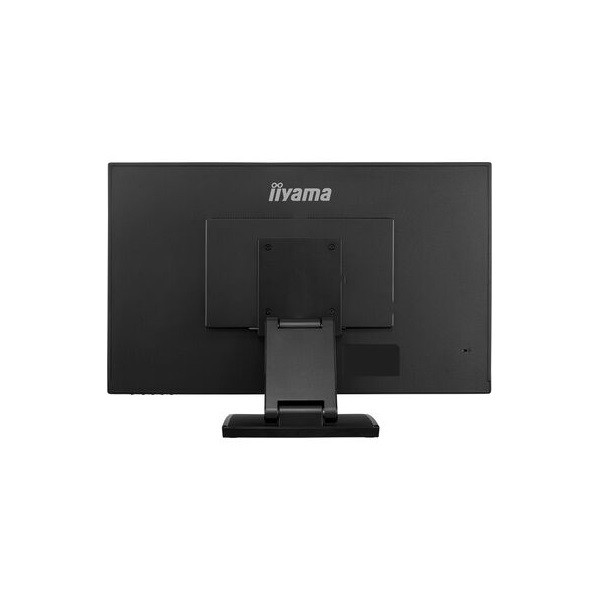

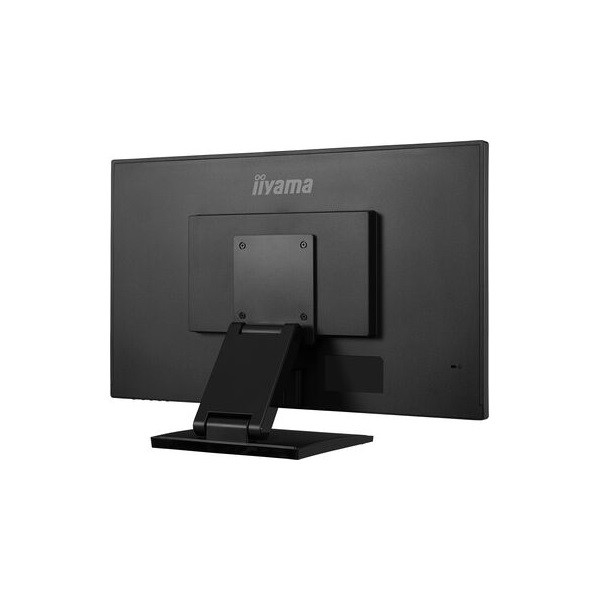

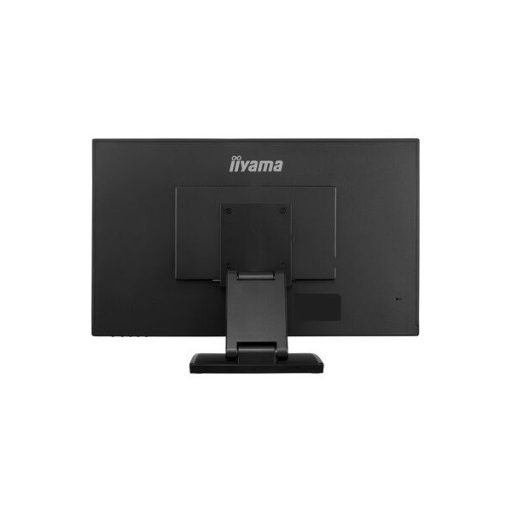

| VESA mounting |
100 x 100mm |
| MTBF |
50000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
external |
| Power supply |
DC 19 V |
| Power usage |
27W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
F |
| Energy efficiency class |
A |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
612 x 418.5 x 121mm |
| Box dimensions W x H x D |
688 x 477 x 204mm |
| Pallet volume |
20pcs |
| Pallet dimensions W x H x D |
1246 x 2058 x 698mm |
| Weight (without box) |
6.6kg |
| Weight (with box) |
8.4kg |
| EAN code |
4948570118632 |
