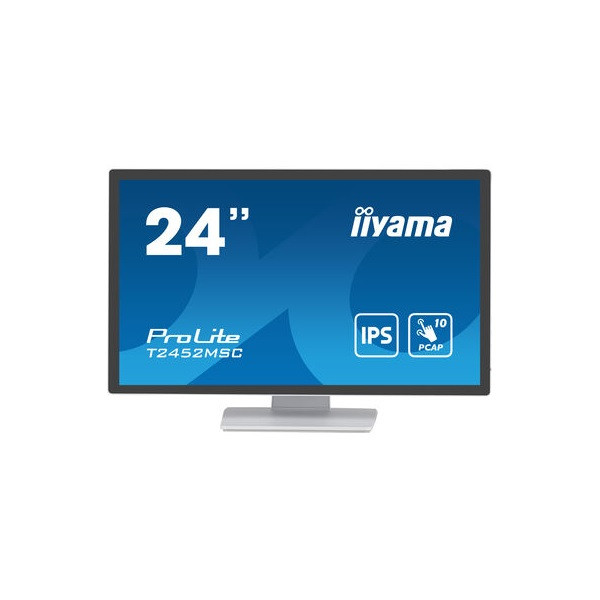

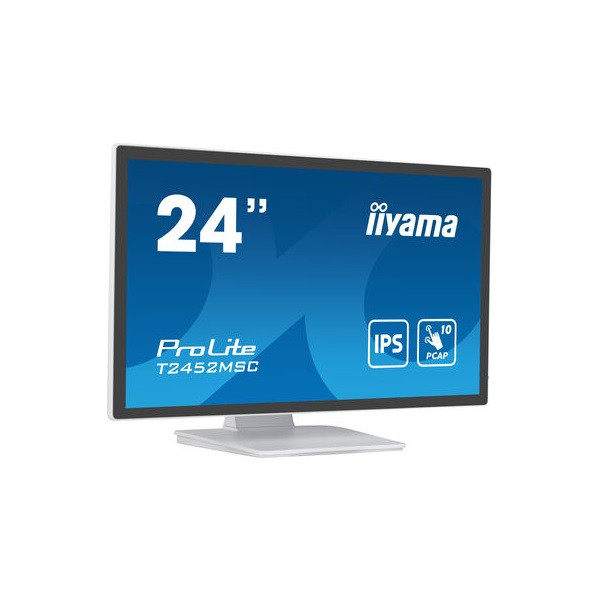

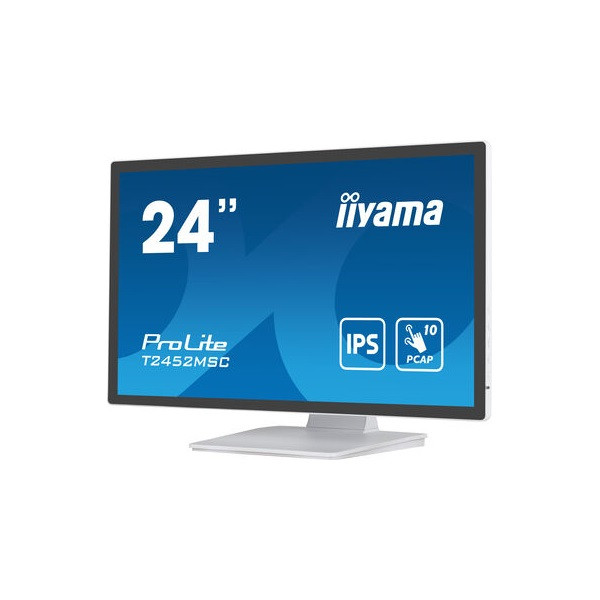

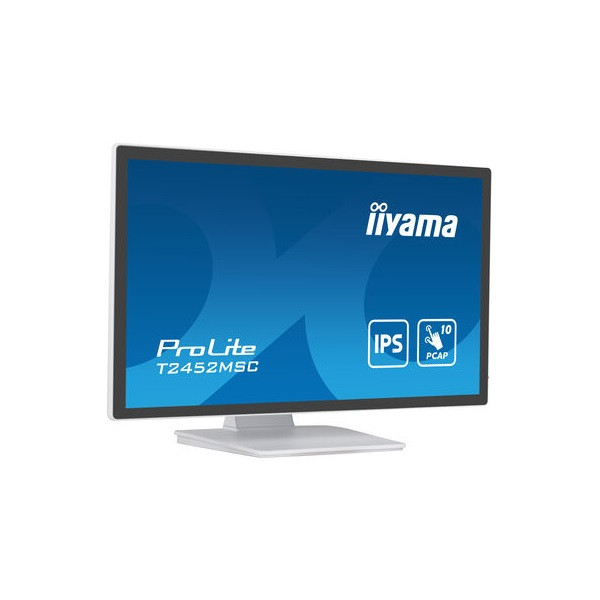

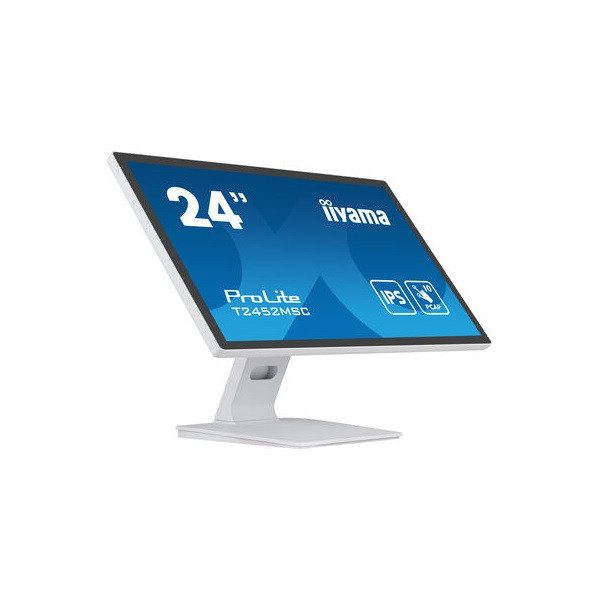

ProLite T2452MSC-W1 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
23.8.", 60.5cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 @60Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
400 cd/m² |
| Brightness |
360 cd/m² with touch |
| Light transmittance |
90% |
| Static contrast |
1000:1 |
| Response time (BTB) |
14ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln 8bit |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
527 x 296.5mm, 20.7 x 11.7" |
| Pixel pitch |
0.274mm |
| Bezel colour and finish |
white |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch accuracy |
+- 2mm |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio output |
Mini jack x1
Speakers 2 x 1W |
| USB HUB |
x2 (v.3.2 (Gen 1, 5Gbit)) |
| |
|
| FEATURES |
|
| Extra |
anti-fingerprint coating |
| Glass hardness |
7H |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Menu, scroll up / ECO, scroll down / volume, select / input, power |
| User controls |
Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Flicker free |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|

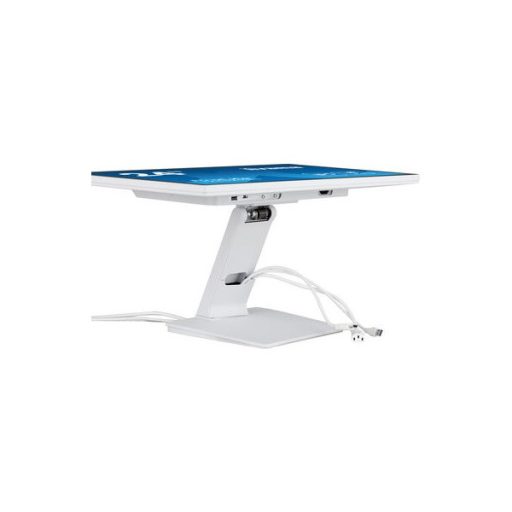

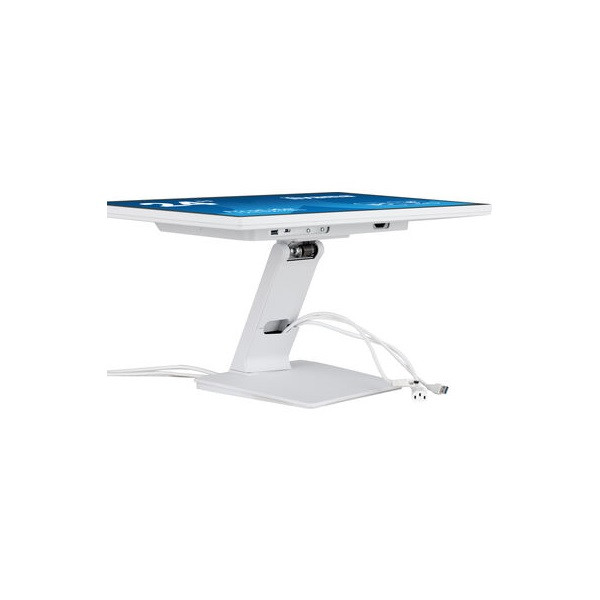

| Tilt angle |
90° up; 5° down |

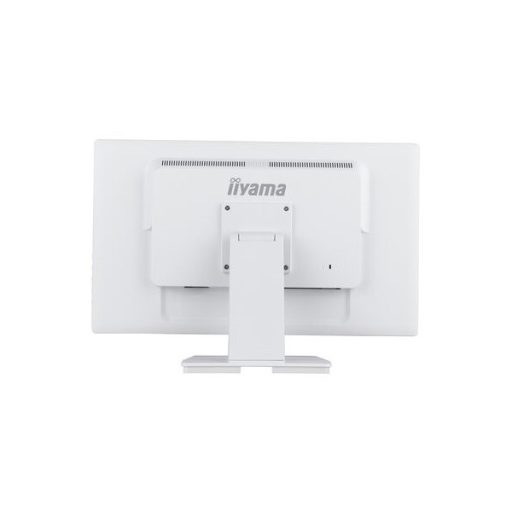

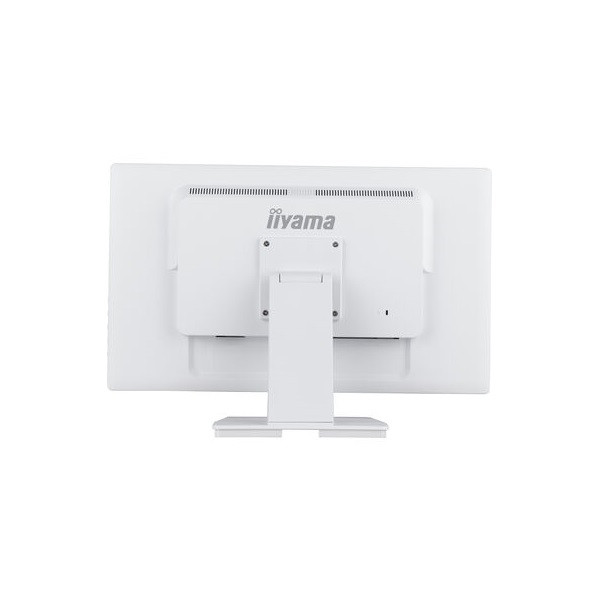

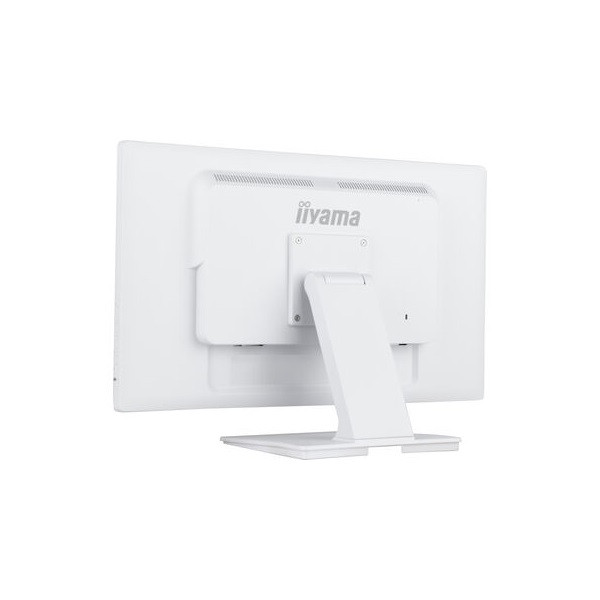

| VESA mounting |
100 x 100mm |
| MTBF |
50000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
18W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
567 x 385 x 253.5mm |
| Box dimensions W x H x D |
635 x 405 x 143mm |
| Weight (without box) |
5.6kg |
| EAN code |
4948570122066 |
| |
|
