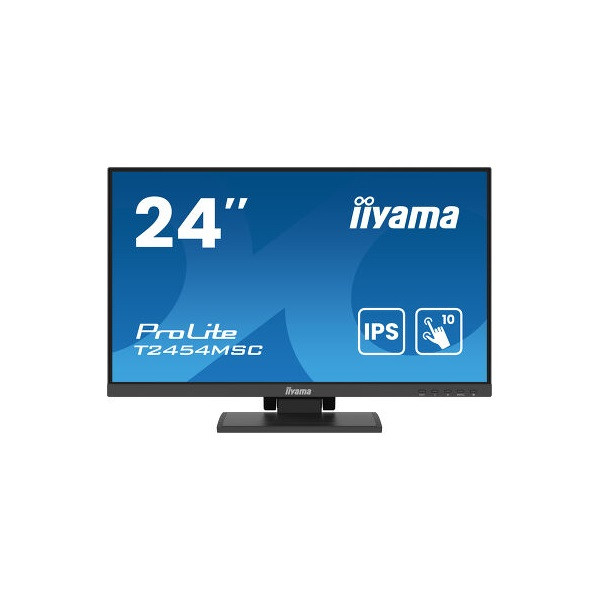

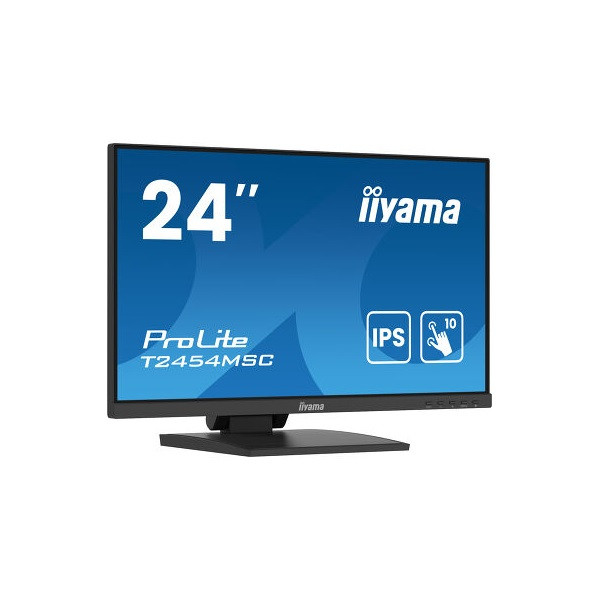

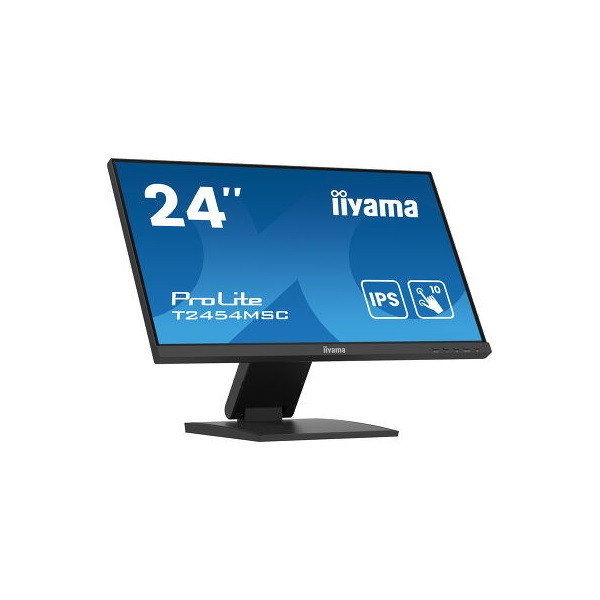

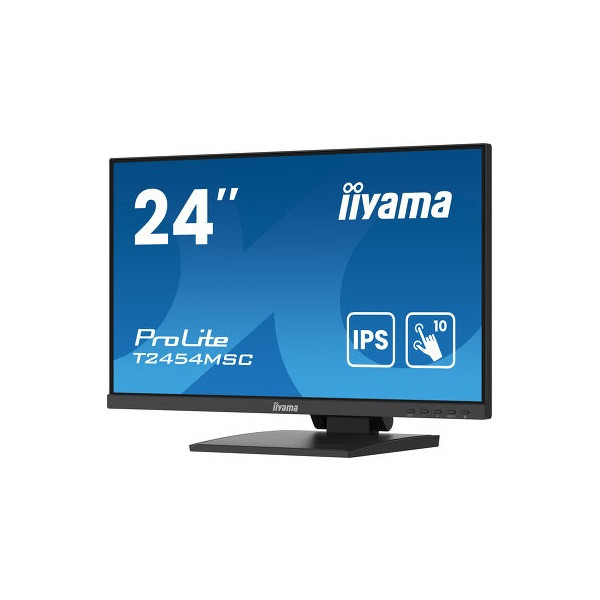

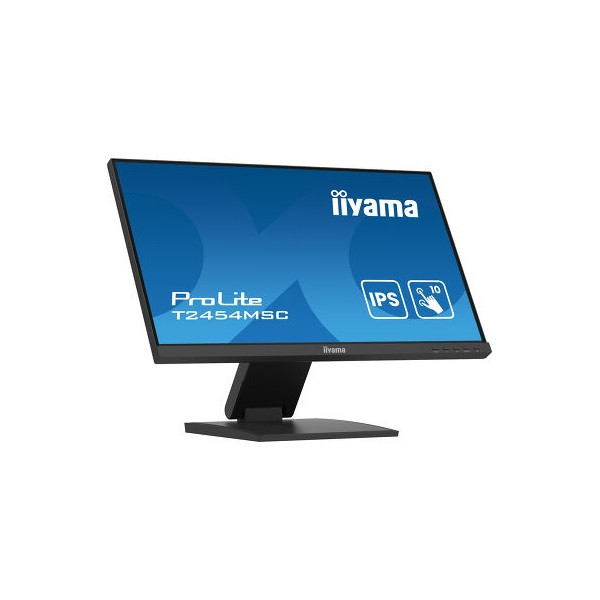

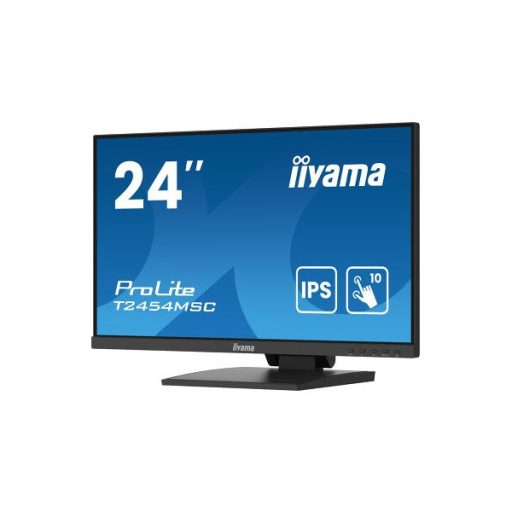

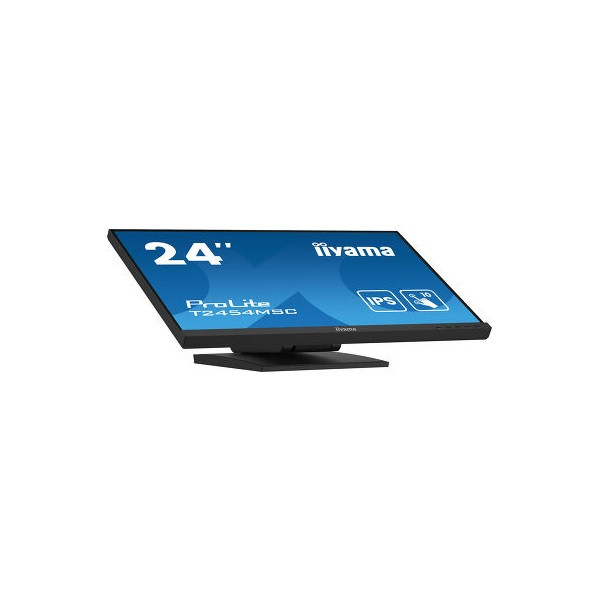

ProLite T2454MSC-B2AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Ultra thin bezel |
| Diagonal |
23.8", 60.5cm |
| Panel |
IPS LED, AG surface finish |
| Native resolution |
1920 x 1080 @75Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
300 cd/m² |
| Static contrast |
1000:1 |
| Advanced contrast |
5M:1 |
| Response time (GTG) |
4ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln 8bit |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
527.04 x 296.46mm, 20.7 x 11.7" |
| Pixel pitch |
0.274mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Audio input |
Mini jack x1 |
| Audio output |
Speakers 2 x 2W |
| HDCP |
yes |
| USB HUB |
x2 (v.3.2 (Gen 1, 5Gbit)) |
| |
|
| FEATURES |
|
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |

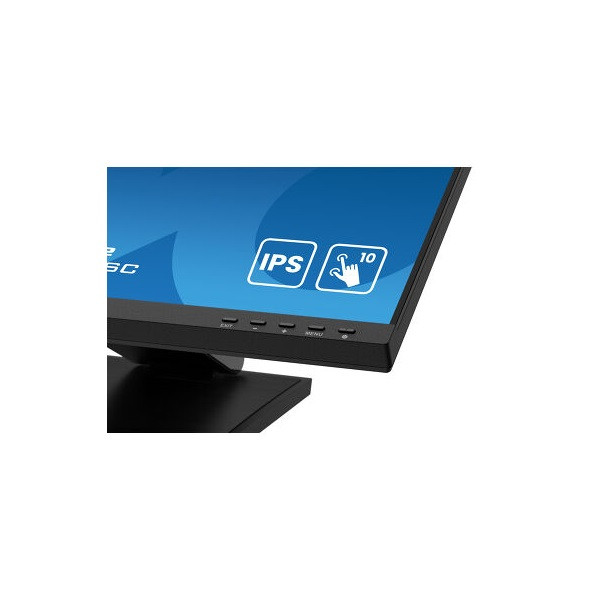

| Control buttons |
Power, Menu, +, -, Exit |
| User controls |
Luminance (contrast, brightness, i-Style Color, adv. contrast, eco), Image settings (aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, opening logo, information) |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Height adjustment |
110mm |

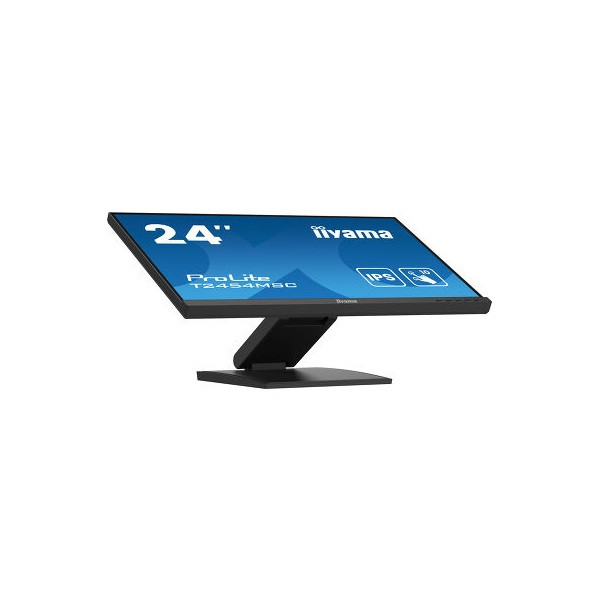

| Tilt angle |
3.5° up; 89° down |

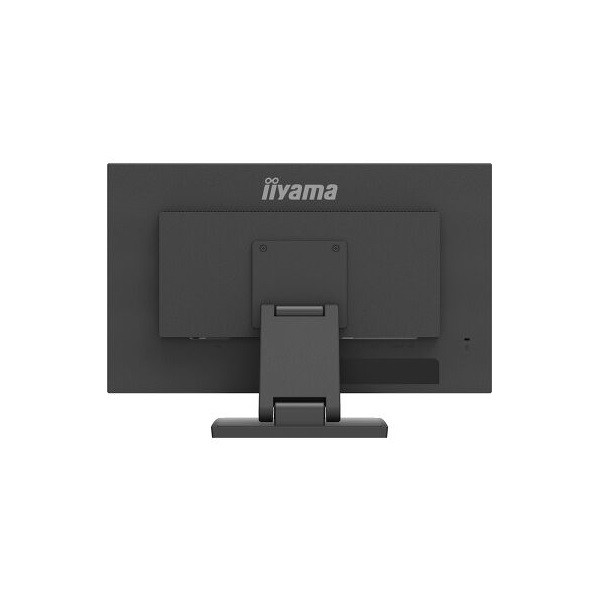

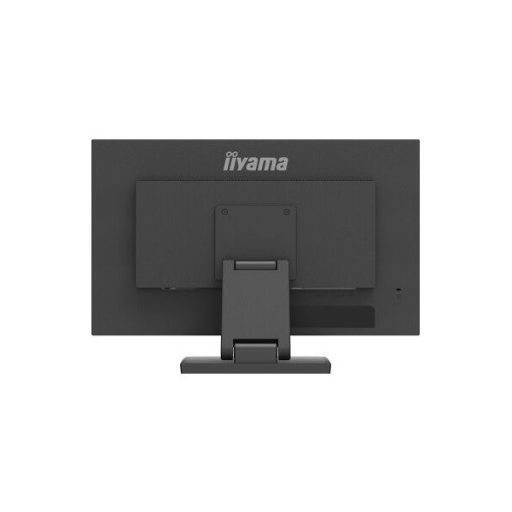

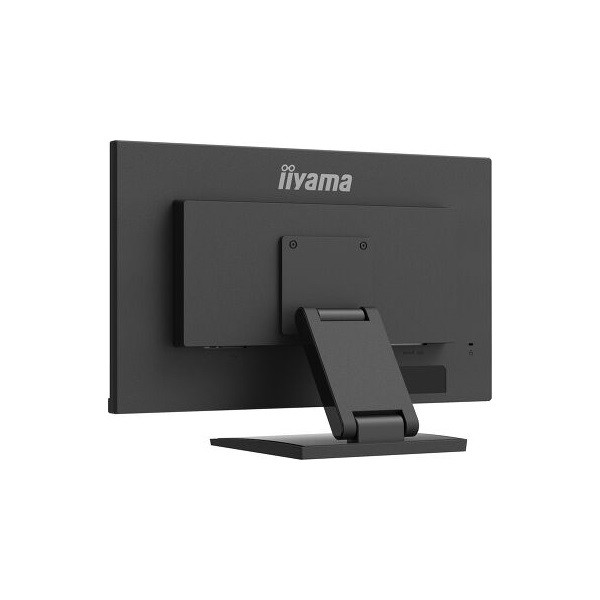

| VESA mounting |
100 x 100mm |
| MTBF |
50000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
17W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
540 x 371 x 238.5mm |
| Box dimensions W x H x D |
615 x 410 x 170mm |
| Weight (without box) |
5.6kg |
| Weight (with box) |
8.3kg |
| EAN code |
4948570125210 |
