ProLite OTF2216MC-B1 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Open Frame |
| Diagonal |
21.5", 54.6cm |
| Panel |
VA |
| Native resolution |
1920 x 1080 @60Hz (2.1 megapixel) |
| Aspect ratio |
16:9 |
| Panel brightness |
1100 cd/m² |
| Brightness |
935 cd/m² with touch |
| Light transmittance |
85% |
| Static contrast |
5000:1 |
| Response time (BTB) |
25ms |
| Viewing zone |
horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0° |
| Colour support |
16.7mln 8bit |
| Horizontal Sync |
31.4 - 82kHz |
| Viewable area W x H |
477 x 269mm, 18.8 x 10.6" |
| Pixel pitch |
0.248mm |
| Bezel colour and finish |
black |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|

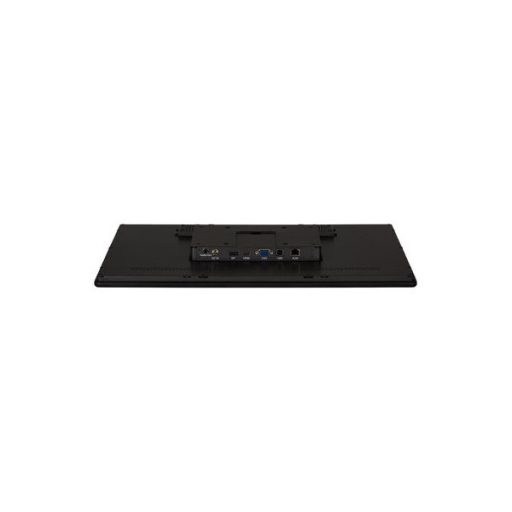

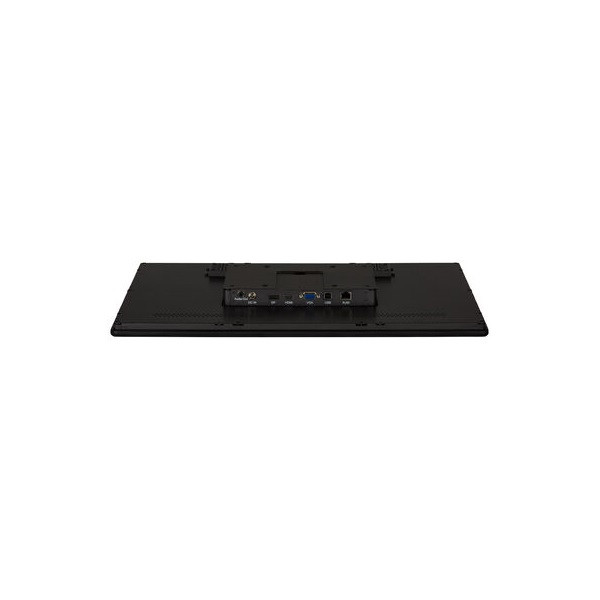

| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1
DisplayPort x1 |
| Monitor control input |
RJ45 (LAN) x1 |
| Audio output |
Mini jack x1 |
| HDCP |
yes |
| |
|
| FEATURES |
|
| Extra |
anti-fingerprint coating, touch through-glass, UV resistance, ambient light sensor, proximity sensor, auto FAN control for cooling |
| Glass thickness |
3.15mm |
| Glass hardness |
7H |
| 60950 Ball drop test |
yes |
| Water and dust protection |
IPIP65 (front) |
| Housing (bezel) |
metal |
| Water tight seal |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, JP |
| Control buttons |
Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| User controls |
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor) |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Orientation |
landscape, portrait, face-up |
| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| Operation temperature range (-°/+°) |
-20°C - 60°C |
| MTBF |
60000 hours |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, DP |
| Guides |
quick start guide, safety guide |
| Other |
AC adapter |
| Cable cover |
yes |
| Remote control |
external control pad |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
external |
| Power supply |
DC DC 12 V |
| Power usage |
43W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
520 x 315 x 42.5mm |
| Box dimensions W x H x D |
608 x 400 x 150mm |
| Weight (without box) |
4.6kg |
| Weight (with box) |
4.5kg |
| EAN code |
4948570123735 |
| |
|
