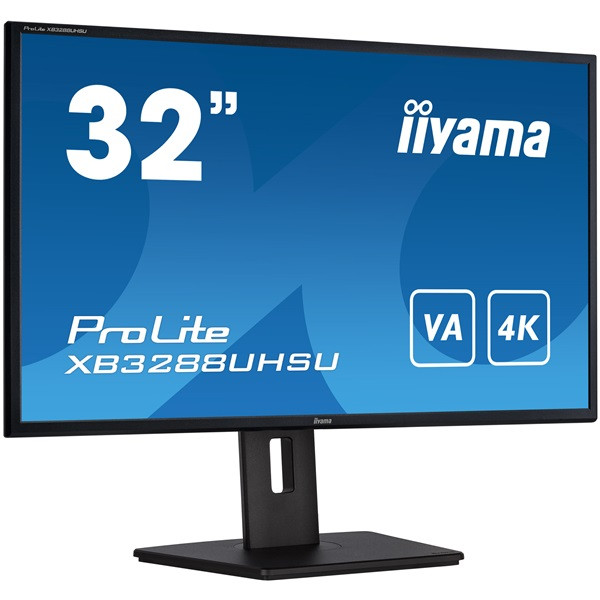

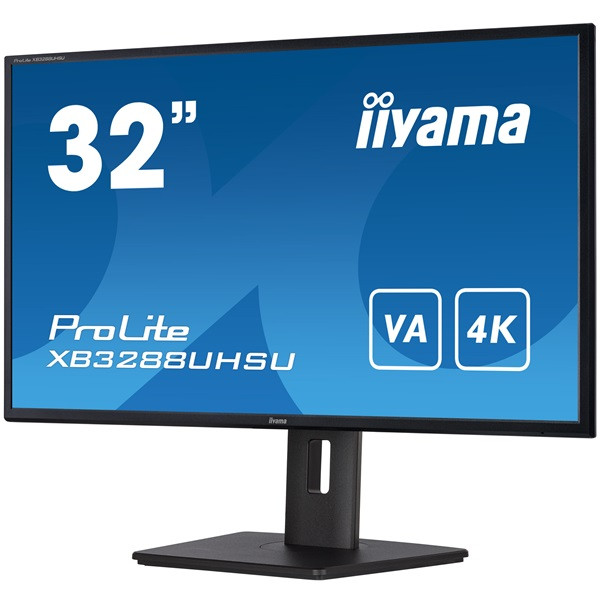

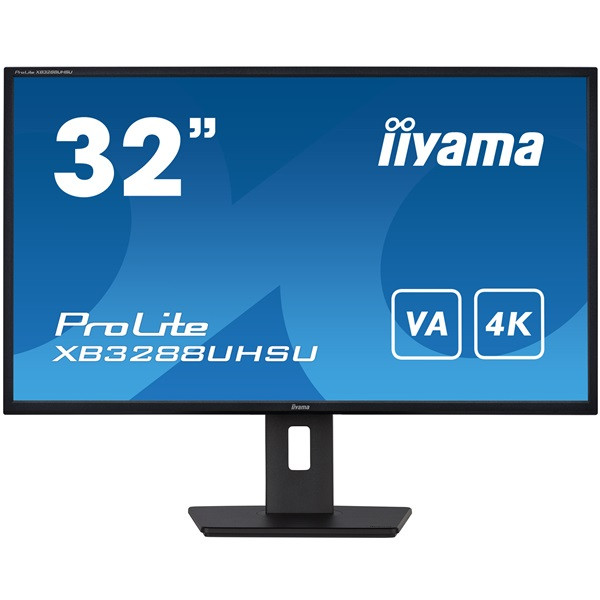

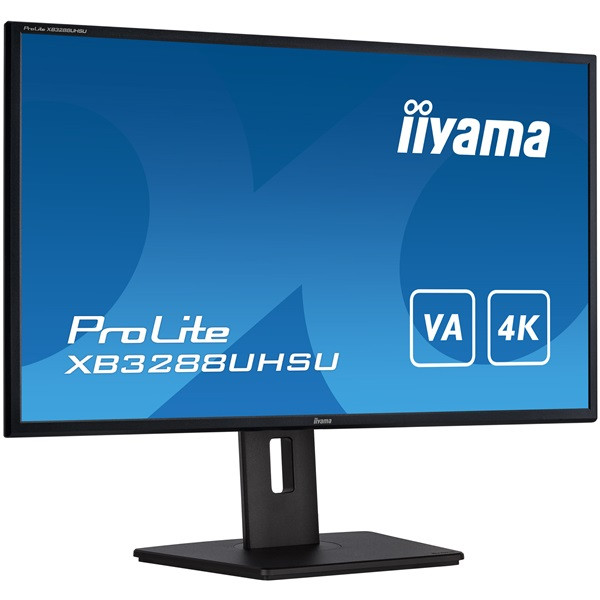

ProLite XB3288UHSU-B5 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Diagonal |
31.5", 80cm |
| Panel |
VA, matte finish |
| Native resolution |
3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
300 cd/m² |
| Static contrast |
3000:1 |
| Advanced contrast |
80M:1 |
| Response time (GTG) |
3ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07B 10bit (NTSC: 95%) |
| Horizontal Sync |
30 - 135kHz |
| Viewable area W x H |
698.4 x 392.9mm, 27.5 x 15.5" |
| Pixel pitch |
0.181mm |
| Colour |
matte, black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|

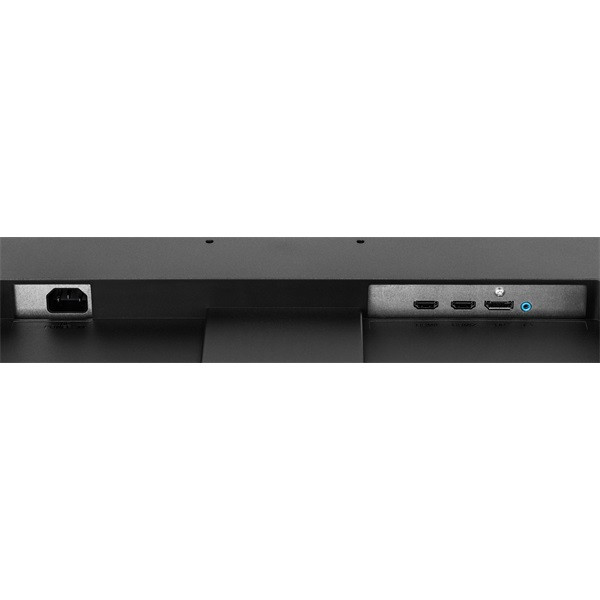

| Signal input |
HDMI x2 (v. 2.0)
DisplayPort x1 (v. 1.2) |

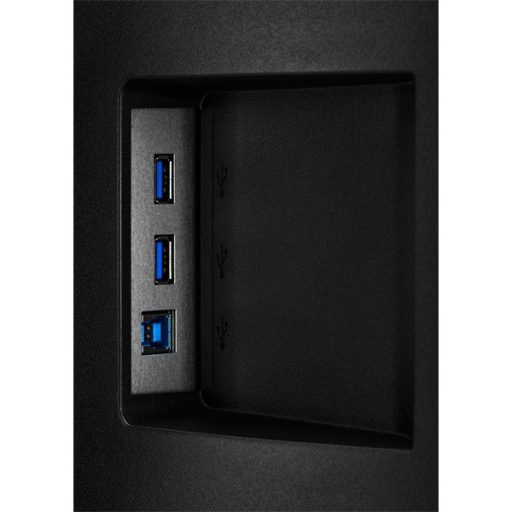

| USB HUB |
x2 (v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA)) |
| HDCP |
yes |
| Headphone connector |
yes |
| |
|
| FEATURES |
|
| Blue light reducer |
yes |
| Flicker free |
yes |
| Adaptive Sync support |
@38~60Hz |
| HDR |
yes |
| OSD languages |
EN, DE, FR, IT, RU, JP, CZ, NL, PL |
| Control buttons |
Joystick: Power/Menu, Up/Input select, Down, Left/Eco Mode, Right/Volume |
| User controls |
picture (brightness, contrast, black tuner, sharpness, OD, ACR, Eco, X-Res Technology), colour (warm, normal, cool, user colour, i-Style colour, blue light reducer), input select, audio (volume, mute), PiP/PbP (mode, sub win input, PiP size, PiP position, swap, audio input), language , OSD settings ( OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu (video mode adjust, HDMI RGB range, HDR, FreeSync, USB BC, opening logo, LED, memory recall) |
| Speakers |
2 x 3W |
| Convenience |
Kensington-lock™ prepared, DDC/CI, Mac OSX |
| |
|
| MECHANICAL |
|

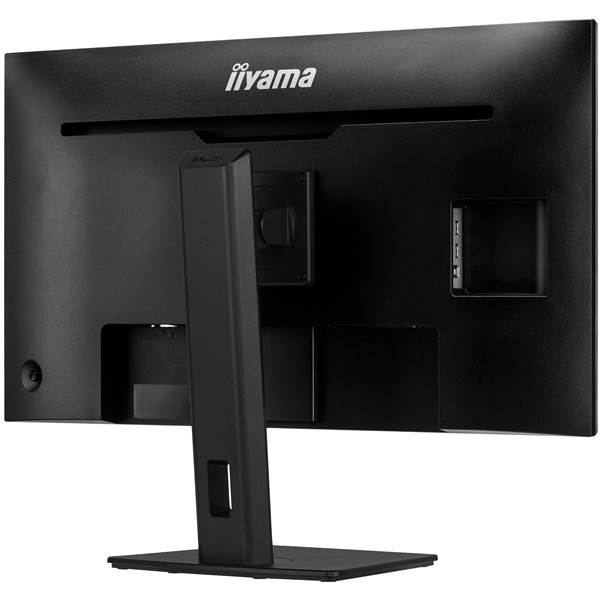

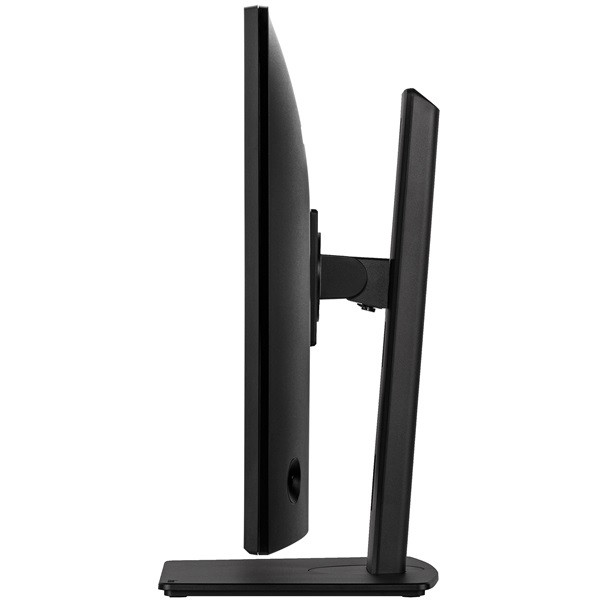

| Display position adjustments |
height, swivel, tilt |
| Height adjustment |
150mm |
| Swivel stand |
90°; 45° left; 45° right |

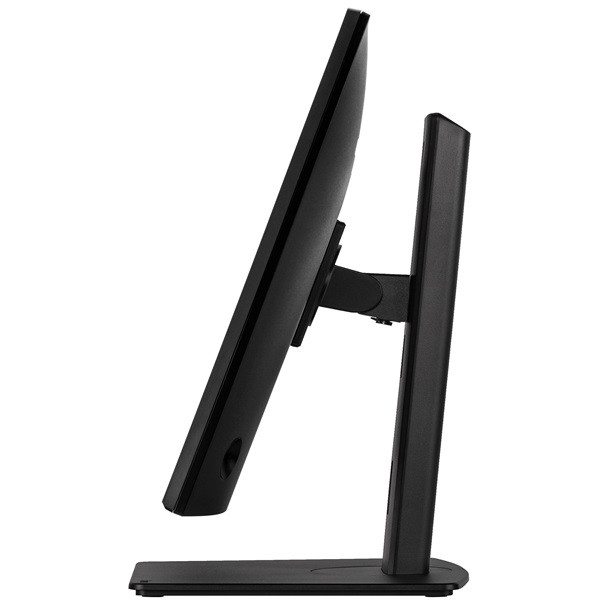

| Tilt angle |
23° up; 35° down |

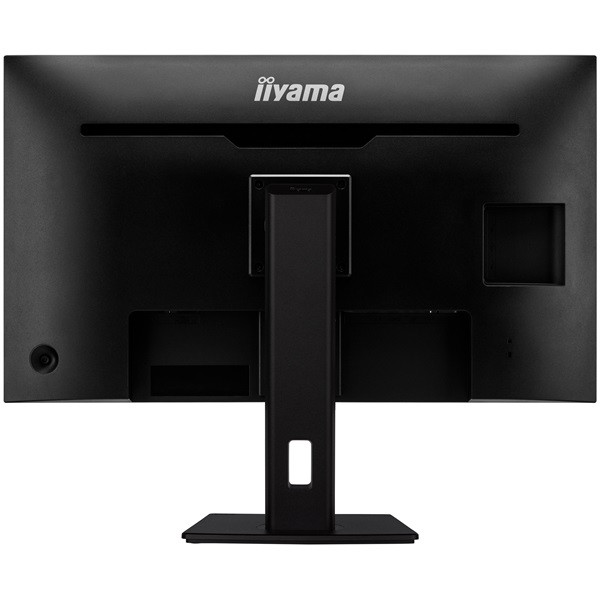

| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, DP |
| Other |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
44W typical, 0.5W stand by, 0.5W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
G |
| REACH SVHC |
above 0.1%: Lead |
| |
|
