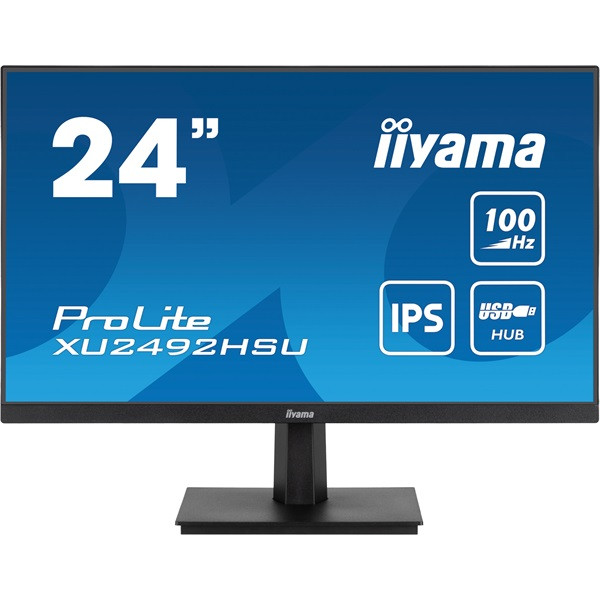

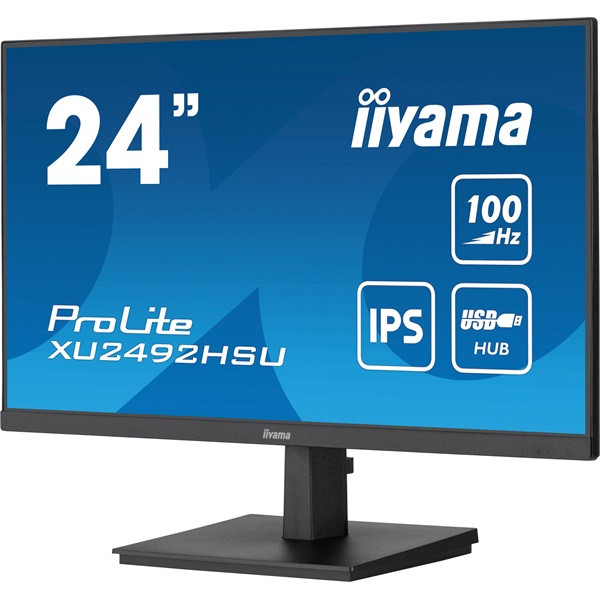

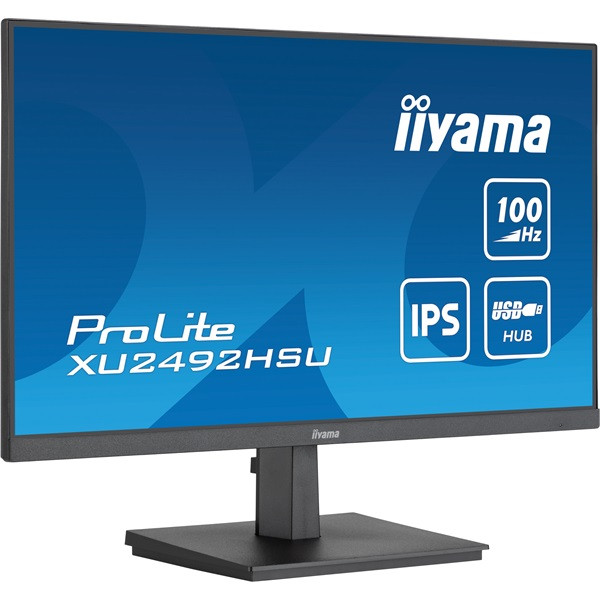

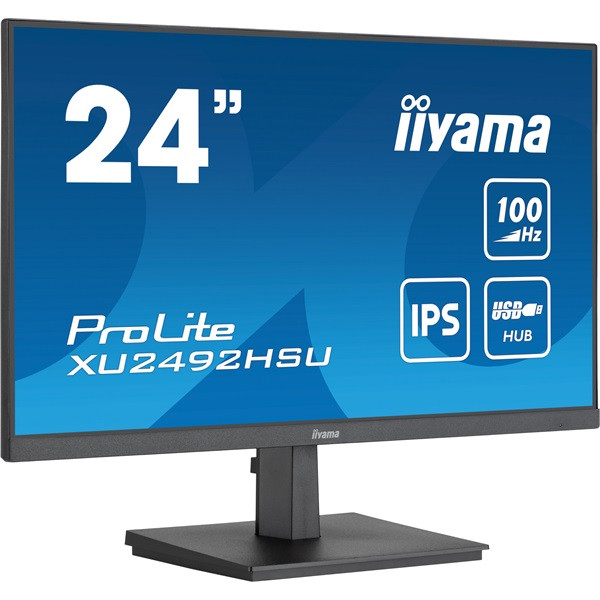

ProLite XU2492HSU-B6 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
3-side borderless |
| Diagonal |
23.8", 60.5cm |
| Panel |
IPS Panel Technology LED, matte finish |
| Native resolution |
1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
250 cd/m² |
| Static contrast |
1300:1 |
| Advanced contrast |
80M:1 |
| Response time (MPRT) |
0.4ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync |
30 - 115kHz |
| Viewable area W x H |
527 x 296.5mm, 20.7 x 11.7" |
| Pixel pitch |
0.275mm |
| Colour |
matte, black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Signal input |
HDMI x1
DisplayPort x1 |

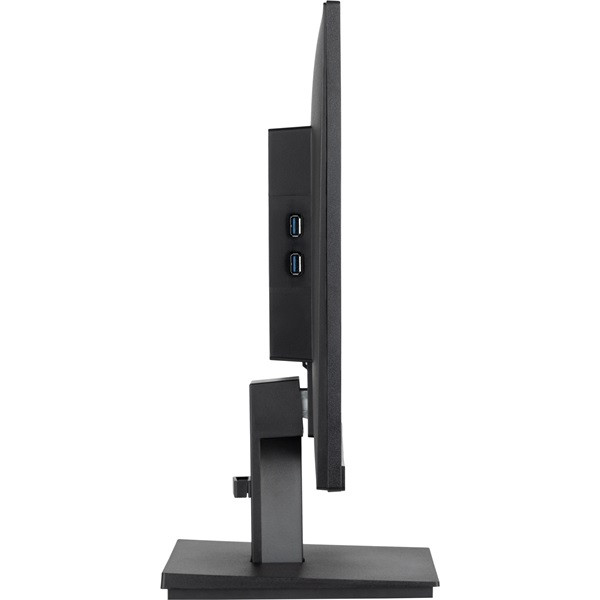

| USB HUB |
x4 (v. 3.2 Gen 1 (5Gbps, DC5V, 900mA)) |
| HDCP |
yes |
| Headphone connector |
yes |
| |
|
| FEATURES |
|
| Blue light reducer |
yes |
| Flicker free |
yes |
| Adaptive Sync support |
yes |
| Extra |
i-Style colour |
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL |
| Control buttons |
Signal Select / Exit, + / Volume, - / Eco +, Menu , Power |
| User controls |
picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, X-Res technology), image settings (blue light reducer, sharp&soft, video mode adjust), colour settings (gamma, 6-axis, colour temp.), audio settings (volume, mute), OSD settings (OSD H. position, OSD V. position, OSD time, language), extra1 (MBR, AdaptiveSync, USB BC), extra2 (reset, DDC/CI, signal select, HDMI range, opening logo, LED, information) |
| Speakers |
2 x 2W |
| Convenience |
Kensington-lock™ prepared, DDC2B, Mac OSX |
| |
|
| MECHANICAL |
|
| Display position adjustments |
tilt |

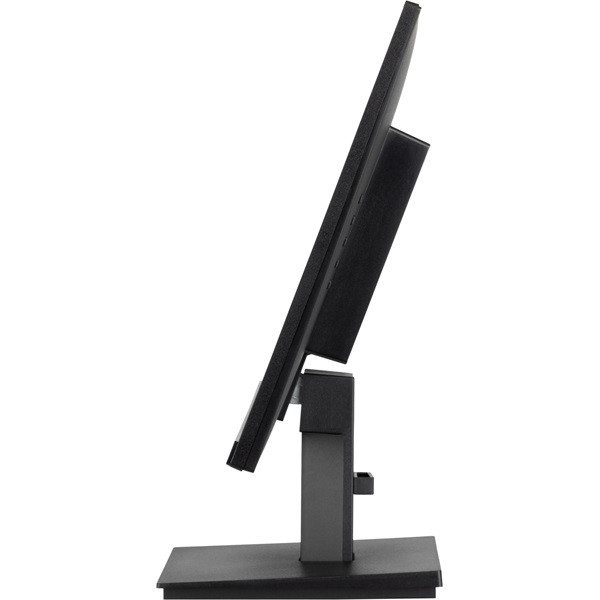

| Tilt angle |
22° up; 2° down |

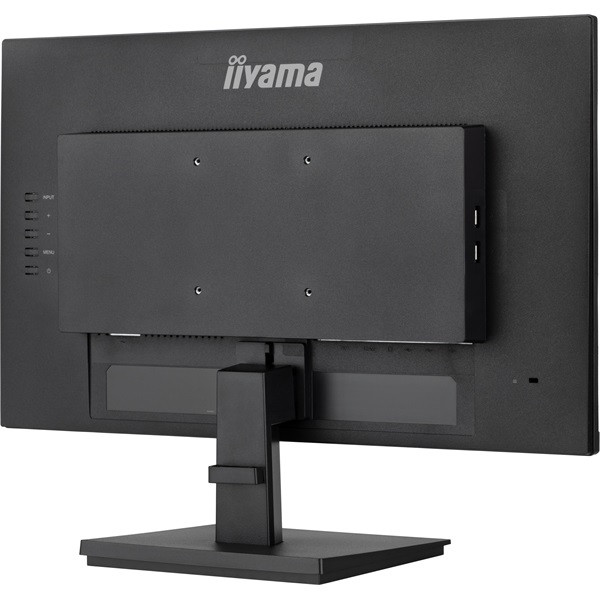

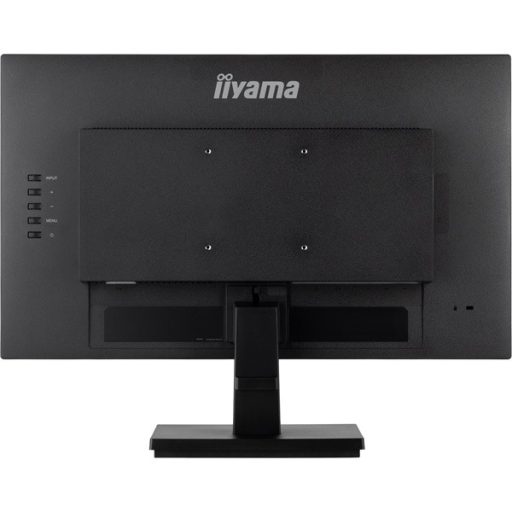

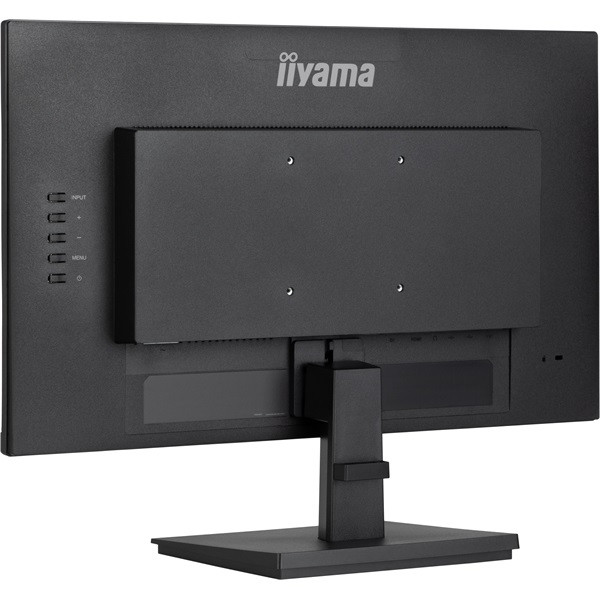

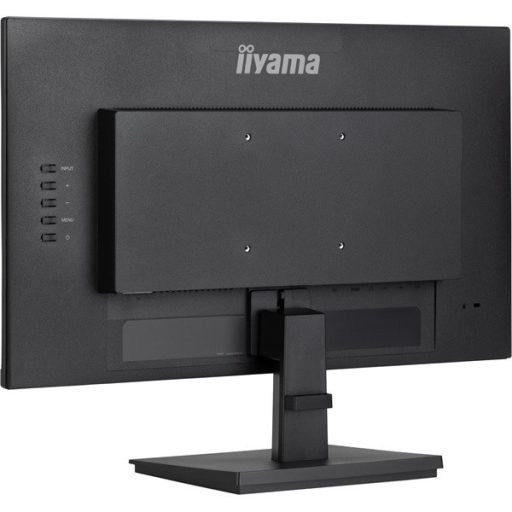

| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI, DP |
| Other |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
0.5W stand by |
| |
|
| SUSTAINABILITY |
|
| Regulations |
TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| EPEAT |
*registration varies by country, go to www.epeat.net for details |
| REACH SVHC |
above 0.1%: Lead |
| |
|
