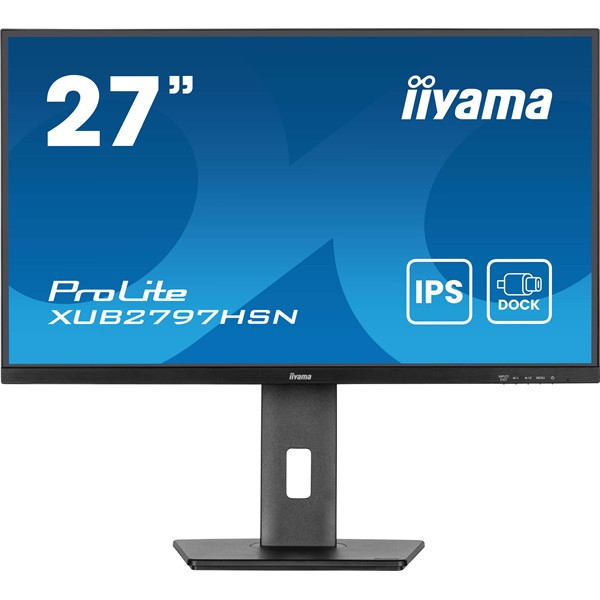

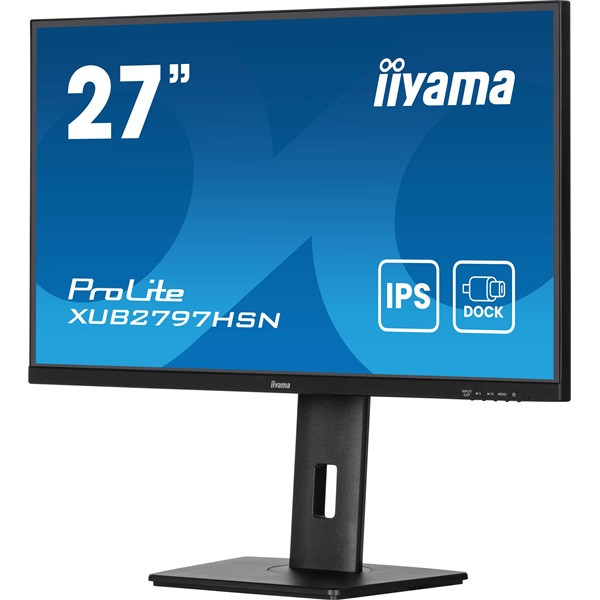

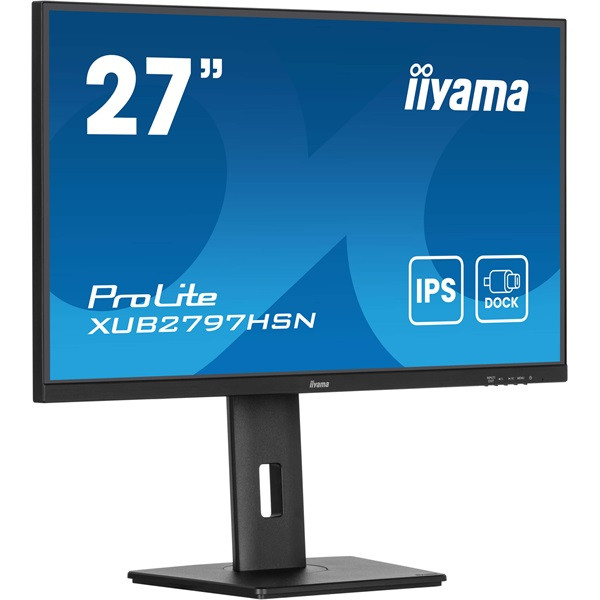

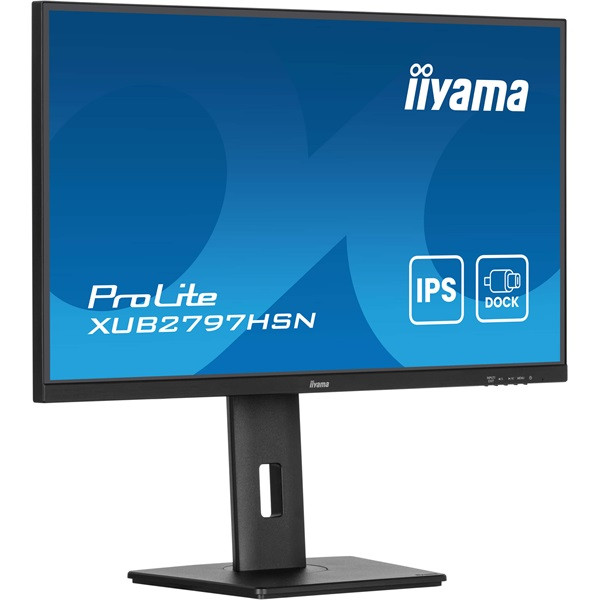

ProLite XUB2797HSN-B2 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
3-side borderless |
| Diagonal |
27", 68.5cm |
| Panel |
IPS Panel Technology LED, matte finish |
| Native resolution |
1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
300 cd/m² |
| Static contrast |
1000:1 |
| Advanced contrast |
80M:1 |
| Response time (MPRT) |
1ms |
| Viewing zone |
horizontal/vertical: 178°/ 178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync |
30 - 110kHz |
| Viewable area W x H |
597.8 x 336.3mm, 23.5 x 13.2" |
| Pixel pitch |
0.311mm |
| Colour |
matte, black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Signal input |
HDMI x1 (v.1.4)
DisplayPort x1 (v.1.2)
USB-C x1 (PD 65W) |
| Signal output |
DisplayPort x1 (Daisy Chain MST max. ?1920x1880?) |
| USB HUB |
x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 7.5W)) |
| USB-C DOCK |
x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit)) |
| HDCP |
yes |
| Headphone connector |
yes |
| RJ45 (LAN) |
x1 |
| |
|
| FEATURES |
|
| Blue light reducer |
yes |
| Flicker free |
yes |
| Adaptive Sync support |
yes |
| Extra |
i-Style colour |
| OSD languages |
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL |
| Control buttons |
Power, Menu, Adjustment/Volume, Adjustment/Shortcut Menu, Input/Exit |
| User controls |
picture adjust (brightness, contrast, Eco, ACR, OD, MBR, AdaptiveSync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute) |
| Speakers |
2 x 2W |
| Convenience |
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |
| |
|
| MECHANICAL |
|

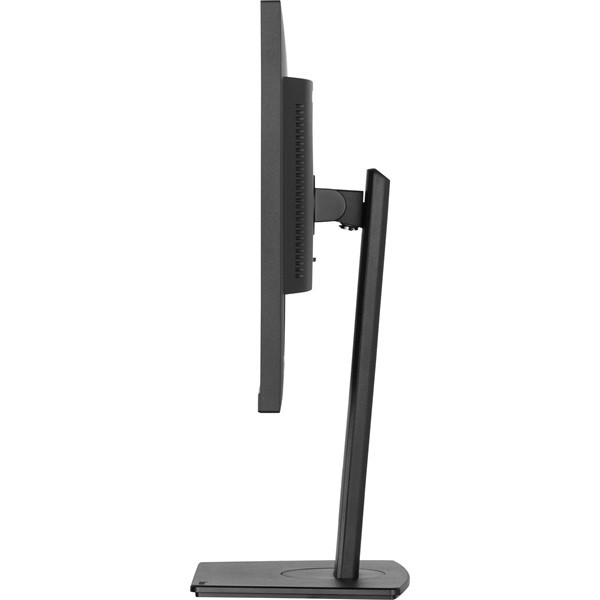

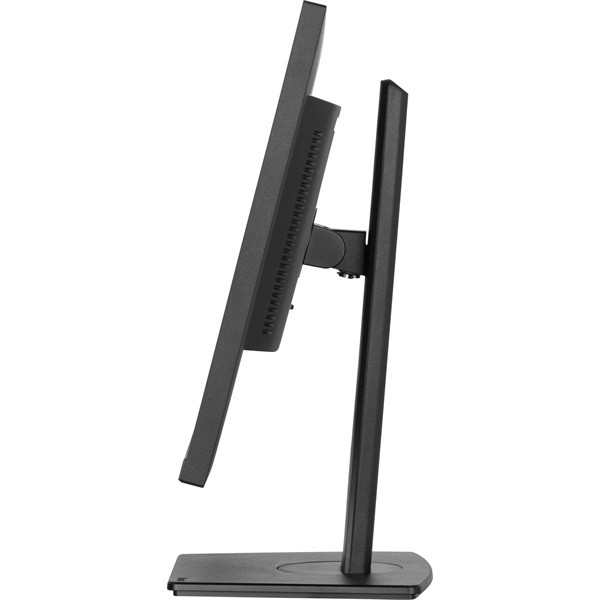

| Display position adjustments |
height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment |
150mm |

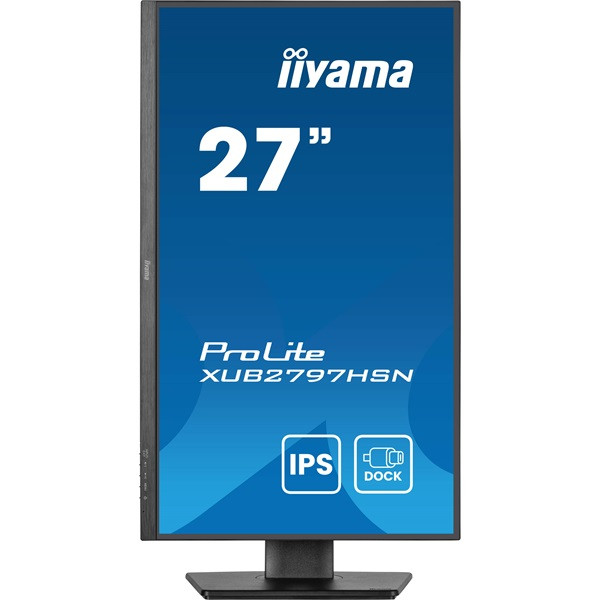

| Rotation (PIVOT function) |
90° |
| Swivel stand |
120°; 60° left; 60° right |

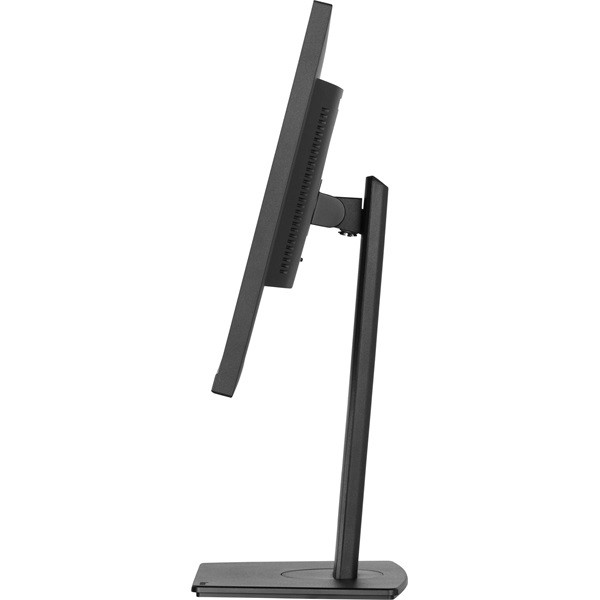

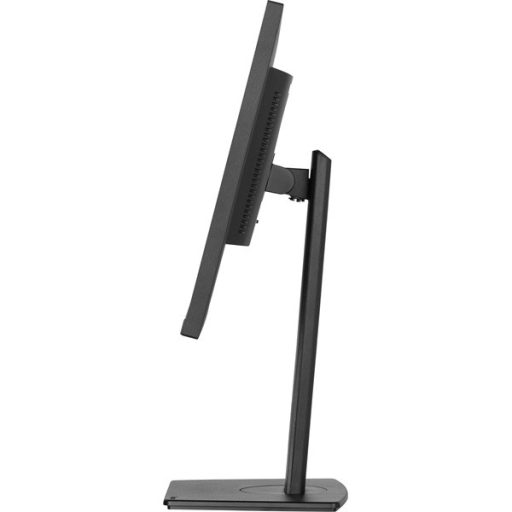

| Tilt angle |
23° up; 5° down |

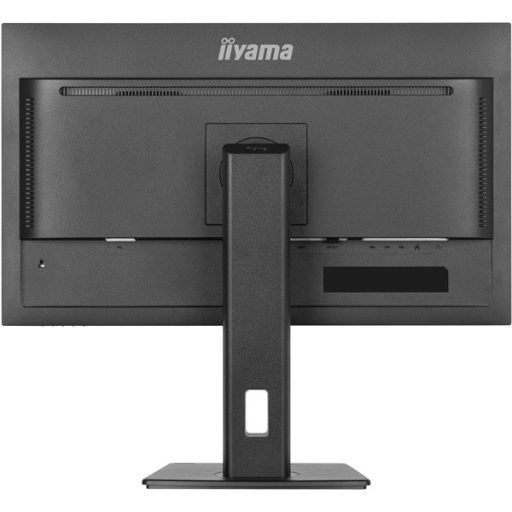

| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, HDMI, USB-C |
| Other |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
22W typical, 0.5W stand by, 03W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| EPEAT Silver |
*registration varies by country, go to www.epeat.net for details |
| REACH SVHC |
above 0.1%: Lead |

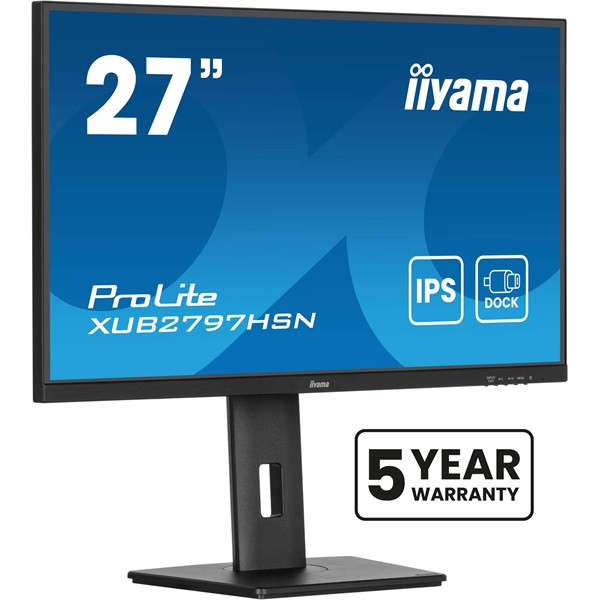

| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| |
|
