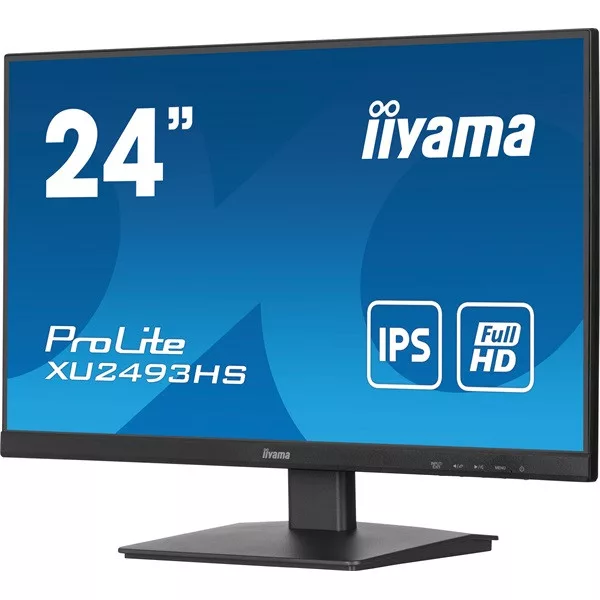

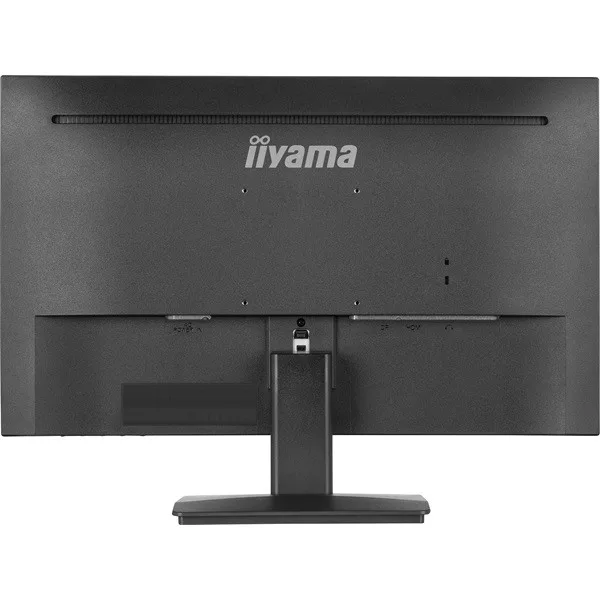

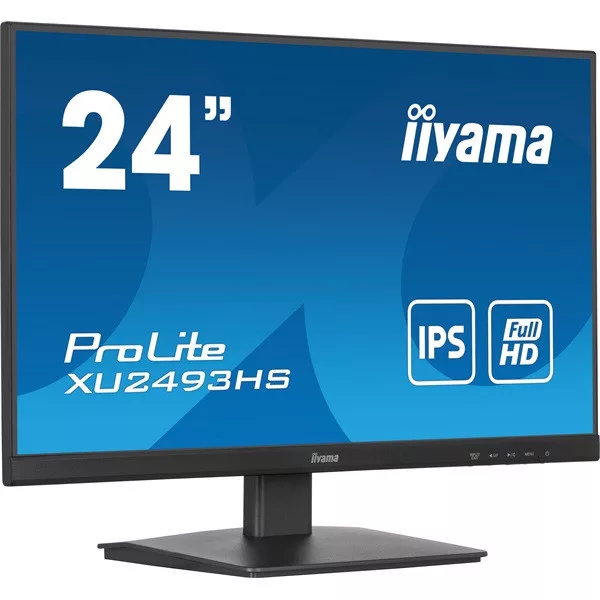

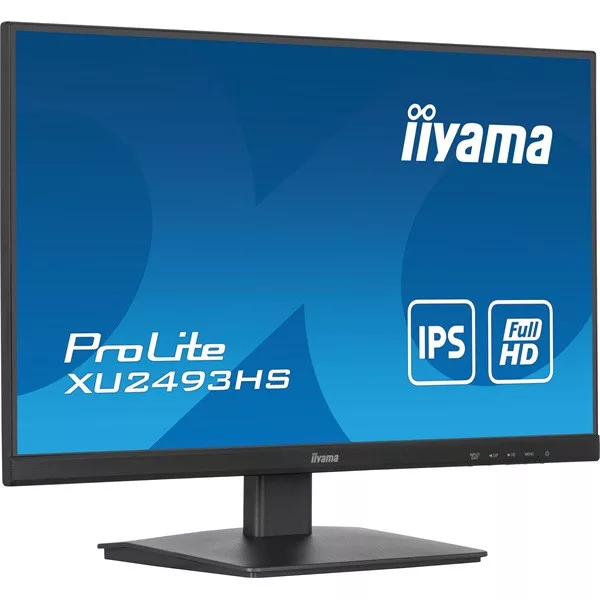

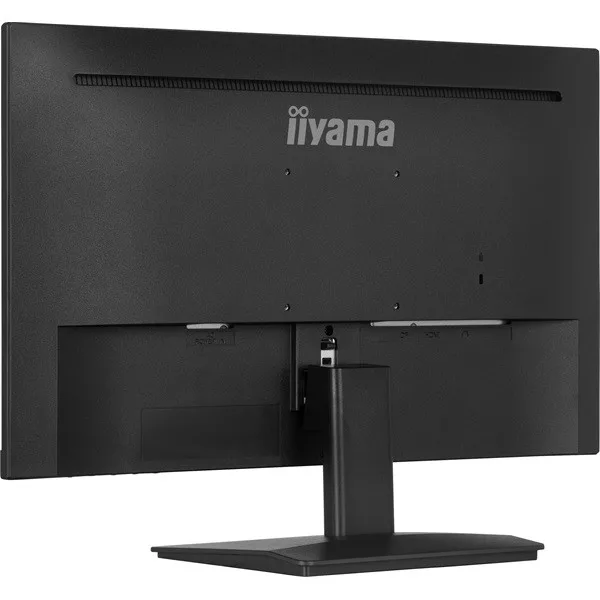

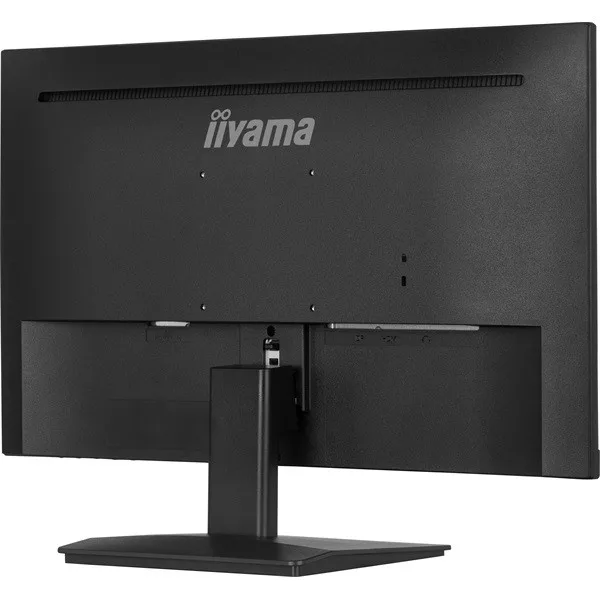

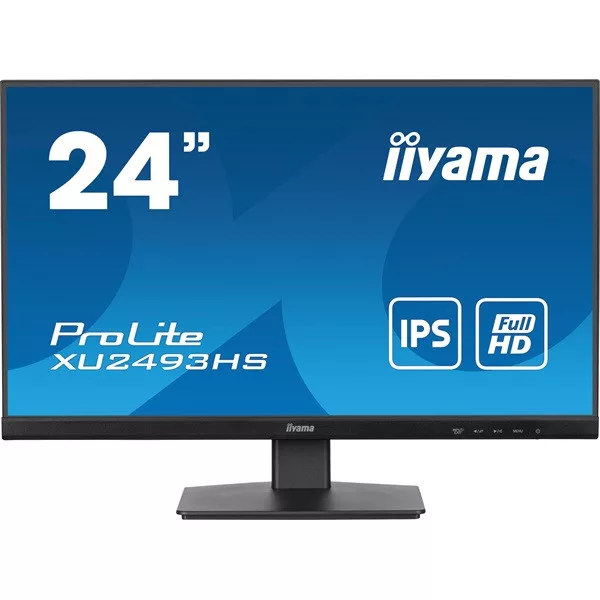

ProLite XU2493HS-B6 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
3-side borderless |
| Diagonal |
23.8", 60.5cm |
| Panel |
IPS panel technology LED, matte finish |
| Native resolution |
1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
250 cd/m² |
| Static contrast |
1300:1 |
| Advanced contrast |
80M:1 |
| Response time (MPRT) |
0.5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln (sRGB: 96%; NTSC: 72%) |
| Horizontal Sync |
30 - 115kHz |
| Viewable area W x H |
527 x 296.5mm, 20.7 x 11.7" |
| Pixel pitch |
0.275mm |
| Colour |
matte, black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Signal input |
HDMI x1
DisplayPort x1 |
| HDCP |
yes |
| Headphone connector |
yes |
| |
|
| FEATURES |
|
| Blue light reducer |
yes |
| Flicker free |
yes |
| Adaptive Sync support |
yes |
| Extra |
i-style Colour |
| OSD languages |
EN, DE, FR, IT, RU, JP, CZ, NL, PL |
| Control buttons |
Power, Menu, + / Volume, - / Eco, Signal / Exit |
| User controls |
picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, BLR, sharp and soft, MBR, AdaptiveSync), OSD (OSD H. Position, OSD V. Position, OSD time, OSD background, language, display information), extra (reset, DDC / CI, signal select, LED, opening logo) |
| Speakers |
2 x 2W |
| Convenience |
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |
| |
|
| MECHANICAL |
|
| Display position adjustments |
tilt |
| Tilt angle |
20° up; 5° down |
| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, HDMI |
| Other |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
16W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| SUSTAINABILITY |
|
| Regulations |
TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| REACH SVHC |
above 0.1%: Lead |
