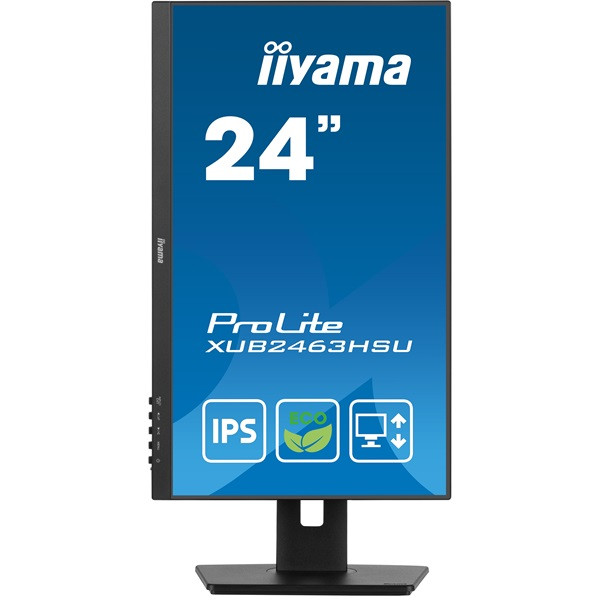

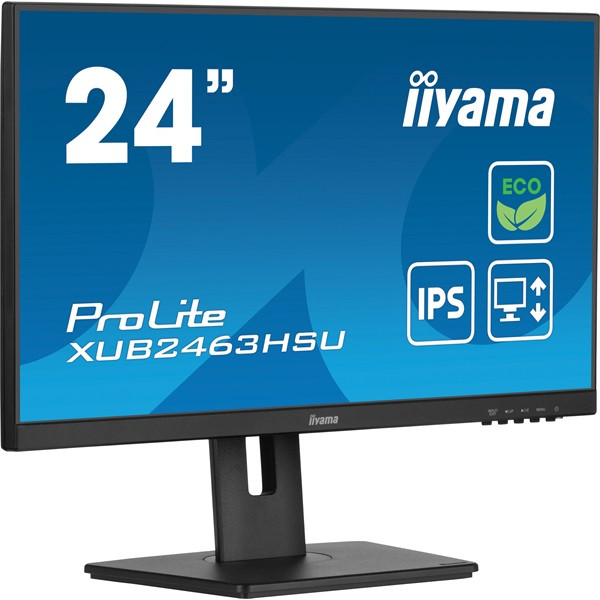

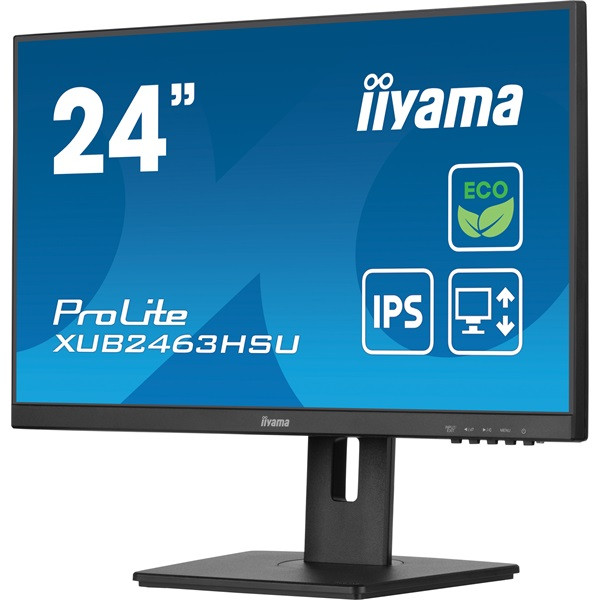

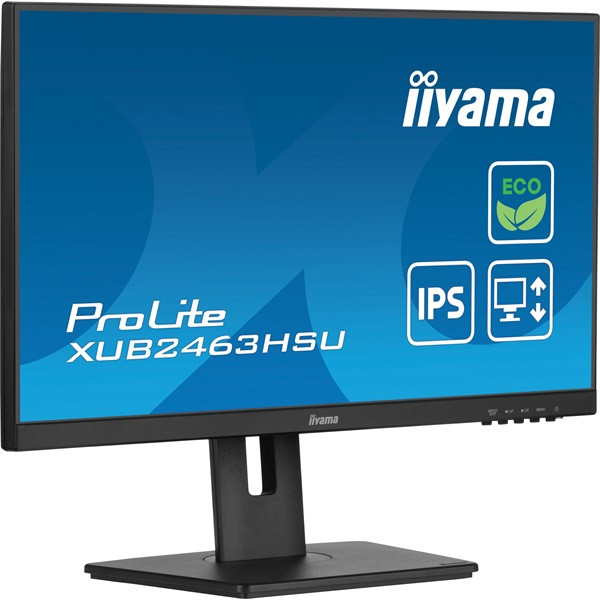

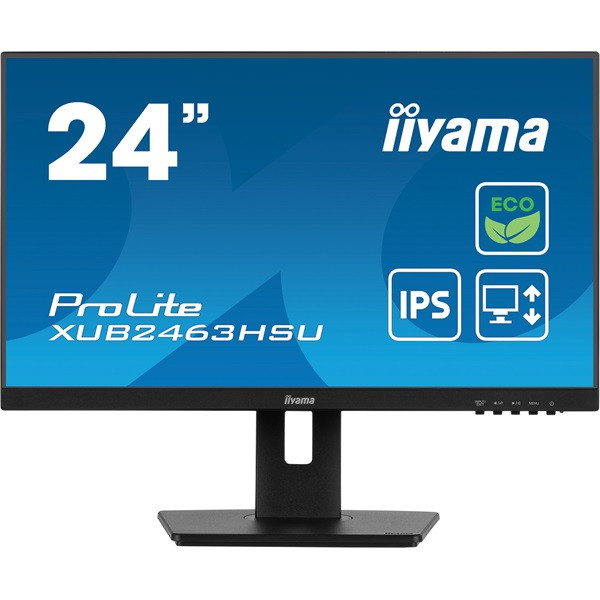

ProLite XUB2463HSU-B1 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
3-side borderless |
| Diagonal |
23.8", 60.5cm |
| Panel |
IPS panel technology LED, matte finish |
| Native resolution |
1920 x 1080 @100Hz (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
250 cd/m² |
| Static contrast |
1300:1 |
| Advanced contrast |
80M:1 |
| Response time (GTG) |
3ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln (sRGB: 96%; NTSC: 72%) |
| Horizontal Sync |
45 - 100kHz |
| Viewable area W x H |
527 x 296.5mm, 20 x 11.6" |
| Pixel pitch |
0.275mm |
| Colour |
matte, black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Signal input |
HDMI x1
DisplayPort x1 |

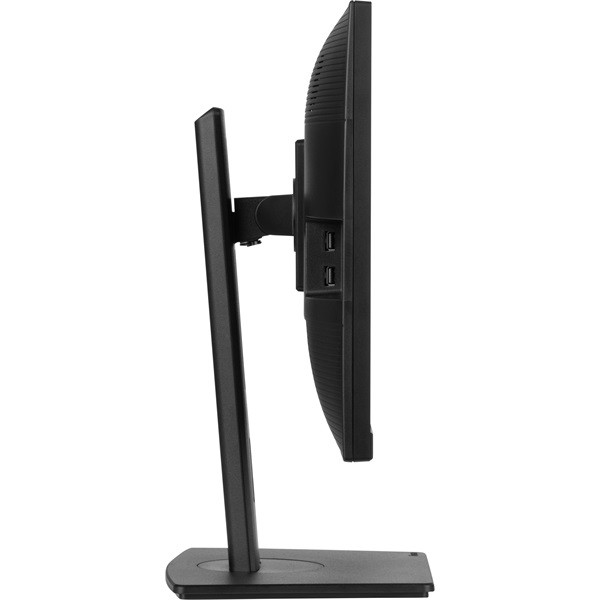

| USB HUB |
x2 (v. 3.2 Gen 1 (5Gbps, DC5V, 900mA)) |
| HDCP |
yes |
| Headphone connector |
yes |
| |
|
| FEATURES |
|
| Blue light reducer |
yes |
| Flicker free |
yes |
| Adaptive Sync support |
yes |
| Extra |
i-Style colour |
| OSD languages |
EN, DE, FR, IT, RU, JP, CZ, NL, PL |
| Control buttons |
Power, Menu, Up / Right / Volume, Down / Left / Eco, Input / Exit |
| User controls |
picture adjust (brightness, contrast, i-Style colour, ACR, ECO, OD, X-Res Technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD settings (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, language), extra (reset, DDC/CI, LED, opening logo, adaptive sync, display information), input select, audio settings (volume, mute) |
| Speakers |
2 x 2W |
| Convenience |
Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |
| |
|
| MECHANICAL |
|

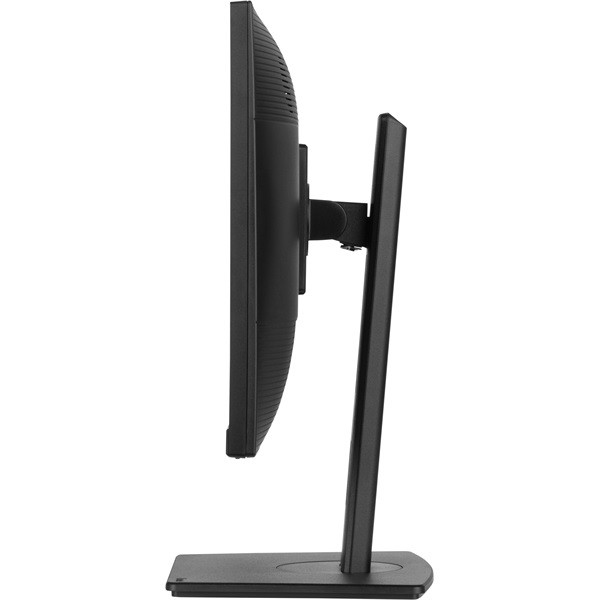

| Display position adjustments |
height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment |
150mm |
| Rotation (PIVOT function) |
90° |
| Swivel stand |
90°; 45° left; 45° right |

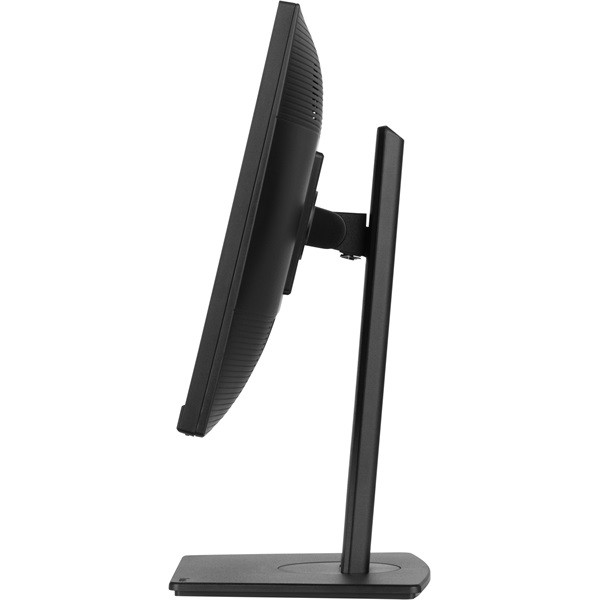

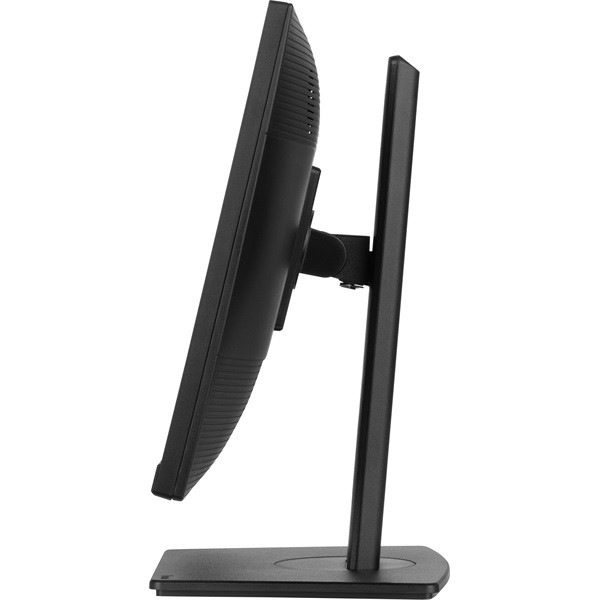

| Tilt angle |
23° up; 5° down |
| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Other |
quick start guide, safety guide |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
9.4W default, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |

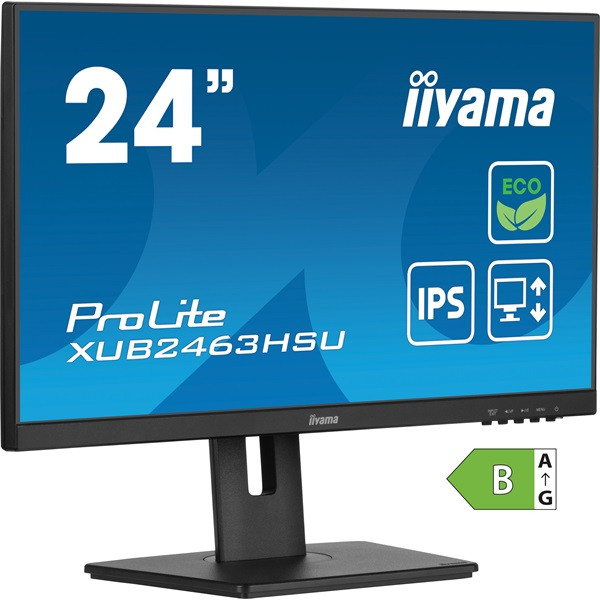

| Energy efficiency class (Regulation (EU) 2017/1369) |
B |
| EPEAT Silver |
*registration varies by country, go to www.epeat.net for details |
| REACH SVHC |
above 0.1%: Lead |
| |
|
