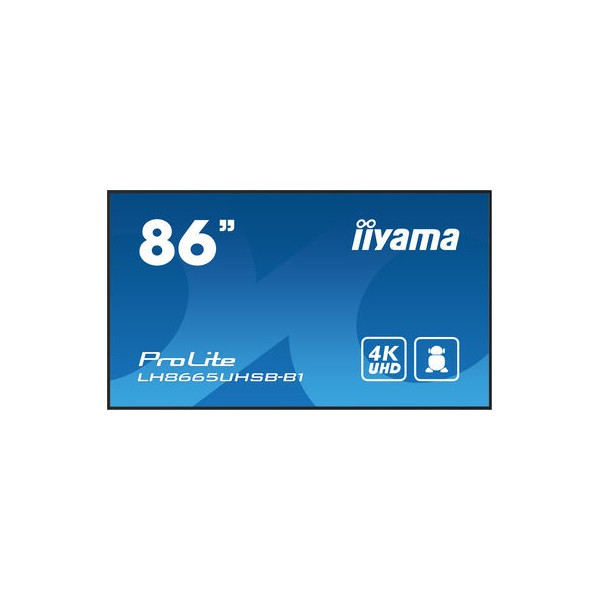

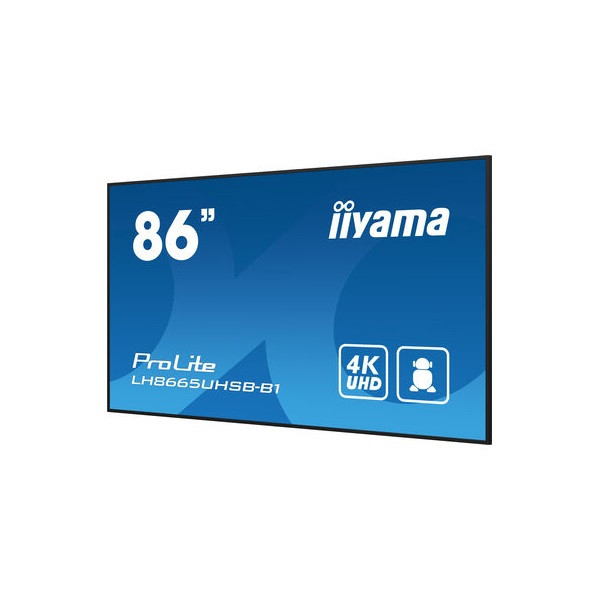

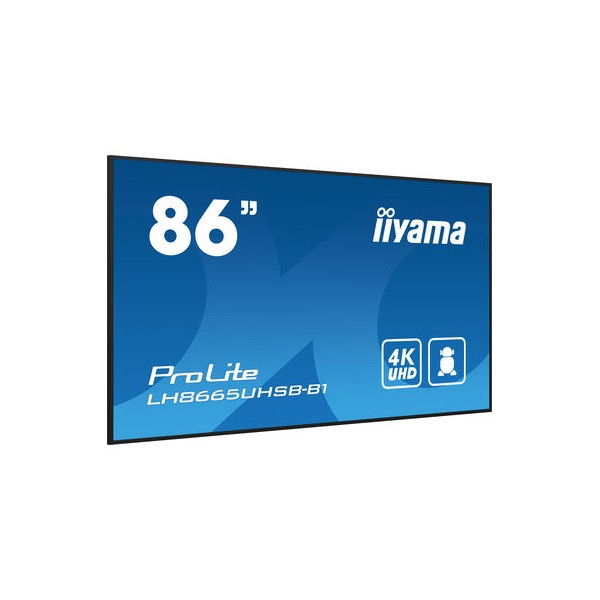

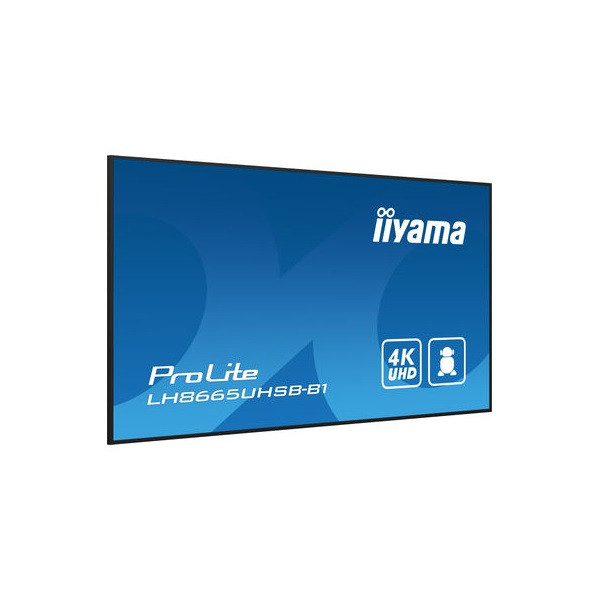

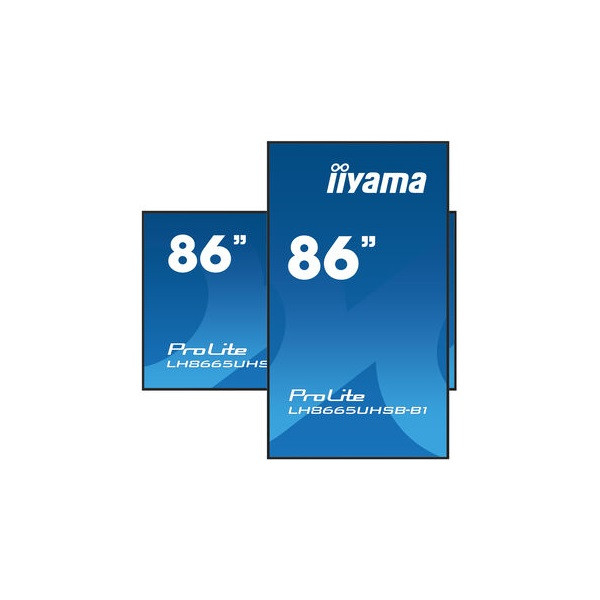

ProLite LH8665UHSB-B1 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
86", 217cm |
| Panel |
IPS, haze 1% |
| Native resolution |
3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
800 cd/m² |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync |
28 - 160kHz |
| Viewable area W x H |
1895 x 1066mm, 74.6 x 42" |
| Bezel width (sides, top, bottom) |
16mm, 16.25mm, 16.25mm |
| Pixel pitch |
0.315mm |
| Bezel colour and finish |
black |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.2, max. 3840x2160 @60Hz) |
| Monitor control input |
RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1 |
| Audio output |
Mini jack x1
Speakers 2 x 10W |
| HDCP |
v.2.2 |
| USB ports |
x2 (v.2.0) |
| |
|
| FEATURES |
|
| Integrated software |
Android 11 OS, iiSignage2, FailOver, EShare |
| WiFi |
yes (Built-in, 802.11ac) |
| Hardware |
CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB |
| Max. non-stop operating time |
24/7 |
| Media playback |
yes |
| Housing (bezel) |
metal |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Power |
| User controls |
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset) |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Orientation |

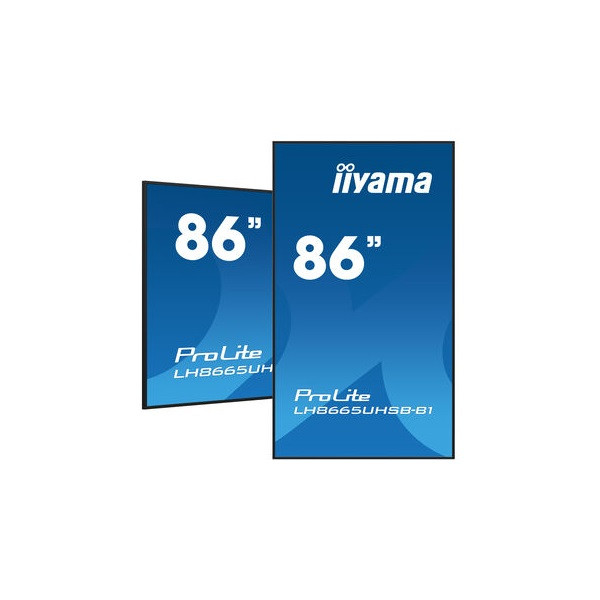

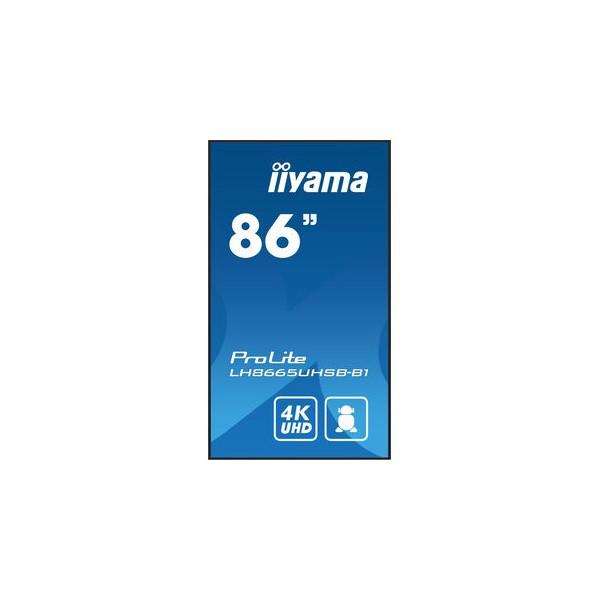

landscape, portrait |
| Fanless design |
yes |

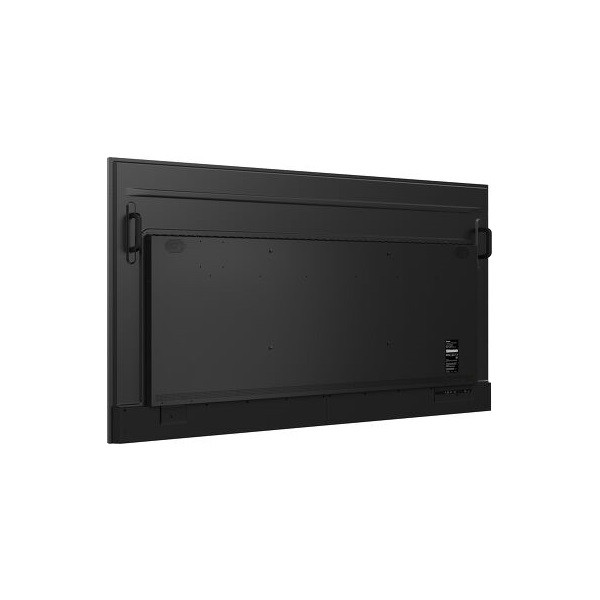

| VESA mounting |

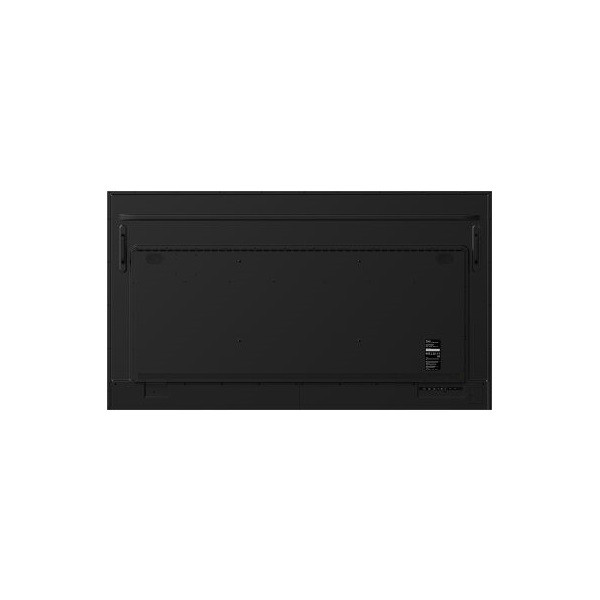

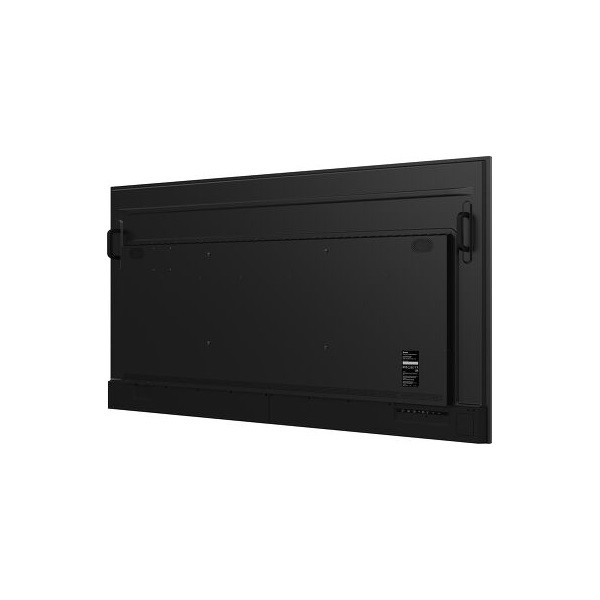

600 x 400mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, HDMI, RS-232c |
| Guides |
quick start guide, safety guide |
| Other |
Stickers for screw holes, Adhesive clips for cable management, AC switch cover |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
159W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
E |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
1927 x 1098.5 x 57mm |
| Box dimensions W x H x D |
2123 x 1247 x 225mm |
| Weight (without box) |
49kg |
| Weight (with box) |
64kg |
| EAN code |
4948570123605 |
