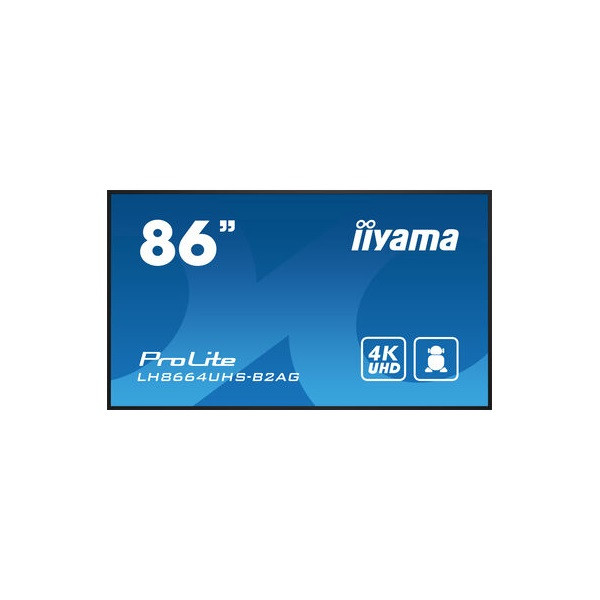

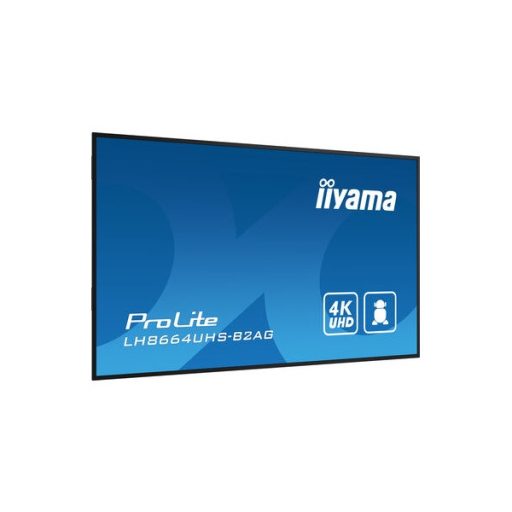

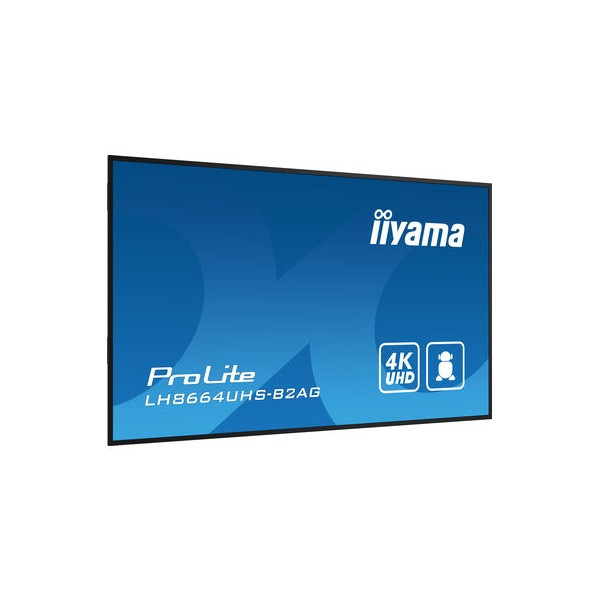

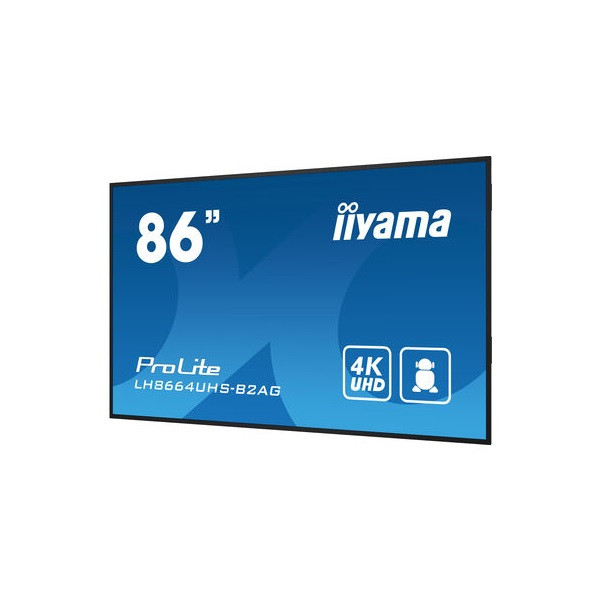

ProLite LH8664UHS-B2AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
85.6", 217.4cm |
| Panel |
IPS, AG coated glass, matte finish, haze 25% |
| Native resolution |
3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
500 cd/m² |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync |
28 - 160kHz |
| Viewable area W x H |
1895 x 1066mm, 74.6 x 41.9" |
| Bezel width (sides, top, bottom) |
14mm, 14mm, 16mm |
| Pixel pitch |
0.493mm |
| Bezel colour and finish |
black, matte |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x3 (v.2.0, max. 3840x2160 @60Hz) |
| Audio input |
Mini jack x1 (3.5mm) |
| Monitor control input |
RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini) |
| Audio output |
Mini jack x1 (3.5mm)
Speakers 2 x 16W |
| HDCP |
v.1.4 & 2.2 |
| USB ports |
x2 (v.2.0) |
| |
|
| FEATURES |
|
| Integrated software |
Android 11 OS, iiSignage², FailOver, EShare |
| WiFi |
yes (Built-in, 2.4G/ 5G) |
| Hardware |
CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB |
| Extra |
Wall mounting kit included (VESA 800x600mm) |
| Max. non-stop operating time |
24/7 |
| Anti image retention |
yes |
| Media playback |
yes |
| Housing (bezel) |
metal |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Power button, Power Indicator, Remote Sensor |
| User controls |
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|

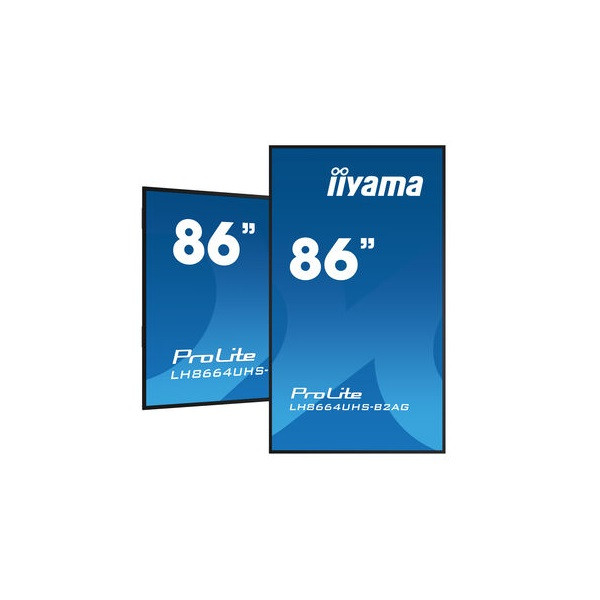

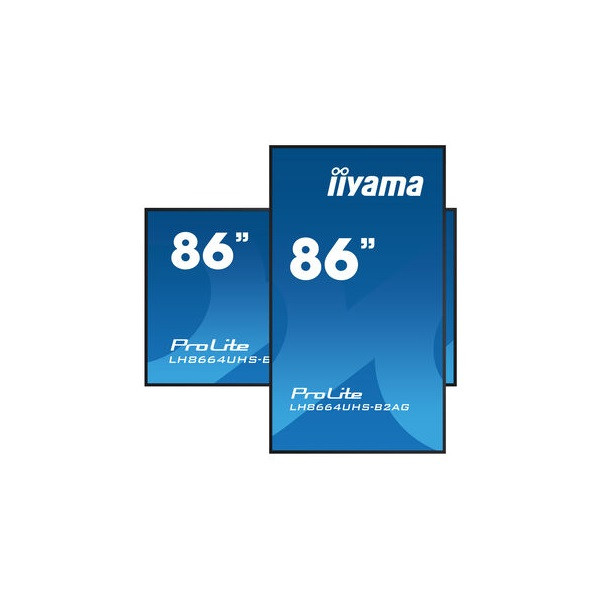

| Orientation |

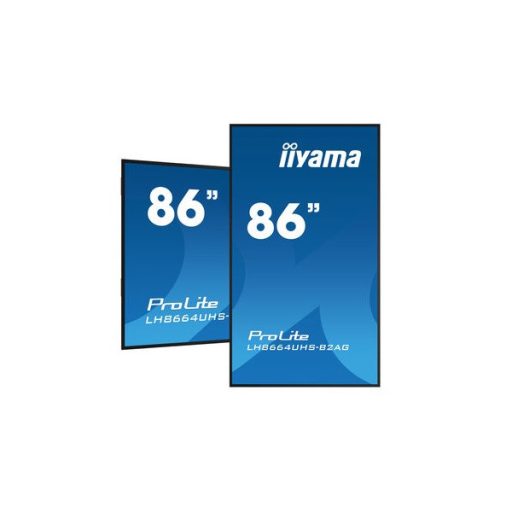

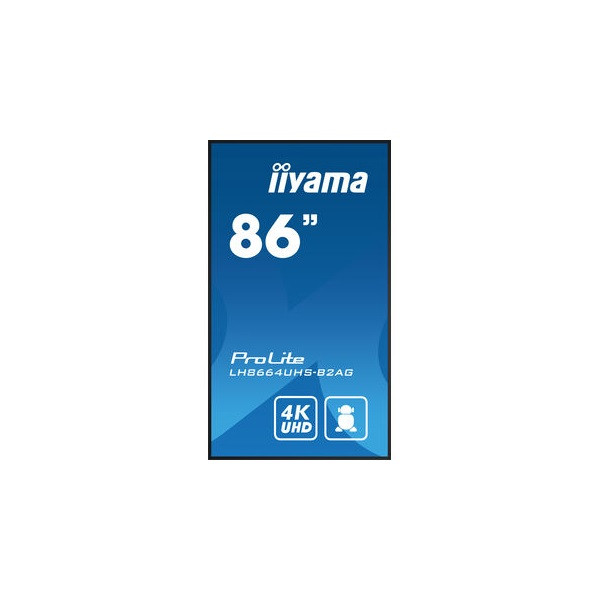

landscape, portrait |
| Fanless design |
yes |
| VESA mounting |
800 x 600mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, HDMI, RS-232c |
| Guides |
quick start guide, safety guide |
| Other |
Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
145W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) |
F |
| |
|
