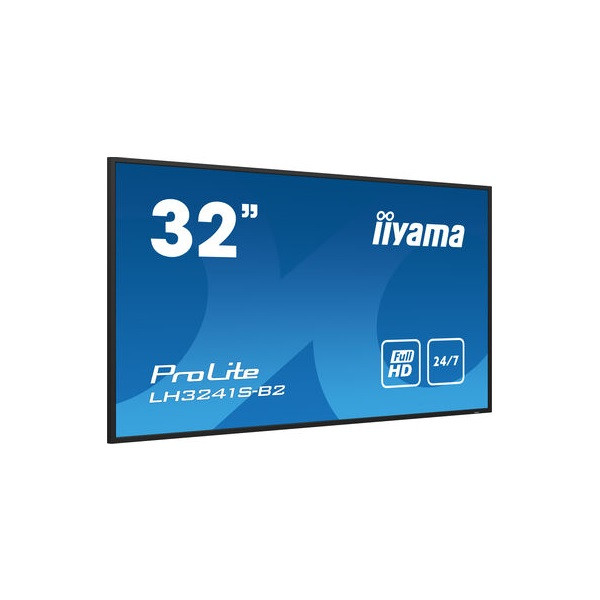

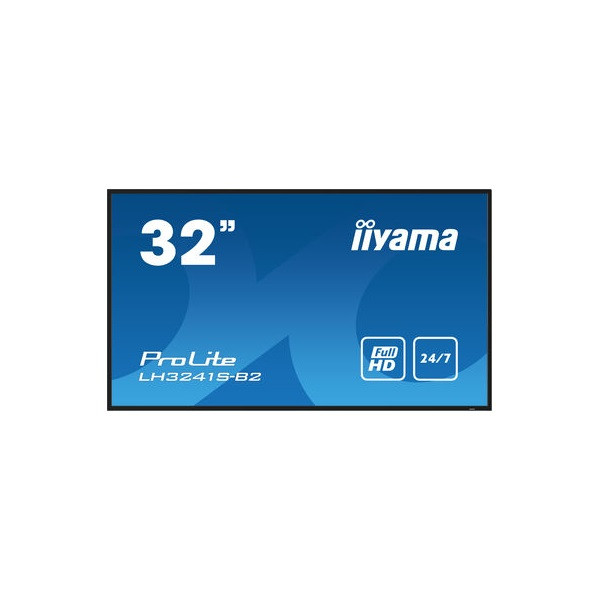

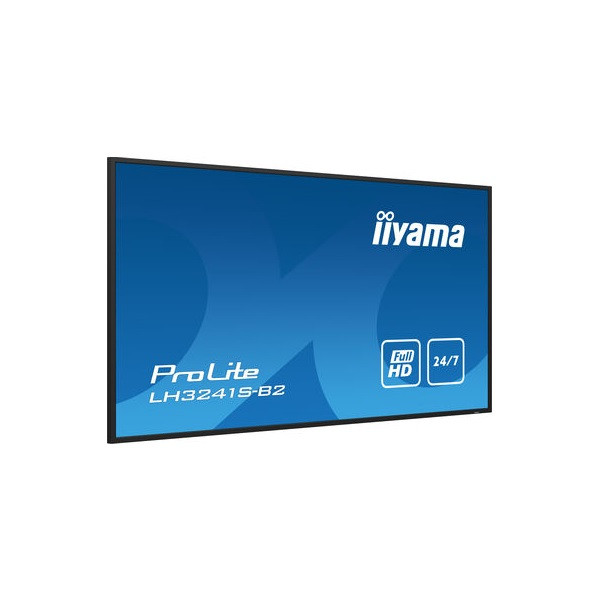

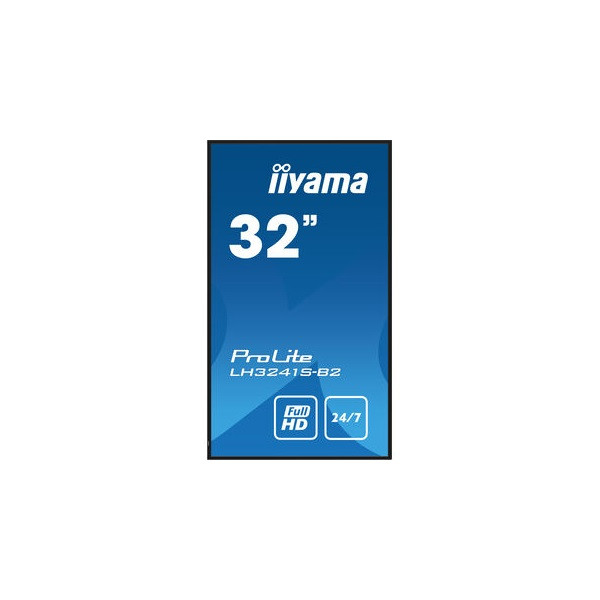

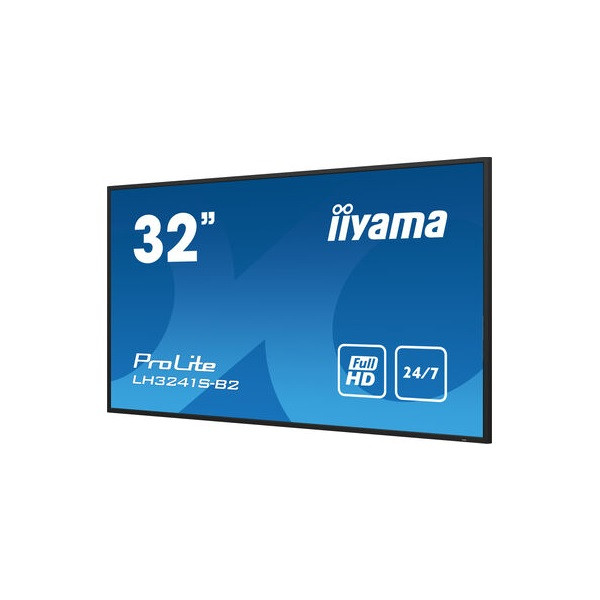

ProLite LH3241S-B2 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
31.5", 80cm |
| Panel |
IPS, haze 1% |
| Native resolution |
1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
350 cd/m² |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln 8bit (NTSC 72%) |
| Horizontal Sync |
30 - 80kHz |
| Viewable area W x H |
698.4 x 392.9mm, 27.5 x 15.5" |
| Bezel width (sides, top, bottom) |
14.75mm, 14,75mm, 15mm |
| Pixel pitch |
0.364mm |
| Bezel colour and finish |
black, glossy |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x3 |
| Audio input |
Mini jack x1 |
| Monitor control input |
RS-232c x1
RJ45 (LAN) x1
IR x1 |
| Audio output |
RCA (L/R) x1
Speakers 2 x 10W |
| Monitor control output |
RS-232c x1
IR loop through x1 |
| HDCP |
2,2 |
| USB ports |
x1 (2.0, FW update support) |
| |
|
| FEATURES |
|
| Max. non-stop operating time |
24/7 |
| Media playback |
Yes (in pivot not supported) |
| Housing (bezel) |
plastic |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, JP, NL |
| Control buttons |
Power |
| User controls |
picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset) |
| |
|
| MECHANICAL |
|

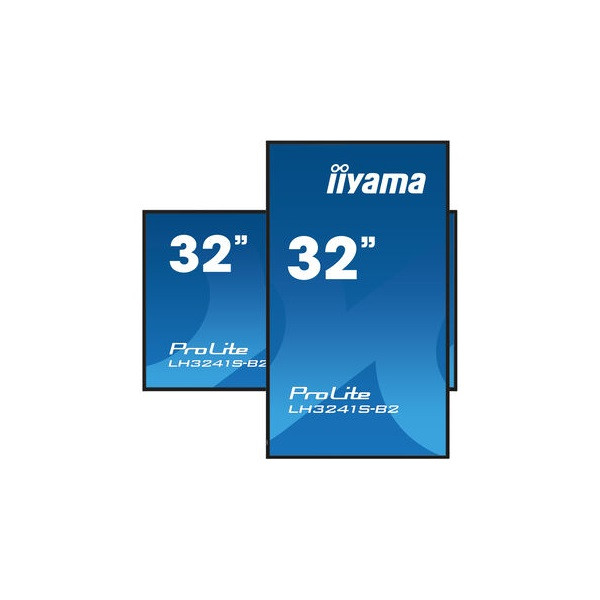

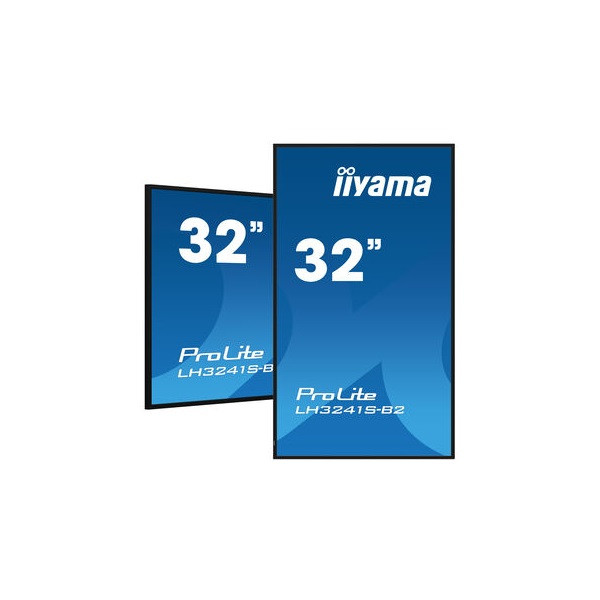

| Orientation |
landscape, portrait |
| Fanless design |
yes |

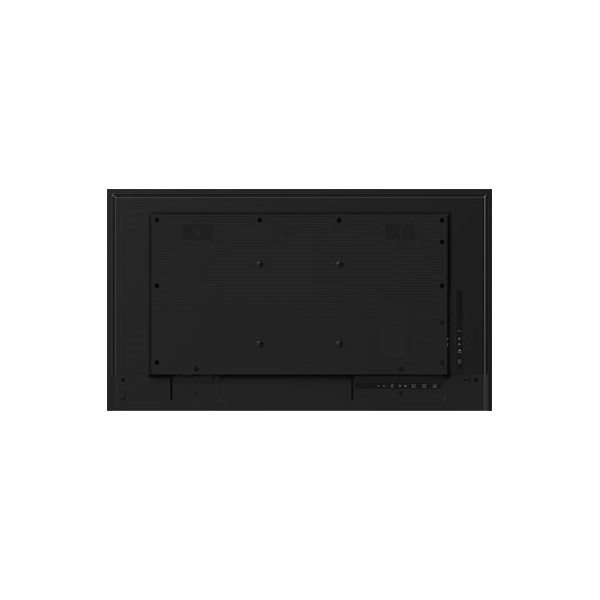

| VESA mounting |
200 x 200mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, HDMI, RS-232c |
| Guides |
quick start guide, safety guide |
| Other |
Cable Management |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
39W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
G |
| REACH SVHC |
above 0.1%: Lead |
| |
|
