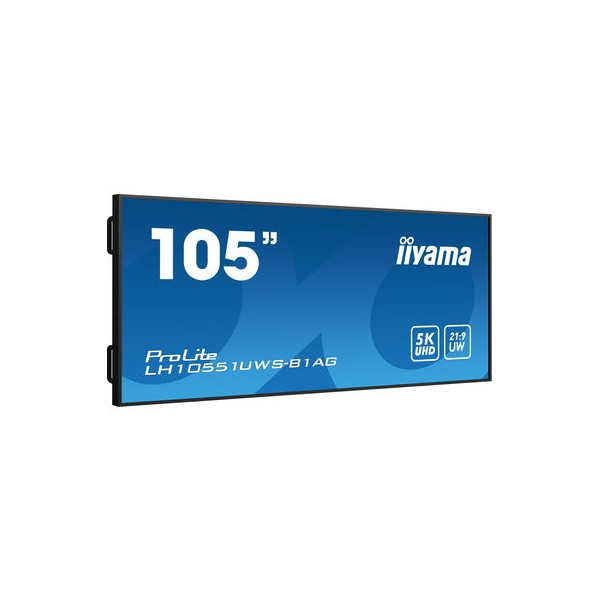

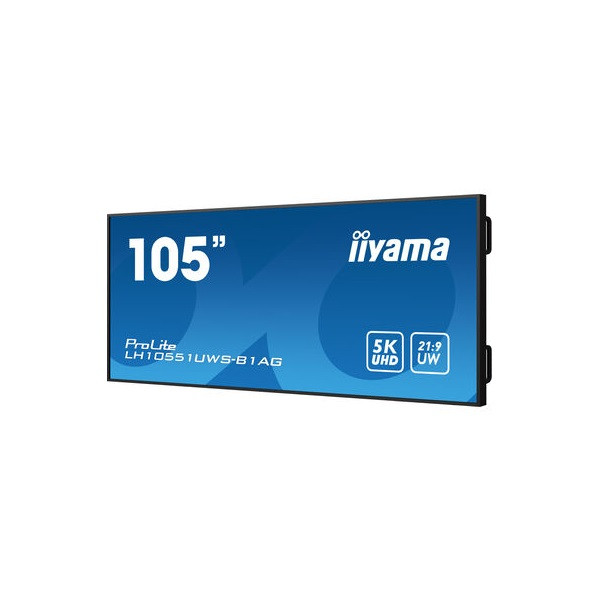

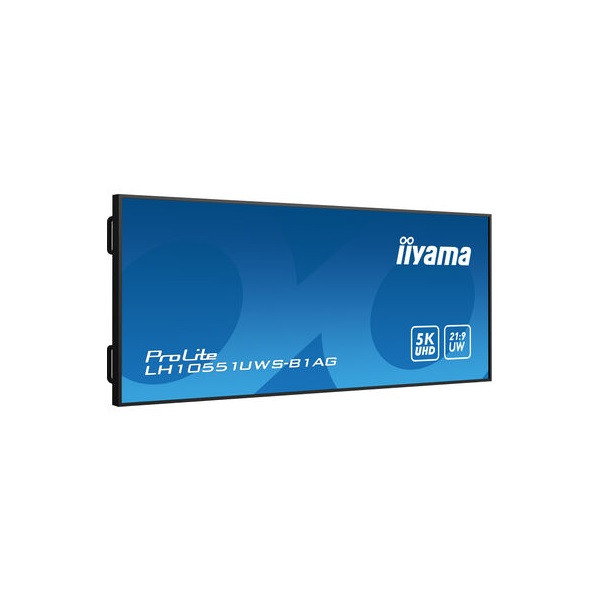

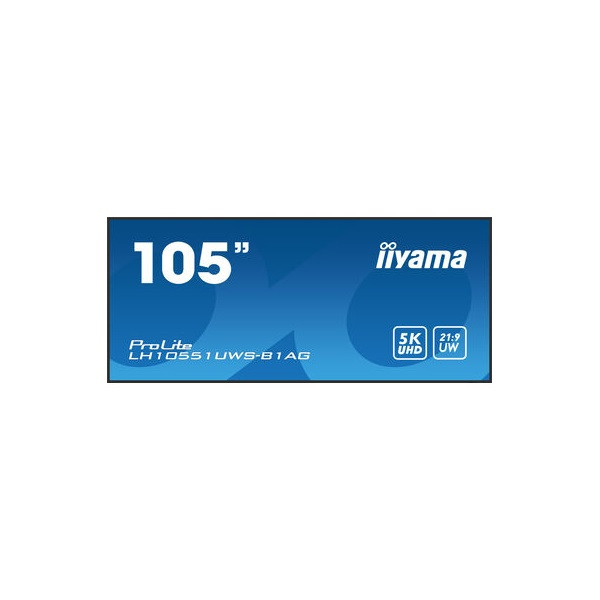

ProLite LH10551UWS-B1AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
104.7", 265.9cm |
| Panel |
IPS, AG coated glass, matte finish, haze 25% |
| Native resolution |
5120 x 2160 @60Hz (14.75 megapixel, 5KUW) |
| Aspect ratio |
21:9 |
| Panel brightness |
500 cd/m² |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07G (8 Bits+FRC) (NTSC 85%) |
| Horizontal Sync |
30 - 140kHz |
| Viewable area W x H |
2450 x 1033.6mm, 96.5 x 40.7" |
| Pixel pitch |
0.479mm |
| Bezel colour and finish |
black, matte |
| |
|

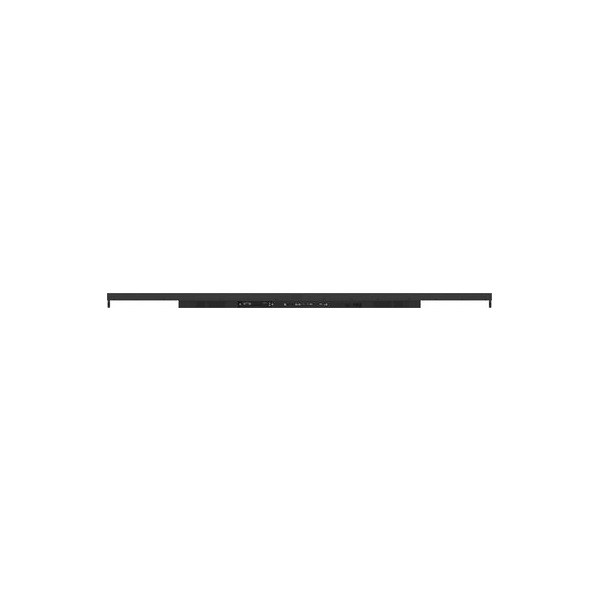

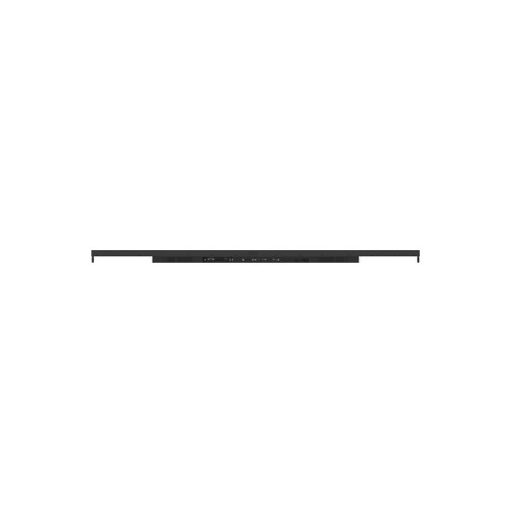

| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1 (2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (1.4, max. 5120x?2160 @60Hz)
USB-C x1 (2.0 (signal only), 5120x2160 @60Hz (DP 1.4 Alt mode)) |
| Monitor control input |
RJ45 (LAN) x1 (Supports RS232c over Ethernet only) |
| Digital signal output |
DisplayPort x1 (1.4, max. 5120x?2160 @60Hz, SST (Single Stream Transport ) Screen Mirror) |
| Audio output |
S/PDIF (Optical) x1
Mini jack x1 (3.5mm)
Speakers 2 x 10W |
| HDCP |
v.2.2 |
| USB HUB |
x4 (2.0) |
| |
|
| FEATURES |
|
| Extra |
OPS PC Slot |
| Max. non-stop operating time |
24/7 |
| Anti image retention |
yes |
| Video wall / daisy chain |
Yes, Daisy Chain via DP-OUT (SST format) |
| Housing (bezel) |
metal |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL |
| Control buttons |
Menu, Up, Down, Volume +, Volume -, Mute, Power, Power Indicator, Remote Sensor |
| User controls |
picture (brightness, contrast, sharpness), Audio (treble, bass, balance, speakers, volume), OSD setup (language, OSD H-Position, OSD V-position, transparency, OSD timeout, OSD rotation), advanced settings (colour temp., custom colour temp., gamma), general settings (power management, LED, RC lock, picture format, factory reset), other settings (source input, DP-OUT mirror, LAN, SW version) |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|

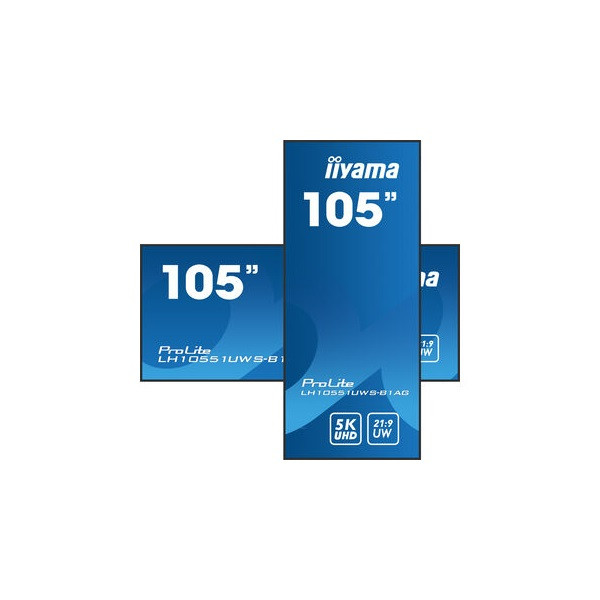

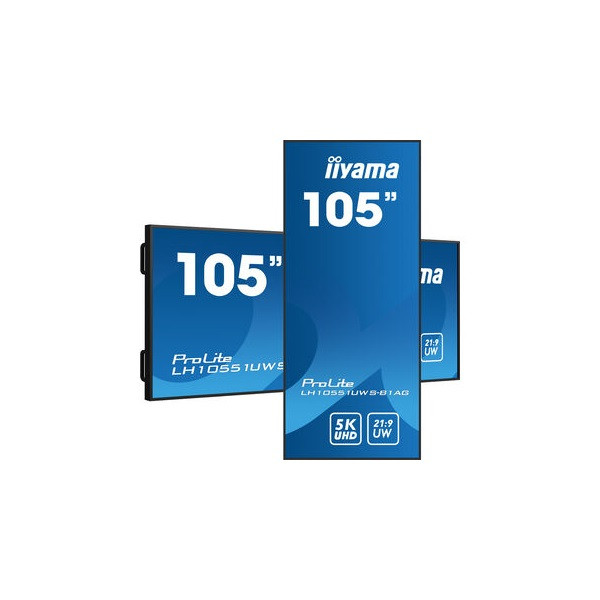

| Orientation |
landscape, portrait |
| Fanless design |
yes |

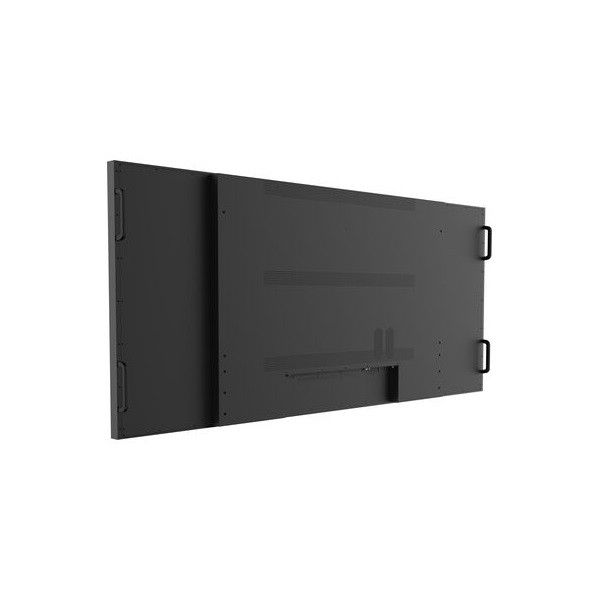

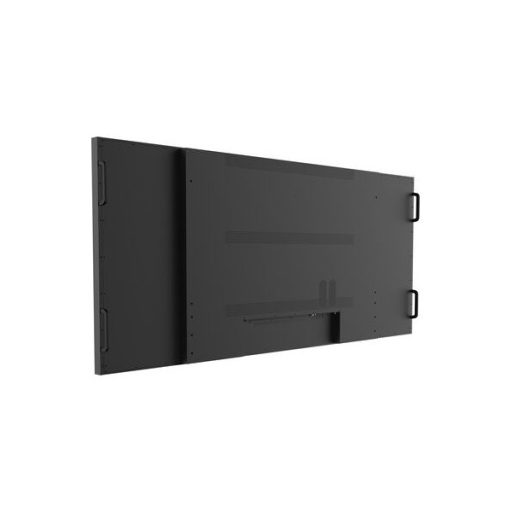

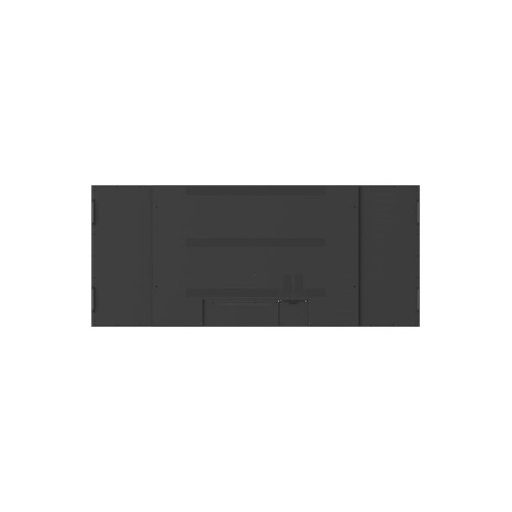

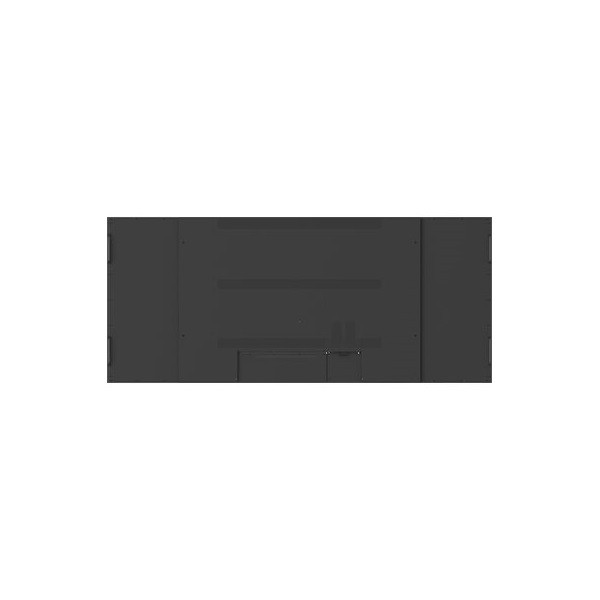

| VESA mounting |
1500 x 600mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, HDMI, RS-232c |
| Guides |
quick start guide, safety guide |
| Other |
Stickers for screw holes, wire buckles |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
247W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
G |
| |
|
