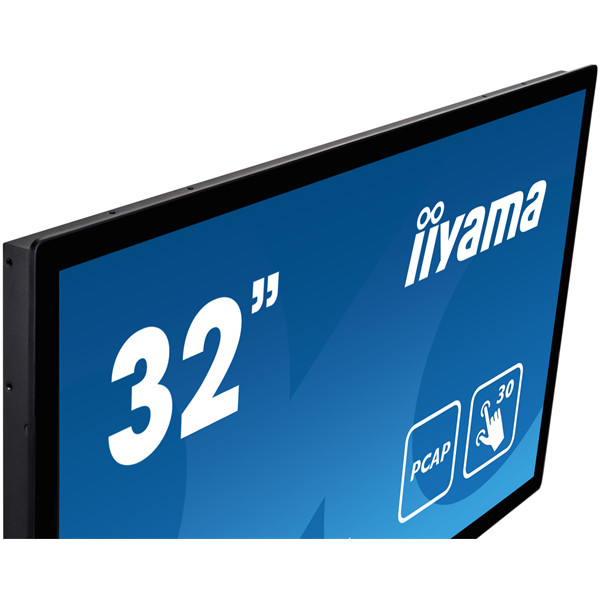

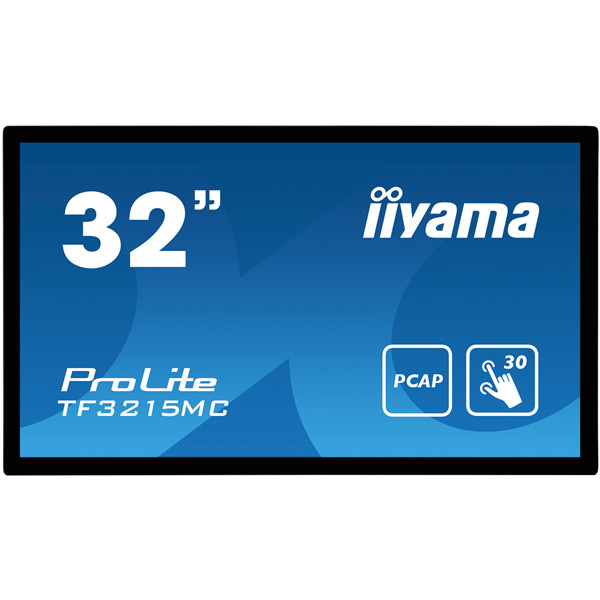

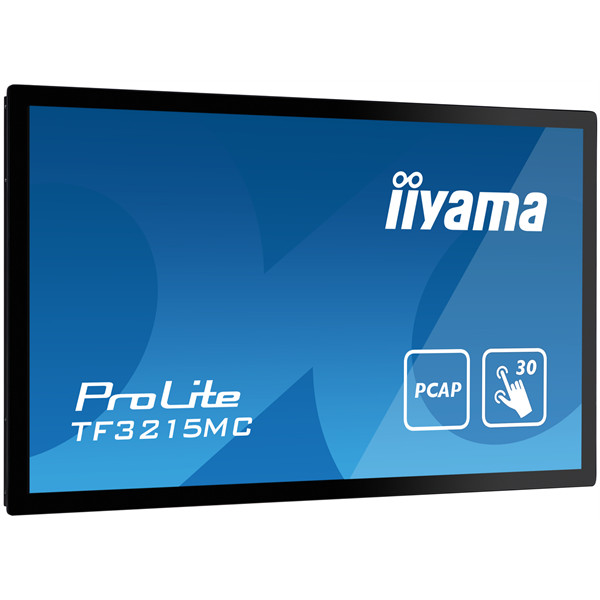

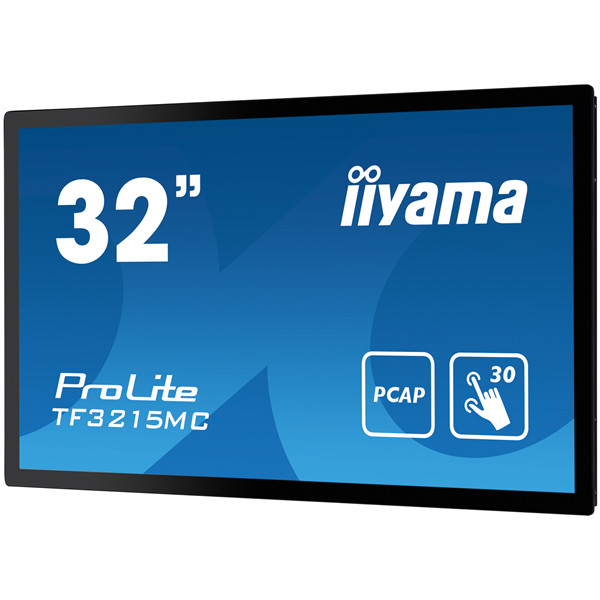

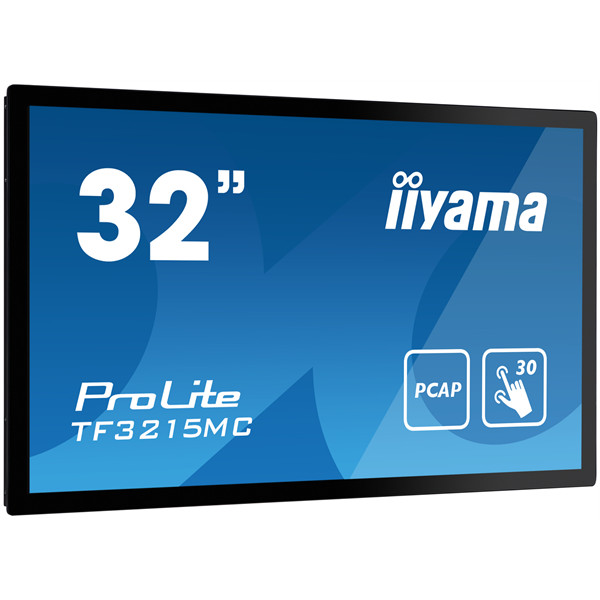

ProLite TF3215MC-B2 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Open Frame |
| Diagonal |
31.5", 80cm |
| Panel |
VA |
| Native resolution |
1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
500 cd/m² |
| Brightness |
460 cd/m² with touch |
| Light transmittance |
92% |
| Static contrast |
3000:1 with touch |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln 8bit |
| Horizontal Sync |
30 - 68kHz |
| Viewable area W x H |
698.4 x 392.8mm, 27.5 x 15.5" |
| Pixel pitch |
0.3637mm |
| Bezel colour and finish |
black |
| Reommended usage |
retail |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
30 (HID, only with supported OS) |
| Touch accuracy |
+- 2mm |
| Touch method |
finger, glove (latex), capacitive stylus |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass |
6mm |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Analog signal input |
VGA x1 |
| Digital signal input |
HDMI x1
DisplayPort x1 |
| HDCP |
yes |
| |
|
| FEATURES |
|
| Extra |
Touch Through-Glass |
| Kiosk mode |
yes |
| Max. non-stop operating time |
24/7 |
| Glass thickness |
3mm |
| Glass hardness |
7H |
| 60950 Ball drop test |
yes |
| Impact testing |
IK-7 |
| Water and dust protection |
IP65 (front) |

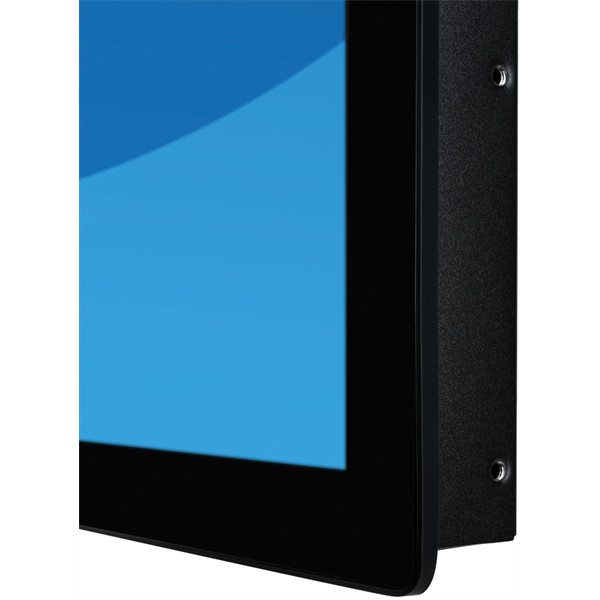

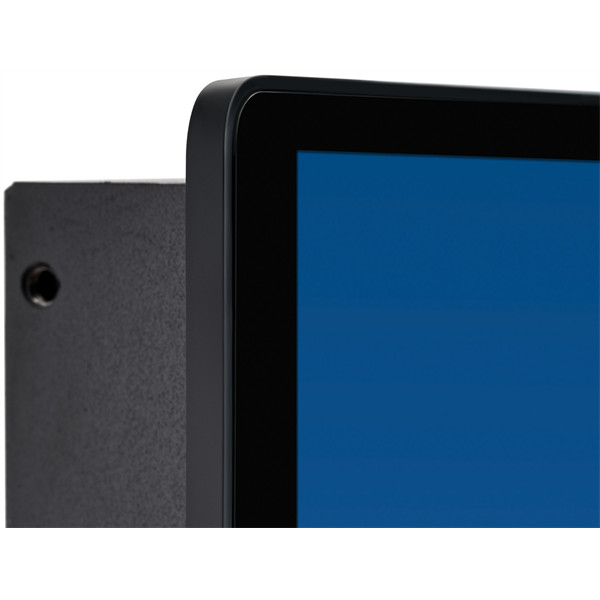

| Housing (bezel) |
metal |
| Water tight seal |
yes |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, CN, JP |
| Control buttons |
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| User controls |
Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|

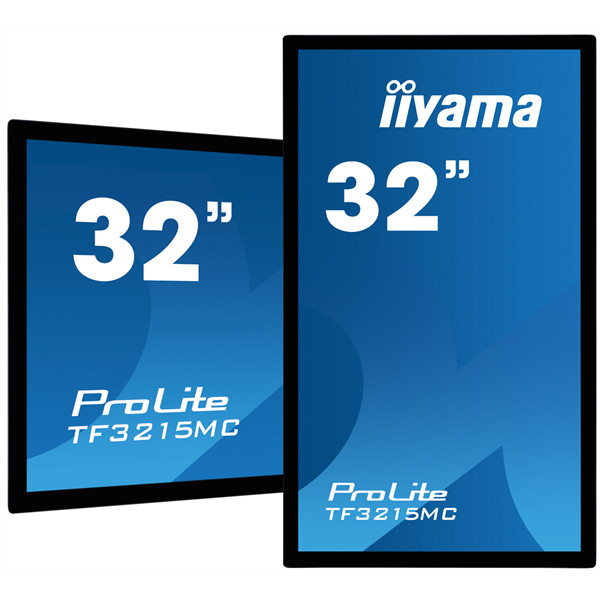

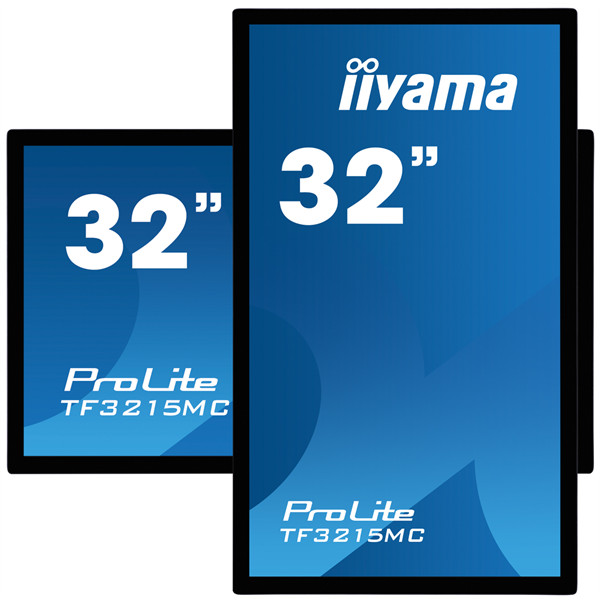

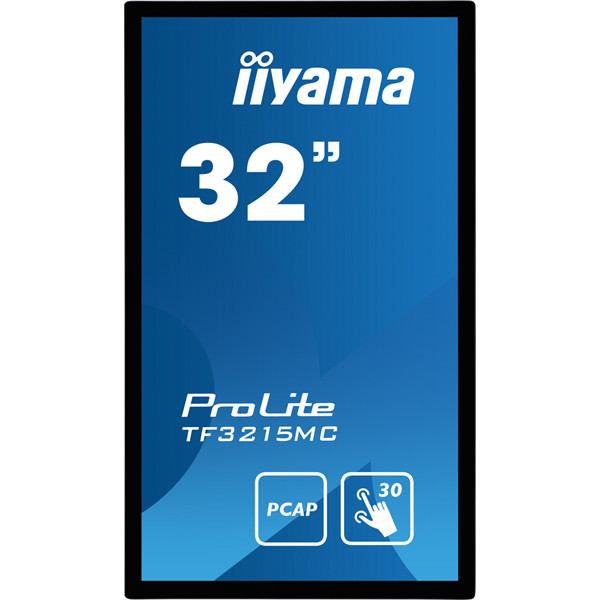

| Orientation |
landscape, portrait |
| Fanless design |
yes |
| VESA mounting |
200 x 200mm |
| Cable management system |
yes |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50000 hours |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
32W typical, 1.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
F |
| REACH SVHC |
above 0.1%: Lead |
| |
|
