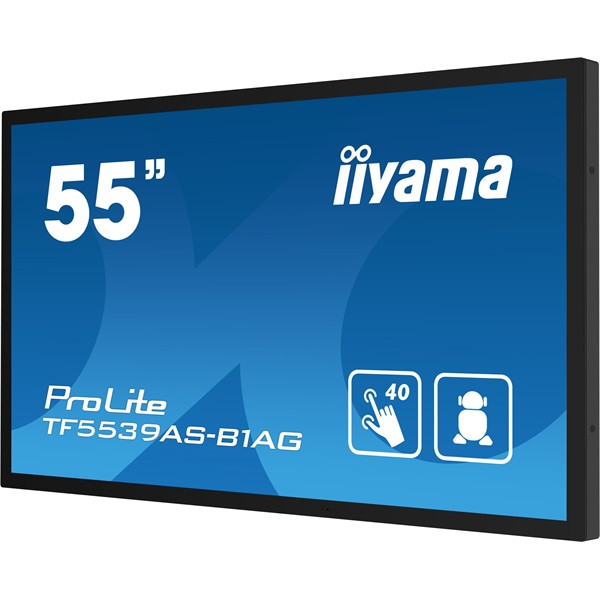

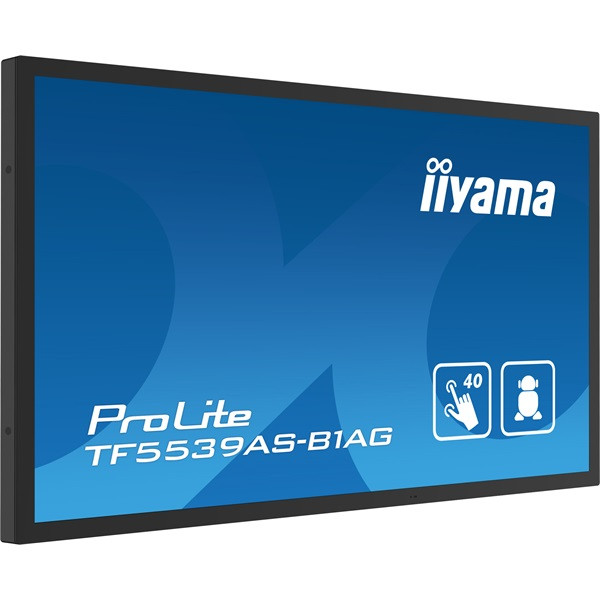

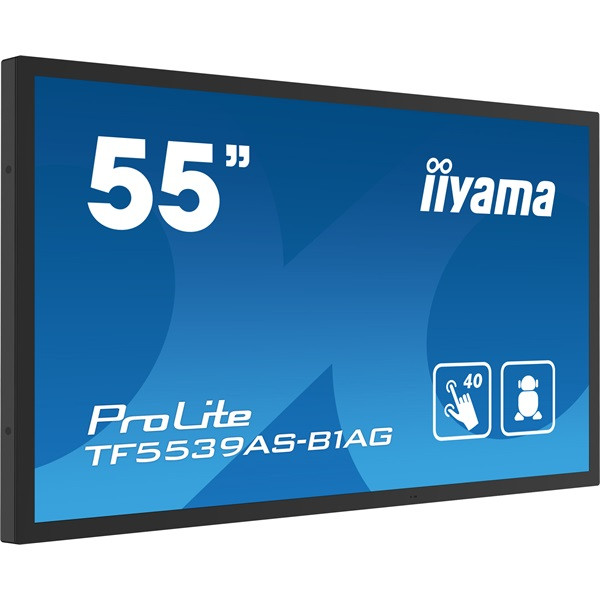

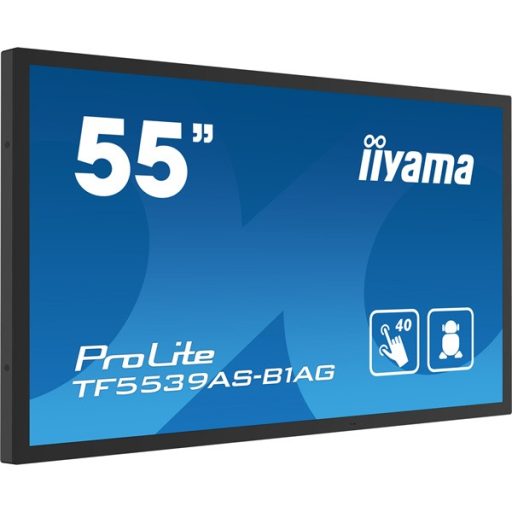

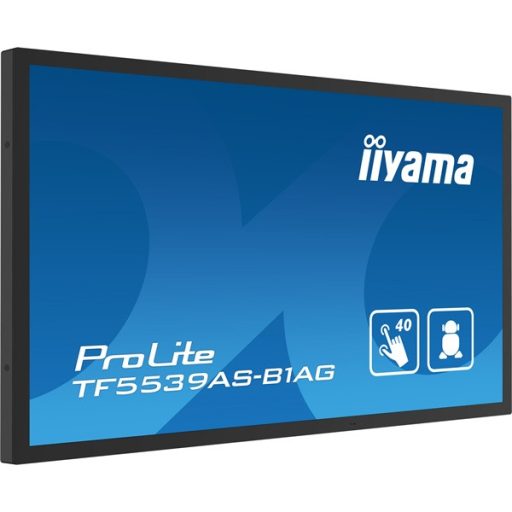

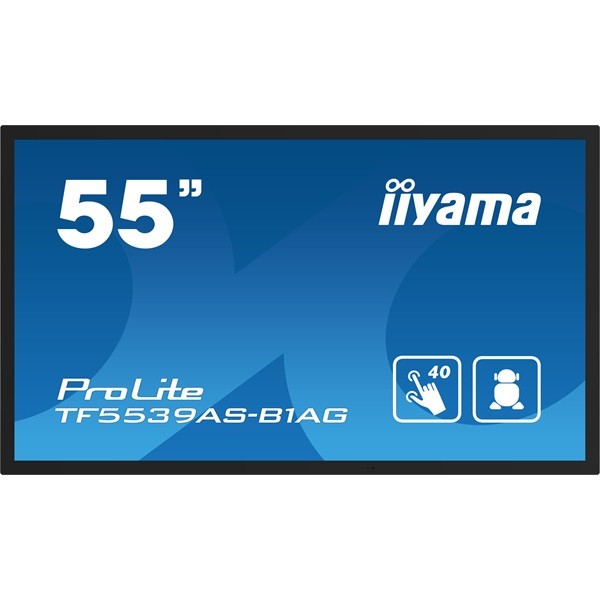

ProLite TF5539AS-B1AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass, Open Frame |
| Diagonal |
54.6", 139cm |
| Panel |
IPS LED, AG coated glass, matte finish |
| Native resolution |
3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio |
16:9 |
| Panel brightness |
500 cd/m² |
| Brightness |
435 cd/m² with touch |
| Light transmittance |
87% |
| Static contrast |
1200:1 |
| Response time (GTG) |
8ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07G (8 Bits+FRC) (72% NTSC) |
| Horizontal Sync |
28 - 160kHz |
| Viewable area W x H |
1209.6 x 680.4mm, 47.6 x 26.8" |
| Bezel width (sides, top, bottom) |
30mm, 30mm, 30mm |
| Pixel pitch |
0.315mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
bonded PCAP |
| Touch points |
40 |
| Touch accuracy |
+- 2.5mm |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass |
6mm |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x2 (2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz) |
| Monitor control input |
RS-232c x1 (Get/Set Command)
RJ45 (LAN) x1 (Control and Internet) |
| Audio output |
Mini jack x1
Speakers 2 x 10W |
| HDCP |
2,2 |
| USB ports |
x2 (2.0 x2 (Type A)) |
| |
|
| FEATURES |
|
| Integrated software |
Android 11 OS, iiSignage², EShare, FailOver |
| Hardware |
CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB |
| Extra |

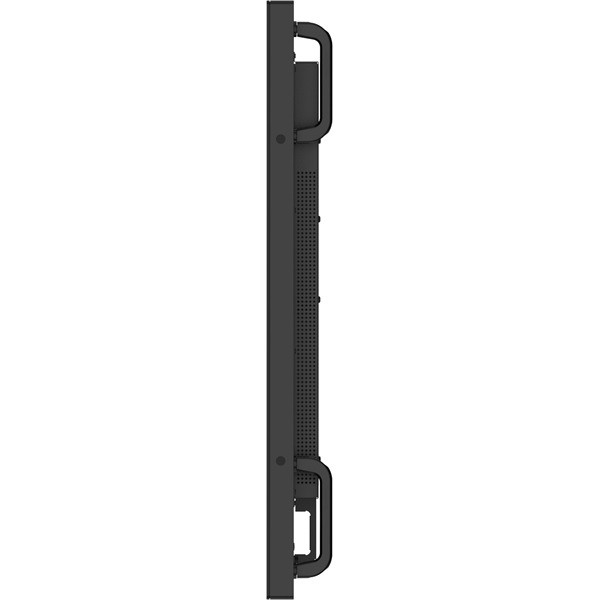

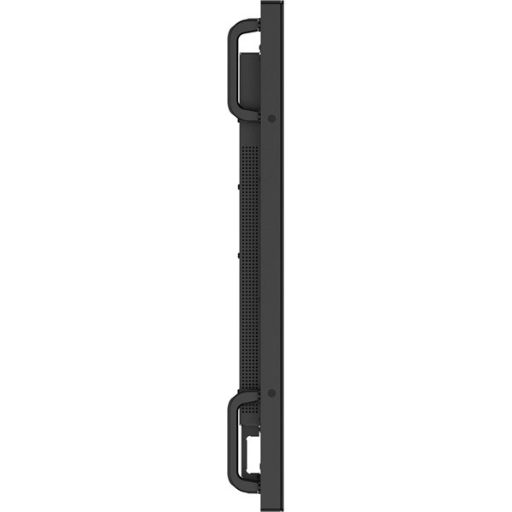

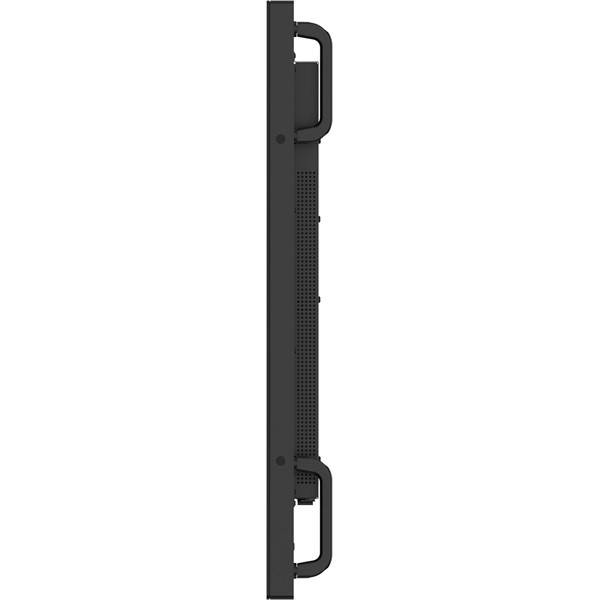

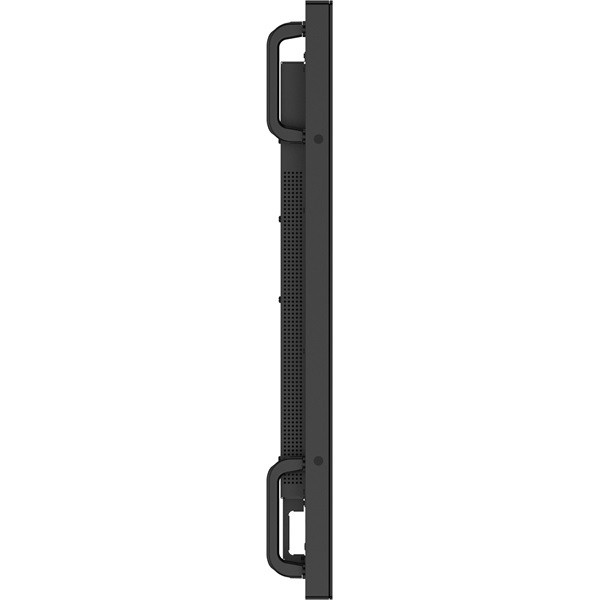

handles, Touch Through-Glass |
| Kiosk mode |
yes |
| Max. non-stop operating time |
24/7 |
| Anti image retention |
yes |
| Glass thickness |
4mm |
| Glass hardness |
7H |
| 60950 Ball drop test |
yes |
| Water and dust protection |
IP65 (front) |
| Housing (bezel) |
metal |
| OSD key lock |
yes |
| Remote control lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Power |
| User controls |
picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
| Plug&Play |
DDC2B |
| |
|
| MECHANICAL |
|
| Orientation |

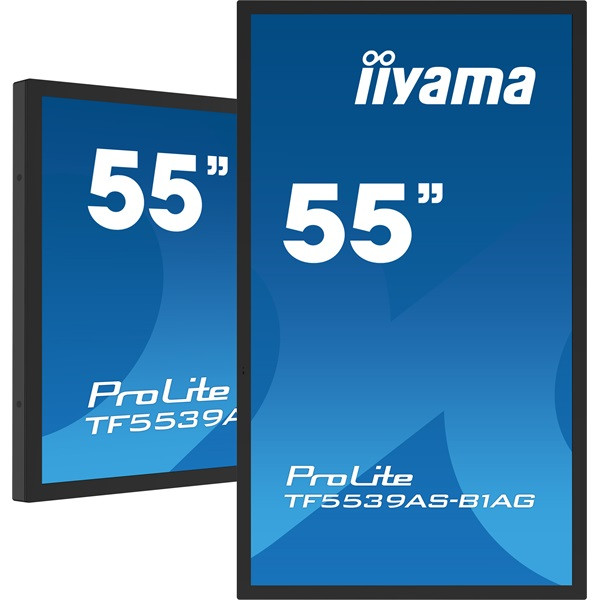

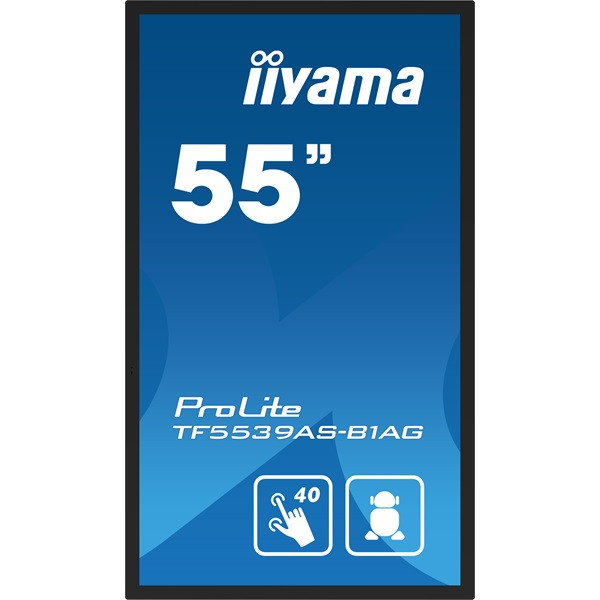

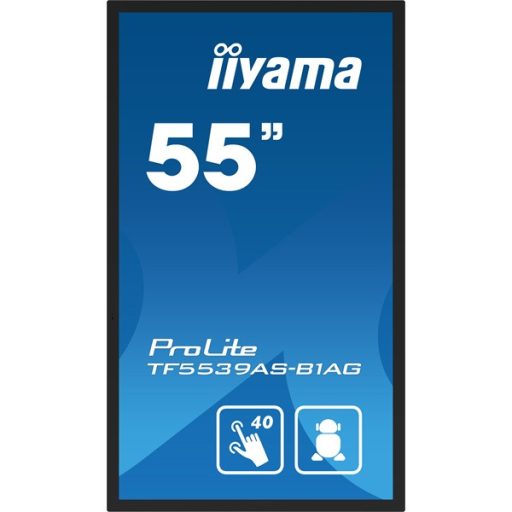

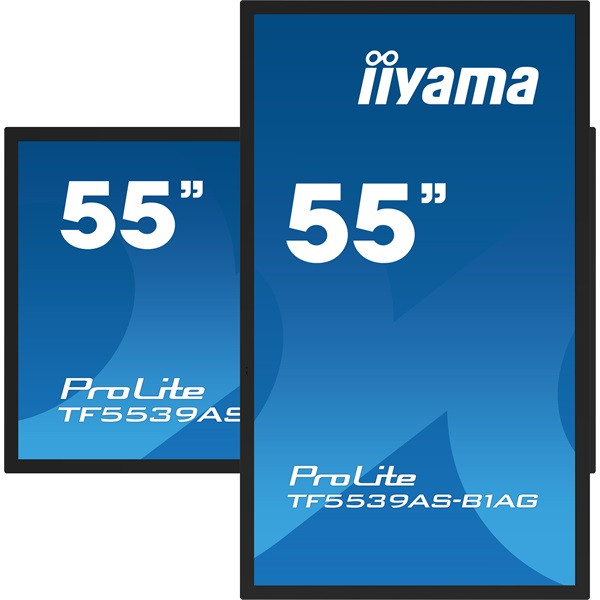

landscape, portrait, face-up |
| VESA mounting |
400 x 400mm |
| Mini PC mount |
VESA 100 x 100, NUC INTEL |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) |
| Guides |
quick start guide, safety guide |
| Cable cover |
yes |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
139W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
1274 x 744.8 x 65.2mm |
| Box dimensions W x H x D |
1428 x 894 x 185mm |
| Weight (without box) |
39.6kg |
| Weight (with box) |
47.2kg |
| EAN code |
4948570123896 |
