Description
Product name

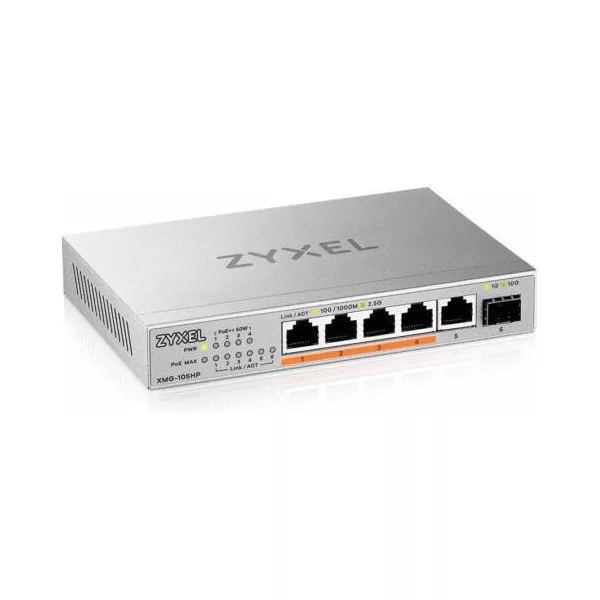

5-Port 2.5G PoE Unmanaged Switch with 10G Uplink
Port Density
Total port count
6
2.5GBASE-T
5
1G SFP/10G SFP+
1
PoE
IEEE 802.3bt (PoE++, 60 W)
4
Total PoE budget (watts)
70
Performance
Switching capacity (Gbps)
45
Forwarding rate (Mpps)
33.5
Packet buffer (byte)
1 MB
MAC address table
4 K
Jumbo frame (byte)
12 K
Power
Input
100 - 240 V AC, 50/60 Hz
Power supply
External
Max. power consumption (watts)
90
Min. power consumption (watts)
1.62
Physical Specifications
Dimensions
(WxDxH)(mm/in.)
160 x 110 x 26/6.30 x 4.33 x 1.02
Weight
(kg/lb.)
0.492/1.09
Green Features
Fanless
Yes
Environmental Specifications
Operating
Temperature: -20°C to 40°C/-4°F to 104°F
Humidity: 10% to 95% (non-condensing)
Storage
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 5% to 95% (non-condensing)
MTBF (hr)
1,255,904
Heat dissipation (BTU/hr)
56.27
