Description
Product name

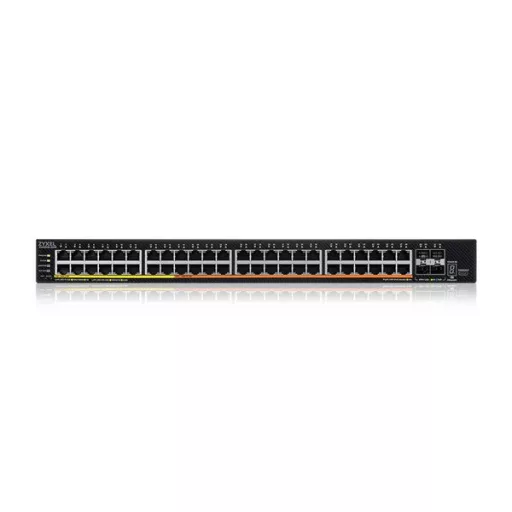

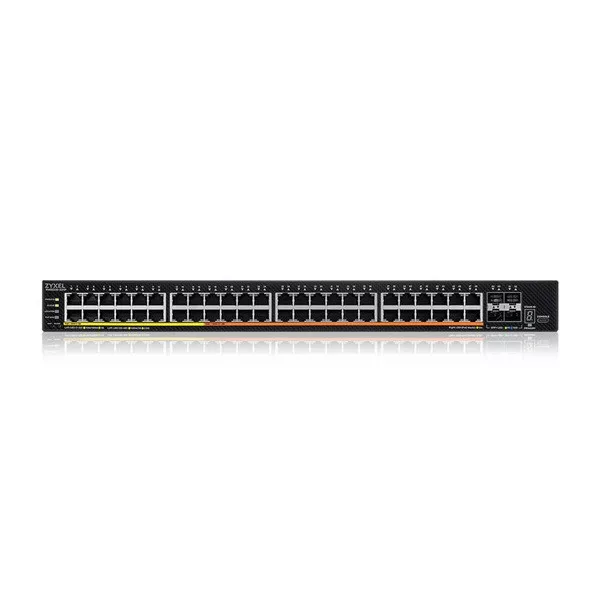

32-port GbE and 16-port 2.5G PoE L3 Access Switch with 4 10G Uplink
Switch class
Layer 3 Access
Port Density
Total port count
52
10M/100M/1G (RJ-45)
32
100M/1G/2.5G Ethernet (RJ-45)
16
10 Gigabit SFP+
4
PoE
PoE ports
48
Total PoE budget (watts)
Internal AC input: 960
External DC input: 2,400
IEEE 802.3at (PoE+)
Yes
Port 1 ~ Port 16
IEEE 802.3bt PoE++ (60W)
Yes
Port 17 ~ Port 32 (100M/1G)
Port 33 ~ Port 48 (100M/1G/2.5G)
Performance
Switching capacity (Gbps)
224
Forwarding rate (Mpps)
166.6
Packet buffer (byte)
2MB
MAC address table
32K
Jumbo frame (byte)
12KB
L3 forwarding table (IPv4/IPv6)
Max. 2K IPv4 entries;
Max. 2K IPv6 entries
Routing table
64
VLAN routing
Yes
IP interface (IPv4/IPv6)
32/32
Flash/RAM
64MB/1GB
Power

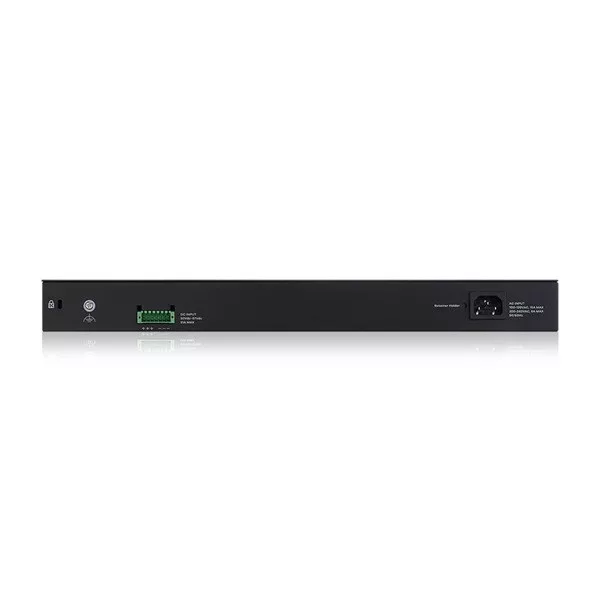

Input
100-240V AC, 50/60Hz
50-57V DC
Min. power consumption (watts)
Without any port connection
AC: 37.5/DC: 32
Max. power consumption (watts)
All ports full load without PoE
AC: 72.4/DC: 55.5
Max. power consumption (watts)
All ports full load with PoE
AC: 1187.9/DC: 2525
Physical Specifications
Dimensions
(WxDxH)(mm/in.)
441 x 330 x 44/17.36 x 12.99 x 1.73
Weight
(kg/lb.)
5.03/11.09
Included accessories
Power cord
Rack mounting kit
ESD/Surge Protections
Ethernet port surge protection
2KV
Power supply surge protection
Line-GND: 2KV
LIne-Line: 1KV
ESD protection (air/contact)
8KV/6KV
Environmental Specifications
Operating
Temperature: -20°C to 50°C/-4°F to 122°F
Humidity: 5% to 95% (non-condensing)
Storage
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 5% to 95% (non-condensing)
MTBF (hr @ 25°C)
AC: 389,089.55/DC: 401,112.30
Heat dissipation (BTU/hr)
4,153.7
Acoustic noise @ 25°C (min/max, dBA)
41.59/63.76
