| Mechanical |
| Dimensions |
139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3") |
| Weight |
460 g (1 lb) |
| Enclosure material |
Plastic, aluminum |
| Mount material |
Aluminum |
| Hardware |
| Networking interface |

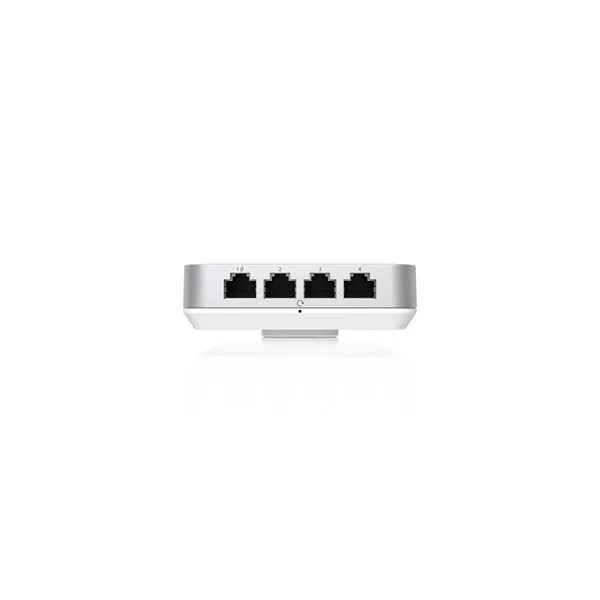

(1) Data-in: GbE RJ45 port
(4) Data-out: GbE RJ45 ports |
| Management interface |
Ethernet
Bluetooth |
| PoE interface |
(1) PoE in (PoE output not used)
(1) PoE out (Requires a PoE+ switch) |
| Power method |
PoE
PoE+ (Required for PoE output) |
| Power supply |
UniFi PoE switch
48V, 0.5A PoE adapter (Optional) |
| Max. power consumption |
13W (Excluding PoE output) |
| Max PoE wattage per port by PSE |
15.4W*
*Requires a PoE+ switch |
| Voltage range PoE mode |
44—57V DC |
Max. TX power
2.4 GHz
5 GHz
6 GHz |
22 dBm
26 dBm
– |
MIMO
2.4 GHz
5 GHz
6 GHz |
2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
– |
Max. data rate
2.4 GHz
5 GHz
6 GHz |
573.5 Mbps (BW40)
4.8 Gbps (BW160)
– |
Antenna gain
2.4 GHz
5 GHz
6 GHz |
5 dBi
5.9 dBi
– |
| LED |
White/blue |
| Button |
Factory reset |

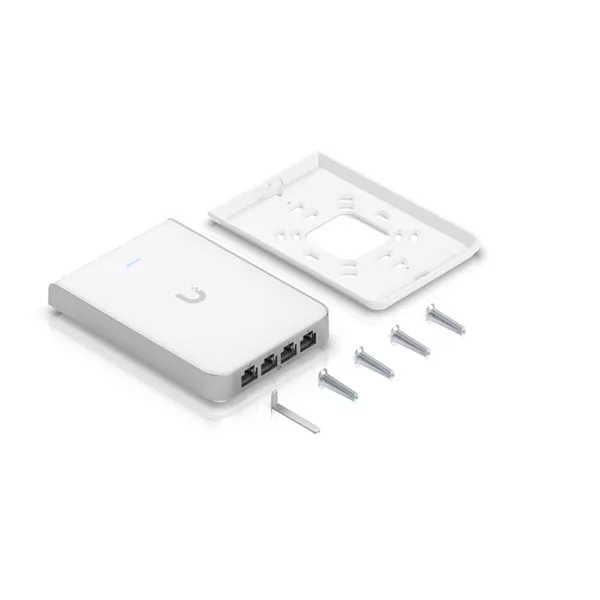

| Mounting |
Wall (Included) |
| Ambient operating temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient operating humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
| Software |
| WiFi standards |
802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID |
8 per radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
300+ |
| Zero-wait DFS |
Yes*
*Supported with upcoming firmware versions. |
| Supported Data Rates |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac |
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements |
| UniFi Network |
Version 6.4.52 and later |
