UBiQUiTi Wireless Access AirFiber 60HD, 60GHz 1x10000Mbps SFP+, GPS, kültéri - AF60-HD

O189 x 89 mm (O7.4 x 3.5")

Without mount: 1.8 kg (3.9 lb)
With mount: 2.95 kg (6.5 lb)

Aluminum alloy, UV stabilized plastic

Stainless steel (SUS304)

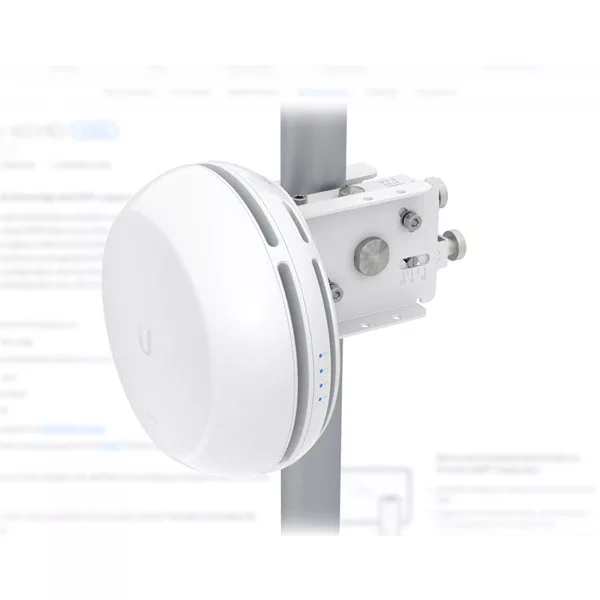

60G precision alignment pole mount (included)

64 N at 200 km/h (14.39 lbf at 125 mph)

IPX6

Quad-Core ARM^® Cortex^® A72 at 1.6 GHz

2 GB DDR4

(1) GbE RJ45 port
(1) 1/10G SFP+ port

Factory reset

Internal

29.31W

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-Pairs (4, 5+; 7, 8-)

48VDC, 0.65A gigabit PoE adapter (included)

48VDC ± 10%

-40 to 55° C (-40 to 131° F)

5 to 95% noncondensing

FCC, IC, CE, terragraph

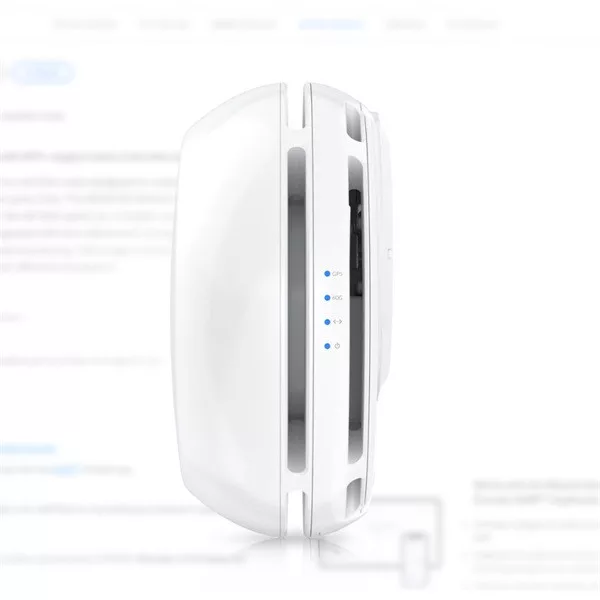

Flashing white: bootup in progress
White: not connected to UISP console
Blue: connected to UISP console

Flashing blue: ethernet activity

Blue: receiving at least (4) GPS satellite signals

Blue: active connection

60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)

2 km

WPA2-PSK (AES)

50/50

airFiber^®

PtP only

UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery

Beamform info, discovery utility, ping, trace route, speed test

Bridge mode

GPS sync*
_{*GPS is used to populate UI/UX elements.}

Bluetooth management for easy setup over UISP app

WEB UI

Any modern WEB browser/iOS or Android based smartphone

57 to 66 GHz

_{^{* Depends on regulatory region.}}

Yes

2160 MHz/4320 MHz (with channel bonding enabled)

58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*

_{*It depends on the channel bandwidth}

HPOL: NaN (the antenna is only vertically polarized)

VPOL: 3°

Elevation: 3°

0°
