UBiQUiTi Switch 16x10Gbps + 8x2,5Gbps + 2x25Gbps SFP28, Menedzselhető, Rackes - USW-PRO-XG-24

Dimensions

442 x 480 x 44 mm (17.4 x 18.9 x 1.7")

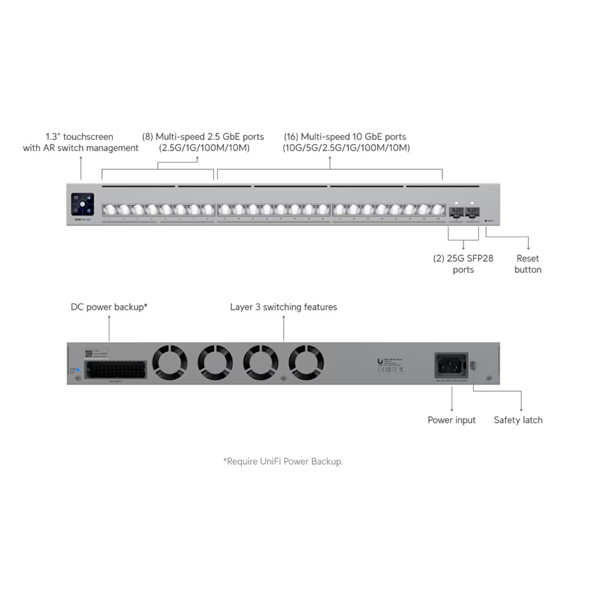

Port Layout

2.5 GbE RJ45

8 (2.5G/1G/100M/10M)

10 GbE RJ45

16 (10G/5G/2.5G/1G/100M/10M)

25G SFP28

2 (25G/10G/1G)

Redundancy

DC Power Backup

Layer 3

?

Form Factor

Rack mount (1U)

Etherlighting™

?

Performance

Switching Capacity

460 Gbps

Total Non-Blocking Throughput

230 Gbps

Forwarding Rate

342 Mpps

Supported VLANs

1,000

MAC Address Table Size

128,000

L3 Table Size

ARP Entries

128,000

IPv4 Routes

256,000

Packet Buffer Size

8 MB

Access Lists

IPv4

256

MAC

256

Layer 3 Features

DHCP Server (Local Networks)

?

DHCP Relay

?

Inter-VLAN Routing (Local Networks)

?

Static Routing (Local Networks)

?

Layer 2 Features

LACP Port Aggregation

?

STP & RSTP

?

IGMP Snooping

?

802.1X Control

?

MAC-Based ACLs & Device Isolation

?

DHCP Snooping & Guarding

?

Egress Rate Limit

?

Flow Control

?

Storm Control

?

Multicast & Broadcast Rate Limiting

?

MAC Address Blocking

?

IP-Based ACLs & Network Isolation

?

MAC-Based Port Restriction

?

Port Isolation

?

Port Mirroring

?

Jumbo Frames

?

LLDP-MED

?

Voice VLAN

?

Loop Protection

?

Hardware

Max. Power Consumption

150W

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 200W

Supported Voltage Range

100—240V AC

Management

Ethernet AR

Weight

Without mounting brackets: 7.2 kg (15.9 lb) With mounting brackets: 7.3 kg (16.1 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)

LCM Display

1.3" touchscreen

ESD/EMP Protection

Air: ± 30kV, contact: ± 20kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

?

SFP28

?

LEDs

RPS

?

NDAA Compliant

?

Certifications

CE, FCC, IC
