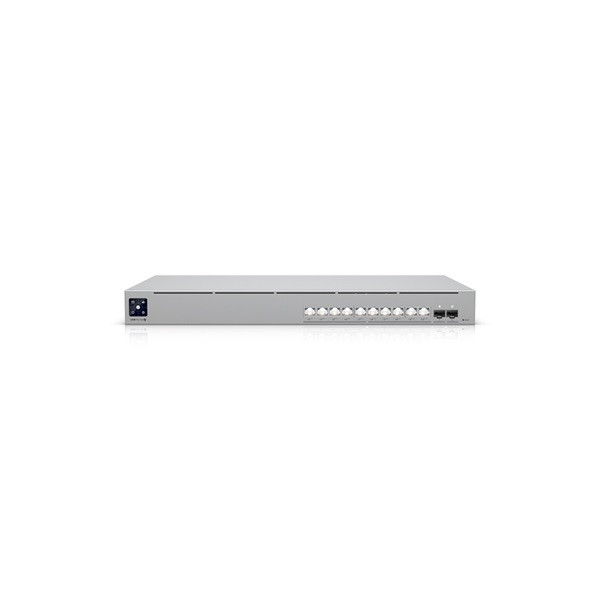

UBiQUiTi Switch 10x10Gbps (10xPOE+++) + 2x10Gbps SFP+, Menedzselhető, Rackes - USW-PRO-XG-10-POE

Dimensions

442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")

Port Layout

10 GbE RJ45

10 (All PoE+++) (10G/5G/2.5G/1G/100M)

10G SFP+

2 (10G/1G)

Max. PoE Output

Up to PoE+++

Total PoE Availability

400W

Redundancy

DC Power Backup

Layer 3

?

Form Factor

Rack mount (1U)

Etherlighting™

?

Performance

Switching Capacity

240 Gbps

Total Non-Blocking Throughput

120 Gbps

Forwarding Rate

179 Mpps

Supported VLANs

1,000

MAC Address Table Size

32,000

L3 Table Size

ARP Entries

12,000

IPv4 Routes

12,000

Packet Buffer Size

2 MB

Layer 3 Features

DHCP Server (Local Networks)

?

DHCP Relay

?

Inter-VLAN Routing (Local Networks)

?

Static Routing (Local Networks)

?

Layer 2 Features

LACP Port Aggregation

?

STP & RSTP

?

QoS (DSCP)

?

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

?

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

?

IGMP Snooping

?

802.1X Control

?

MAC-Based ACLs & Device Isolation

?

DHCP Snooping & Guarding

?

Egress Rate Limit

?

Flow Control

?

Storm Control

?

Multicast & Broadcast Rate Limiting

?

MAC Address Blocking

?

IP-Based ACLs & Network Isolation

?

MAC-Based Port Restriction

?

Port Isolation

?

Port Mirroring

?

Jumbo Frames

?

LLDP-MED

?

Voice VLAN

?

Loop Protection

?

Hardware

PoE Ports

PoE+++

10

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

30W

PoE++

60W

PoE+++

90W

Max. Power Consumption

65W (Excluding PoE output) 520W (Including PoE output)

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 550W

Supported Voltage Range

100—240V AC

Management

Ethernet AR

Weight

Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

400~1200 mm (15.7-47.2"")

LCM Display

1.3" touchscreen

ESD/EMP Protection

Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

?

SFP+

?

LEDs

RPS

?

System

?

NDAA Compliant

?

Certifications

CE, FCC, IC

Software

Application Requirements

UniFi Network

Version 9.1.120 and later
