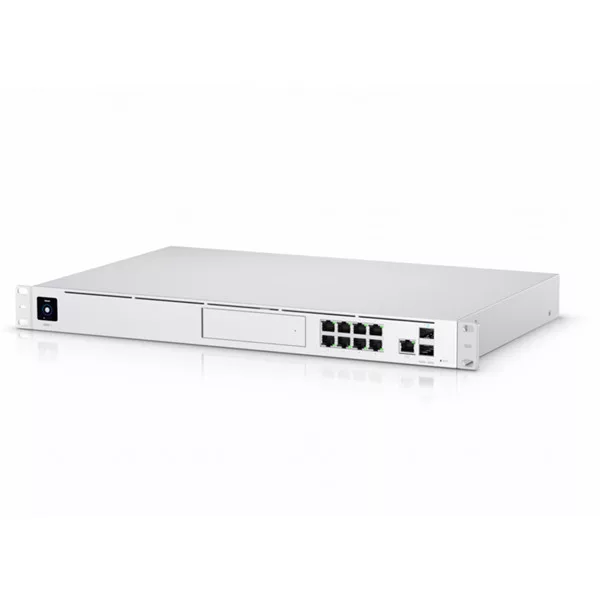

The Dream Machine Pro (UDM Pro) is an enterprise-grade UniFi OS Console that offers a scalable networking experience and comprehensive platform for multi-application use.
The UDM Pro is an all-in-one networking console that runs every UniFi OS application, like Network and Protect. It features a built-in security gateway, 10G SFP+ WAN support, an 8-port Gigabit switch, and network video recorder that supports compatible 3.5" hard disk drives (HDDs).
DIMENSIONS
- Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24")
- Weight: 3.90 kg (8.60 lb)
- With Mounting Kits:
3.99 kg (8.80 lb)
PACKAGE CONTENTS
- (2) Rackmount Brackets
- (8) Bracket Screws
- (4) Mounting Screws
- (4) Cage Nuts
- (1) Security Screw
- (4) 2.5" HDD Screws
- Power Cord
- (4) Rubber Feet
TECHNICAL SPECIFICATIONS
Interfaces
- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 1/10G SFP+ LAN Port
- (1) 1/10G SFP+ WAN Port
Management Interfaces
- Ethernet In-Band
- (1) Bluetooth BLE
Technical Information
- IDS/IPS Throughput: 3.5 Gbps *
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- * Measured with iPerf3.
Environment
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
Power
- Max. Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
- Redundant Power: (1) RPS DC Input
- Power Supply: Internal 50W/12V
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Certifications
