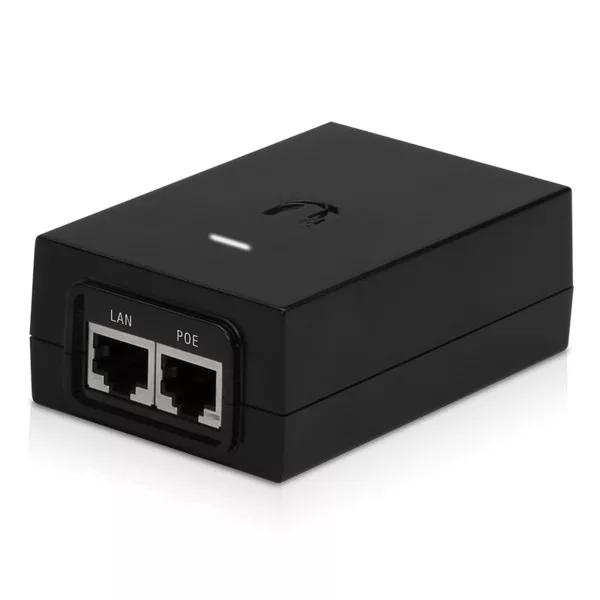

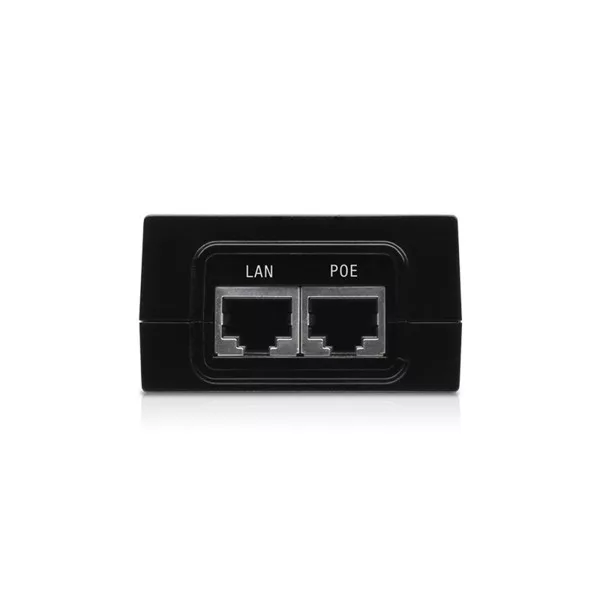

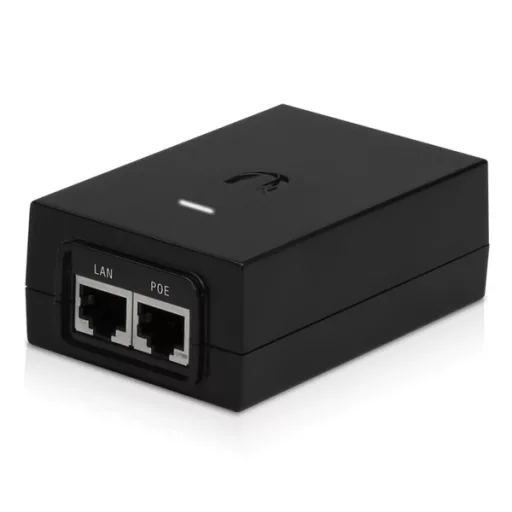

UBiQUiTi POE Adapter 2x100Mbps, 48VDC @ 0.5A - POE-48-24W

Name: UBiQUiTi POE Adapter 2x100Mbps, 48VDC @ 0.5A - POE-48-24W
Brand: UBIQUITI
SKU: CS_266487
Price: 6440 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_266487

nettó: 5 071 Ft bruttó: 6 440 Ft

UBiQUiTi POE Adapter 2x100Mbps, 48VDC @ 0.5A - POE-48-24W

Adatok

Gyártó:

UBIQUITI

Gyártói cikkszám:

POE-48-24W

EAN:

810354023064

EAN:

810354023064

Garancia:

12 hónap

Gyártó::

UBIQUITI

Portok száma:

Gyártó:

UBIQUITI

Garancia (hónap):

Termék gyártója:

UBIQUITI

Tömeg:

300 g/db

Részletek

POE-48-24W
Dimensions	88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight	135.5 g (4.78 oz)
Output Voltage	48VDC @ 0.5A
LAN Activity Indicator	No
Gigabit LAN Port	No
Remote Reset Capability	No
Reset Button	No
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current	<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency	80+%
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	–
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
