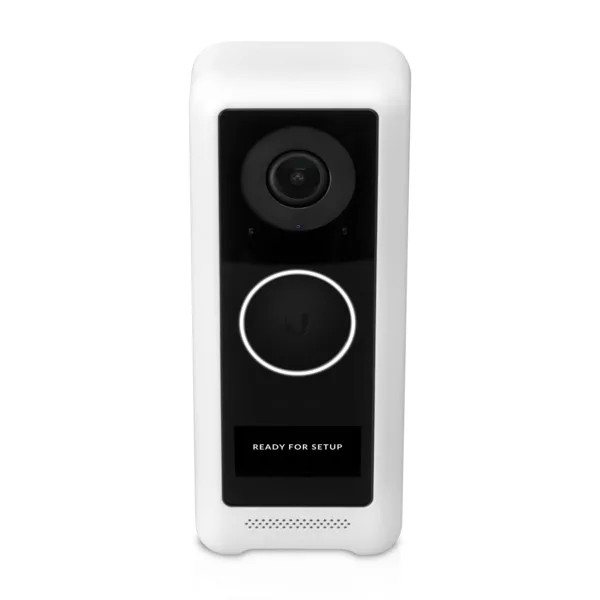

UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.
The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600x1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.
Features:
-
- 1600x1200 (2MP) HD stream with night vision
- Integrated entrance lighting
- Real-time two-way audio with echo cancellation
- Built-in display
- Dual-band 802.11ac Wi-Fi
- PIR motion detection sensor
- Weather-resistant
- UniFi Protect integration
- Comes with EU-rated 230V / 16VAC doorbell transformer
-
| Mechanical |
| Dimensions |
118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02") |
Weight
Without Mount
With Flat Wall Mount
With 20° Wedge Mount |
130 g (4.59 oz)
178 g (6.28 oz)
200 g (7.05 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Materials |
Flat Wall Mount: Aluminum Alloy
20° Wedge Mount: Polycarbonate |
| Weatherproofing |
IPX4 |
| Optics |
| Sensor |
5 MP CMOS Sensor |
| Lens |
Fixed Focal Length |
| View Angle |
H: 138°, V: 114°, D: 155° |
| Night Mode |
Built-in IR LED Illumination and IR Cut Filter |
| Video |
| Video Compression |
H.264 |
| Resolution |
1600 x 1200 (4:3) |
| Maximum Frame Rate |
30 FPS |
| System |
| Processor Specs |
Ambarella Advanced Image Processing SoC |
| Memory Information |
512 MB |
| Mangement Interface |
UniFi Protect |
| Networking Interface |
802.11 ac Wi-Fi |
| Flash Memory Support |
256 MB |
| Max. Power Consumption |
12VA |
| Power Requirements |
16-24VAC, 20VA |
| Link/Activity LED |
Yes |
| Button |
Factory Reset |
| Mounting |
Flat Wall/20° Wedge (Kits Included) |
| Operating Temperature |
-10 to 40º C (14 to 104º F) |
| Operating Humidity |
0 to 90% Noncondensing |
| Certifications |
FCC, IC, CE |
| Audio |
| Microphone |
Yes (Can be Disabled in Software) |
| Speaker |
Yes |
| Software |
| Controller Software |
UniFi Protect |
| Mobile Apps |
UniFi Protect iOS and Android |
| Compatible Mechanical Chimes |
Manufacturer
Broan-NuTone
Broan-NuTone
Heath Zenith
Craftmade
Broan-NuTone
Newhouse Hardware |
Model
LA126WH
LA11WH
SL-2735
CTPW-RG
LA39WH
CHM3D |
| Compatible Digital Chimes |
Manufacturer
Broan-NuTone
IQ AMERICA
IQ AMERICA |
Model
LA600WH
DW-2850
DW-2840 |
| Transformer Specifications |
| Input Rating (5, 6) |
230V, 50/60Hz |
| Output Rating (1, 4) |
16VAC, 15VA |
| Operating Temperature |
-5 to 35 º C (23 to 95º F) |
