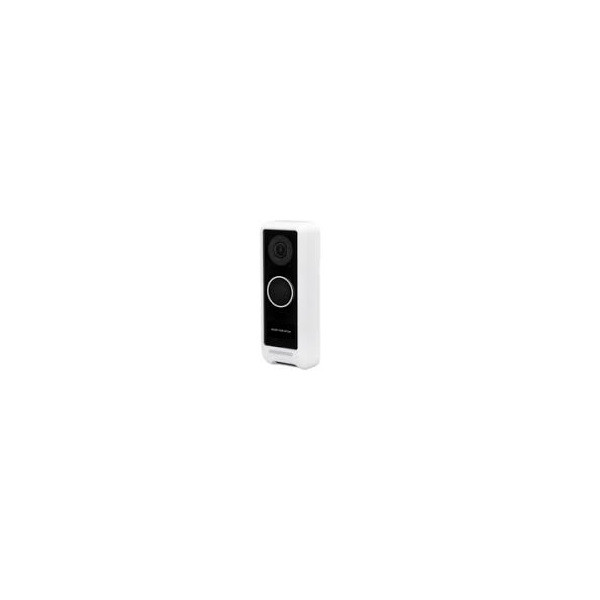

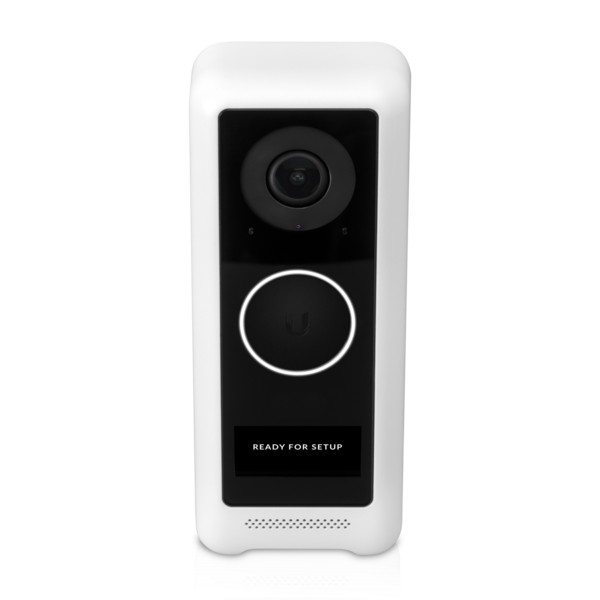

UniFi Protect G4 Doorbell is a Wi-Fi video doorbell with a built-in display and real-time two-way audio communication.
The camera features a high-quality 5MP sensor with enhanced night vision. Image streams can be viewed in up to 1600x1200 (2MP) HD at 30 FPS. UniFi Protect G4 Doorbell includes a PIR sensor for instant motion detection alerts. Integration with UniFi Protect provides an easy-to-use interface.
Features:
-
- 1600x1200 (2MP) HD stream with night vision
- Integrated entrance lighting
- Real-time two-way audio with echo cancellation
- Built-in display
- Dual-band 802.11ac Wi-Fi
- PIR motion detection sensor
- Weather-resistant
- UniFi Protect integration
- Comes with EU-rated 230V / 16VAC doorbell transformer
-
Mechanical |
Dimensions |
118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02") |
Weight
Without Mount
With Flat Wall Mount
With 20° Wedge Mount |
130 g (4.59 oz)
178 g (6.28 oz)
200 g (7.05 oz) |
Enclosure Material |
Polycarbonate |
Mount Materials |
Flat Wall Mount: Aluminum Alloy
20° Wedge Mount: Polycarbonate |
Weatherproofing |
IPX4 |
Optics |
Sensor |
5 MP CMOS Sensor |
Lens |
Fixed Focal Length |
View Angle |
H: 138°, V: 114°, D: 155° |
Night Mode |
Built-in IR LED Illumination and IR Cut Filter |
Video |
Video Compression |
H.264 |
Resolution |
1600 x 1200 (4:3) |
Maximum Frame Rate |
30 FPS |
System |
Processor Specs |
Ambarella Advanced Image Processing SoC |
Memory Information |
512 MB |
Mangement Interface |
UniFi Protect |
Networking Interface |
802.11 ac Wi-Fi |
Flash Memory Support |
256 MB |
Max. Power Consumption |
12VA |
Power Requirements |
16-24VAC, 20VA |
Link/Activity LED |
Yes |
Button |
Factory Reset |
Mounting |
Flat Wall/20° Wedge (Kits Included) |
Operating Temperature |
-10 to 40º C (14 to 104º F) |
Operating Humidity |
0 to 90% Noncondensing |
Certifications |
FCC, IC, CE |
Audio |
Microphone |
Yes (Can be Disabled in Software) |
Speaker |
Yes |
Software |
Controller Software |
UniFi Protect |
Mobile Apps |
UniFi Protect iOS and Android |
Compatible Mechanical Chimes |
Manufacturer
Broan-NuTone
Broan-NuTone
Heath Zenith
Craftmade
Broan-NuTone
Newhouse Hardware |
Model
LA126WH
LA11WH
SL-2735
CTPW-RG
LA39WH
CHM3D |
Compatible Digital Chimes |
Manufacturer
Broan-NuTone
IQ AMERICA
IQ AMERICA |
Model
LA600WH
DW-2850
DW-2840 |
Transformer Specifications |
Input Rating (5, 6) |
230V, 50/60Hz |
Output Rating (1, 4) |
16VAC, 15VA |
Operating Temperature |
-5 to 35 º C (23 to 95º F) |
