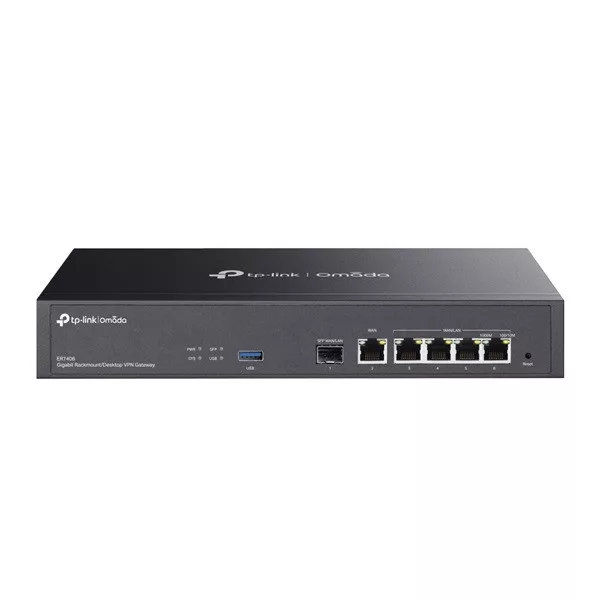

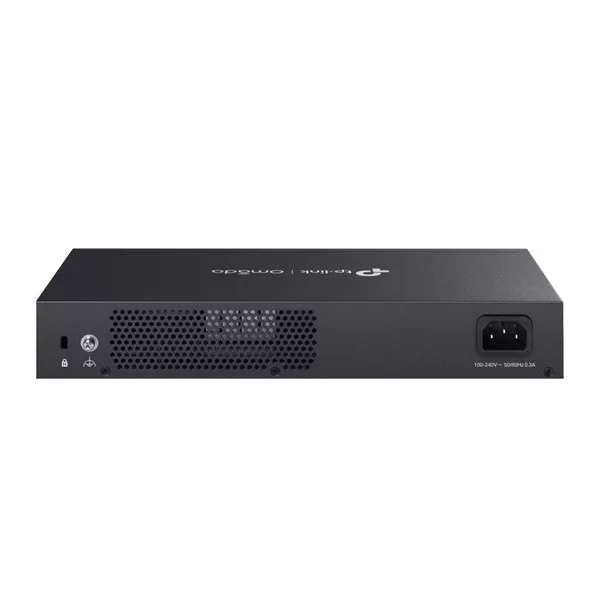

TP-LINK Vezetékes VPN Router 1xWAN(1000Mbps)+ 4xWAN/LAN(1000Mbps) + 1xSFP + 1xUSB, ER7406

Name: TP-LINK Vezetékes VPN Router 1xWAN(1000Mbps)+ 4xWAN/LAN(1000Mbps) + 1xSFP + 1xUSB, ER7406
Brand: TP-LINK
SKU: CS_388663
Price: 74740 HUF
Availability: InStock

Központi készleten, szállítás 2-3 nap!

Cikkszám:

CS_388663

nettó: 58 850 Ft bruttó: 74 740 Ft

Raktárkészletek

Központi készleten 4 db

TP-LINK Vezetékes VPN Router 1xWAN(1000Mbps)+ 4xWAN/LAN(1000Mbps) + 1xSFP + 1xUSB, ER7406

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

ER7406

EAN:

8885020622300

EAN:

8885020622300

Garancia:

60 hónap

Wifi sebesség:

1200 Mbit/s

SIM:

Nincs

USB portok száma:

LAN portok:

WAN sebesség:

10/100/1000 Mbit/s

LAN sebesség:

10/100/1000 Mbit/s

Gyártó:

TP-LINK

Garancia (hónap):

Termék gyártója:

TP-LINK

Tömeg:

1,91 kg/db

Részletek

SEGURIDAD
Control de acceso	Source/Destination IP Based Access Control
Filtración	• WEB Group Filtering^§ • URL Filtering • Web Security^§
Inspección ARP	• Sending GARP Packets • ARP Scanning^§ • IP-MAC Binding
Defensa de ataque	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface	• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Medios de red	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Cantidad de ventiladores	Fanless
Botón	Reset Button
Fuente de alimentación	100-240VAC, 50/60Hz
Flash	128 MB NAND
DRAM	512 MB DDR4
LED	PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensiones (An x Pr x Al)	11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protección	4 kV surge protection
Recinto	Steel
Montaje	• Desktop • Rackmountable
Consumo máximo de energía	• 7.5 W (with USB 3.0 connected) • 4.5 W (without USB 3.0 connected)

DESEMPENO
IPS Throughput	TCP: 229 Mbps; UDP: 188 Mbps
DPI Throughput	TCP: 933 Mbps; UDP: 927 Mbps
GRE	• Unencrypted: 611.9 Mbps • Encrypted: 325.0 Mbps
WireGuard VPN	341.3 Mbps
Sesión concurrente	150,000
New Sessions /Second	5,300
NAT (Static IP)	945.3 Mbps / 940.5 Mbps
NAT(DHCP)	939.6 Mbps / 940.9 Mbps
NAT(PPPoE)	943.6 Mbps / 940.9 Mbps
NAT (L2TP)	880.1 Mbps / 859.0 Mbps
NAT (PPTP)	855.0 Mbps / 907.2 Mbps
Rendimiento de VPN IPsec	• ESP-SHA1-AES256: 617.1 Mbps • ESP-SHA256-AES256: 592.8 Mbps • ESP-SHA384-AES256: 592.4 Mbps • ESP-SHA512-AES256: 604.5 Mbps
OpenVPN	139.1 Mbps
L2TP VPN Throughput	• Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps
PPTP VPN Throughput	• Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps
SSL VPN Throughput	131.6 Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,279 pps / 81,275 pps

FUNCIONES BÁSICAS
Tipo de conexión WAN	• Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP
Clon de MAC	Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

FUNCIONES AVANZADAS
camino avanzado	• Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode)
Control de Ancho de Banda	IP-based Bandwidth Control
Equilibrio de carga	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Límite de sesión	IP-based Session Limit

VPN
GRE	? (Only in Standalone Mode)
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)** • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)** • 50 Tunnels • L2TP over IPSec
VPN abierta	• OpenVPN Server • OpenVPN Client (5)** • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	• 20 Tunnels

AUTENTICACIÓN
Autenticación web	• No Authentication • Simple Password* • Hotspot (Local User /Voucher/ SMS/Radius) • External Radius Server • External Portal Server* • LDAP^§

ADMINISTRACIÓN
Aplicación Omada	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión centralizada	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Acceso a la nube	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Servicio	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Mantenimiento	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) (only in Standalone Mode) • NTP Synchronize (only in Standalone Mode) • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Aprovisionamiento sin intervención	Yes. Requires the use of Omada Cloud-Based Controller.
Funciones de gestión	• Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule*

OTROS
Certificación	CE, FCC, RoHS
contenidos del paquete	• ER7406 • Power Cord • Quick Installation Guide • Rackmount Kit
Requisitos del sistema	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux
Ambiente	• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
