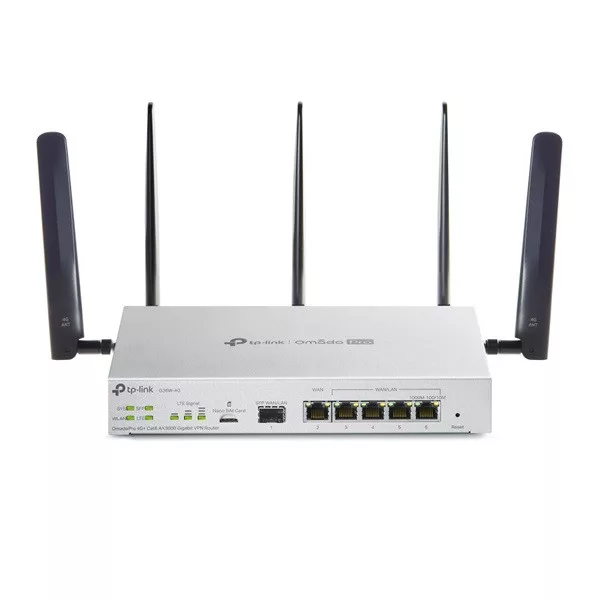

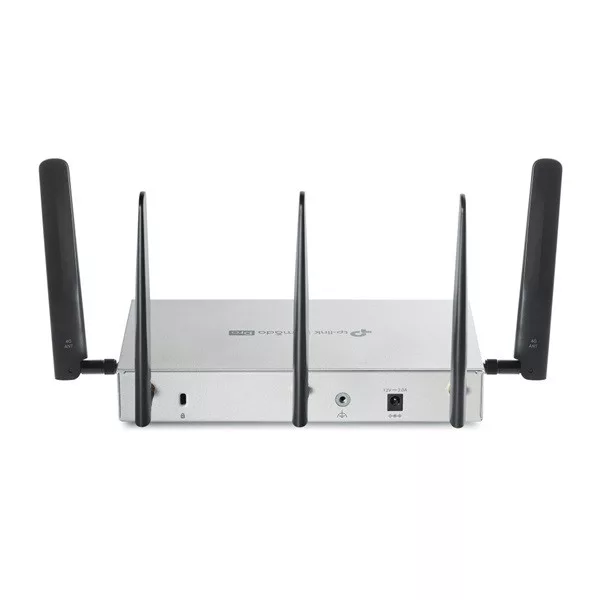

TP-LINK Vezetékes AX3000 VPN Router 1xSFP/WAN(1000Mbps) + 1xWAN(1000Mbps) + 4xLAN(1000Mbps) Omada Pro, G36W-4G

Name: TP-LINK Vezetékes AX3000 VPN Router 1xSFP/WAN(1000Mbps) + 1xWAN(1000Mbps) + 4xLAN(1000Mbps) Omada Pro, G36W-4G
Brand: TP-LINK
SKU: CS_354453
Price: 1149100 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_354453

nettó: 904 803 Ft bruttó: 1 149 100 Ft

TP-LINK Vezetékes AX3000 VPN Router 1xSFP/WAN(1000Mbps) + 1xWAN(1000Mbps) + 4xLAN(1000Mbps) Omada Pro, G36W-4G

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

G36W-4G

Garancia:

1188 hónap

Gyártó::

TP-LINK

Portok száma:

Frekvencia:

2.4 GHz és 5 GHz

Gyártó:

TP-LINK

Garancia (hónap):

1188

Termék gyártója:

TP-LINK

Részletek

4G
Network Type	LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 LTE Band of US: • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) • 4G LTE-TDD: B41/B48 (2500/3600 MHz) Carrier Aggregation of US: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71
SIM Type	1× Nano SIM Card
Frequency	• Downlink: 300 Mbps; • Uplink: 50 Mbps

SECURITY
DPI	• Application Control • Traffic Monitor • Application List
IDS/IPS	• Block List • Allow List • Signature Suppression Note: IDS means Intrusion detection systems. IPS means intrusion prevention systems.
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering^† • URL Filtering • Web Security^†
ARP Inspection	• Sending GARP Packets • ARP Scanning^† • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Interface	• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	128 MB NAND
DRAM	512 MB DDR4
LED	SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna	• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting	Desktop/ Wall-Mounting
Max Power Consumption	EU: 15.4W US: 17.3W

PERFORMANCE
GRE	• Unencrypted: 545.3 Mbps • Encrypted: 282.6 Mbps
WireGuard VPN	387.7 Mbps
Concurrent Session	150,000
New Sessions /Second	5,100
NAT (Static IP)	947.1 Mbps / 940.1 Mbps
NAT(DHCP)	949.2 Mbps / 941.1 Mbps
NAT(PPPoE)	942.6 Mbps / 941.1 Mbps
NAT (L2TP)	875.4 Mbps / 892.0 Mbps
NAT (PPTP)	881.2 Mbps / 895.8 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 652.2 Mbps • ESP-SHA256-AES256: 654.4 Mbps • ESP-SHA384-AES256: 646.5 Mbps • ESP-SHA512-AES256: 670.5 Mbps
OpenVPN	115.5 Mbps
L2TP VPN Throughput	• Unencrypted: 990.0 Mbps • Encrypted: 475.0 Mbps
PPTP VPN Throughput	• Unencrypted: 1177.9 Mbps • Encrypted: 177.4 Mbps
SSL VPN Throughput	122.5 Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81274 pps / 91275 pps

WIRELESS FEATURES
Advanced Functions	• Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio)
Guest Network	Support

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
SMS	Receive / Send SMS
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing • RIP^† • OSPF^†
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering^† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-based Session Limit

VPN
GRE	Only in Standalone Mode
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)^? • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^? • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)^? • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^§ • Hotspot(Local User /Voucher^§/ SMS^§/Radius^§) • External Radius Sever • External Portal Sever^§ • LDAP^§

MANAGEMENT
Omada App	Yes. Requiring the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller.
Centralized Management	• Omada Pro Cloud-Based Controller • Omada Pro Software Controller
Cloud Access	Yes. Requiring the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^† • NTP Synchronize^† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• G36W-4G • Power Adapter • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
