TP-LINK Switch 8x2500Mbps(8xPOE+) + 2x10G SFP+, Menedzselhető, SG2210XMP-M2

Name: TP-LINK Switch 8x2500Mbps(8xPOE+) + 2x10G SFP+, Menedzselhető, SG2210XMP-M2
Brand: TP-LINK
SKU: CS_353243
Price: 191270 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_353243

nettó: 150 606 Ft bruttó: 191 270 Ft

TP-LINK Switch 8x2500Mbps(8xPOE+) + 2x10G SFP+, Menedzselhető, SG2210XMP-M2

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

SG2210XMP-M2

EAN:

4895252504774

EAN:

4895252504774

Garancia:

60 hónap

Gyártó::

TP-LINK

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Teljes

Portok száma:

Port típusa:

10Gb SFP+

Switching kapacitás:

Menedzselhető:

Van

PoE (Power over Ethernet):

Van

Áteresztő képesség:

59,52

SFP port:

Routing / Switching:

Layer 2

Gyártó:

TP-LINK

Garancia (hónap):

Termék gyártója:

TP-LINK

Tömeg:

2,48 kg/db

Részletek

CARACTERÍSTICAS DE HARDWARE

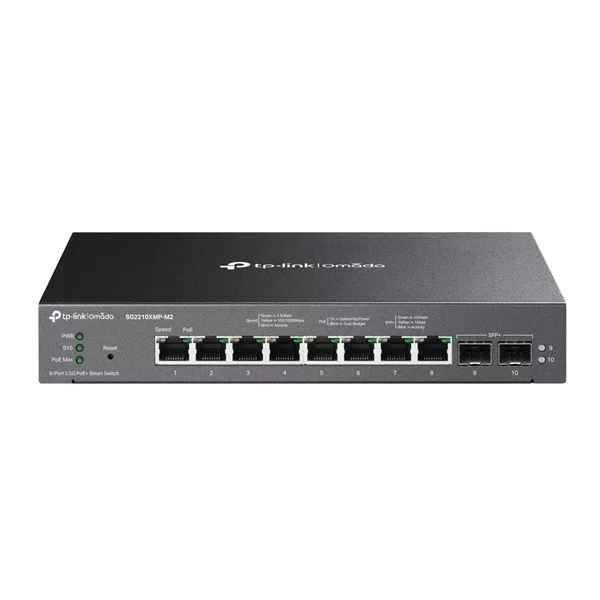

Interface	• 8× 100/1000/2500 Mbps RJ45 PoE+ Ports • 2× 10G SFP+ Slots
Cantidad de Ventiladores	Fanless
Cerradura de Seguridad Física	?
Fuente de Alimentación	53.5VDC/3.37A Power Adapter
Puertos PoE (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • PoE Power Budget: 160 W*
Dimensiones (W X D X H)	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Montaje	Desktop/Wall-Mounting
Consumo Máximo de energía	180.1 W (110V/60Hz) (with 160 W PD connected)
Disipación Máxima de Calor	614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)

RENDIMIENTO
Capacidad de Switcheo	80 Gbps
Tasa de Reenvío de Paquetes	59.52 Mpps
Tabla de MAC Address	16 K
Paquetes de Memoria de búfer	12 Mbit
Jumbo Frame	9 KB

CARACTERÍSTICAS DE SOFTWARE
Calidad de servicio	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
Características de L2 y L2 +	• 32 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
L2 Multicast	• 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile)
Características Avanzadas	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule
VLAN	• VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
Lista de control de acceso	• Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding
Seguridad	• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection - ND Snooping • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

ADMINISTRACIÓN
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log

OTROS
Certificacion	CE, FCC, RoHS
Contenidos del Paquete	• SG2210XHP-M2 Switch • Power Adapter • Quick Installation Guide • Rubber Feet
Requisitos del Sistema	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente	• Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

TP-LINK Switch 8x2500Mbps(8xPOE+) + 2x10G SFP+, Menedzselhető, SG2210XMP-M2

nettó: 150 606 Ft bruttó: 191 270 Ft
