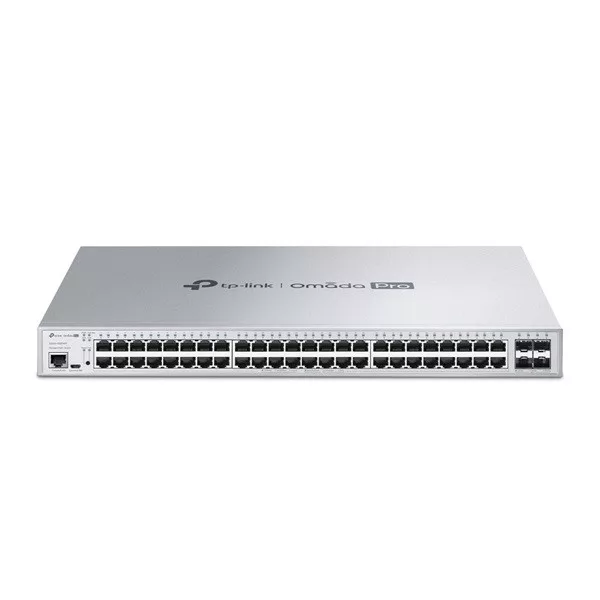

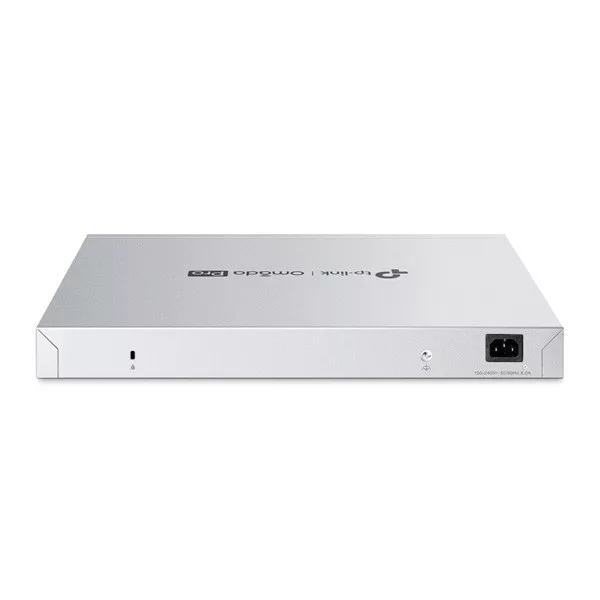

TP-LINK Switch 48x1000Mbps(POE+) + 4x10Gbps SFP+ Layer2+ Rackes Omada Pro, S5500-48GP4XF

Name: TP-LINK Switch 48x1000Mbps(POE+) + 4x10Gbps SFP+ Layer2+ Rackes Omada Pro, S5500-48GP4XF
Brand: TP-LINK
SKU: CS_354472
Price: 2863220 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_354472

nettó: 2 254 504 Ft bruttó: 2 863 220 Ft

TP-LINK Switch 48x1000Mbps(POE+) + 4x10Gbps SFP+ Layer2+ Rackes Omada Pro, S5500-48GP4XF

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

S5500-48GP4XF

Garancia:

1188 hónap

Gyártó::

TP-LINK

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Teljes

Portok száma:

Port típusa:

1Gb Réz

Switching kapacitás:

176

Menedzselhető:

Van

PoE (Power over Ethernet):

Van

Áteresztő képesség:

130,94

SFP port:

Routing / Switching:

Layer 2

Gyártó:

TP-LINK

Garancia (hónap):

1188

Termék gyártója:

TP-LINK

Részletek

HARDWARE FEATURES
Interface	• 48× 10/100/1000 Mbps RJ45 Ports (all support PoE+) • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity	3
Power Supply	100~240VAC, 50/60Hz
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 48 Ports, up to 30 W per port • PoE Power Budget: 500 W*
Dimensions ( W x D x H )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	• 49.19 W (110V/60Hz) (no PD connected) • 635.70 W (110V/60Hz) (with 500 W PD connected)
Max Heat Dissipation	• 167.85 BTU/hr (110 V/60 Hz) (no PD connected) • 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)

PERFORMANCE
Switching Capacity	176 Gbps
Packet Forwarding Rate	130.94 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
L3 Features	• 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay • DHCP L2 Relay
L2 and L2+ Features	• Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both
L2 Multicast	• Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • DDM • ERPS • sFlow Intelligent Anomaly Detection**
VLAN	• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • Voice VLAN • VLAN VPN (QinQ) - VLAN Mapping - VLAN Replace • OUI-Based VLAN
Access Control List	• MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN • Time-based ACL
Security	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support RADIUS authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • RADIUS Accounting Client MIB (RFC2620) • RADIUS Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link Private MIB

MANAGEMENT
Omada App	Yes, through Omada Pro Controller
Centralized Management	• Omada Pro Cloud-Based Controller • Omada Pro Software Controller
Cloud Access	Yes, through Omada Pro Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Pro Cloud-Based Controller
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log • Remote Packet Capture

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• S5500-48GP4XF • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

TP-LINK Switch 48x1000Mbps(POE+) + 4x10Gbps SFP+ Layer2+ Rackes Omada Pro, S5500-48GP4XF

nettó: 2 254 504 Ft bruttó: 2 863 220 Ft
