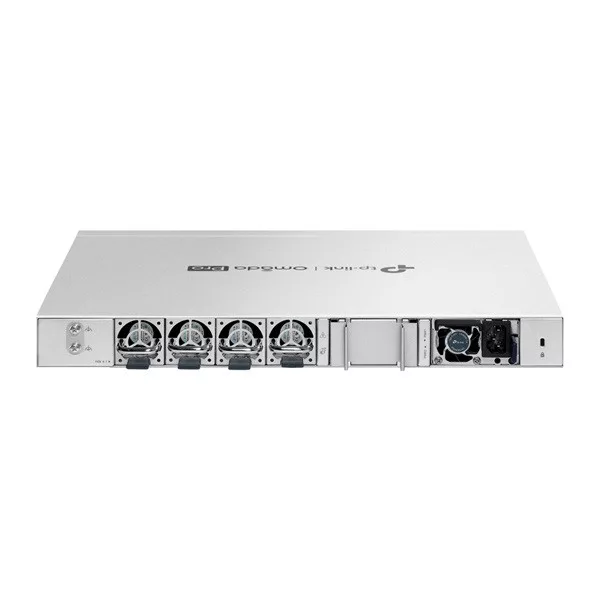

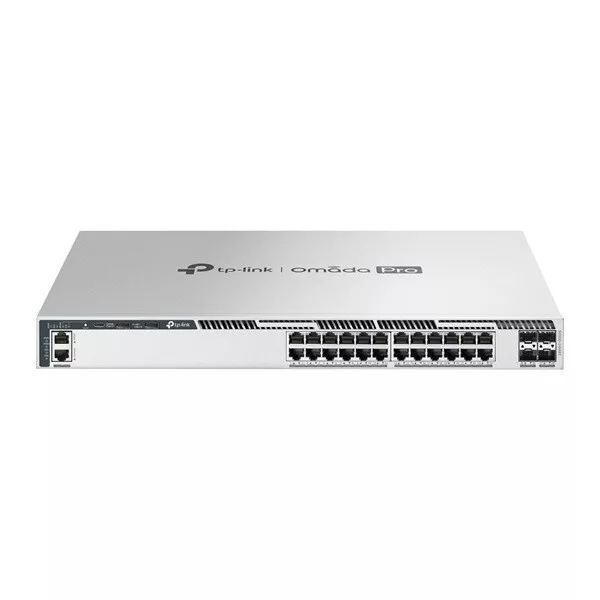

TP-LINK Switch 24x2.5Gbps + 4x25Gbps SFP28 Layer3 Rackes Omada Pro, S6500-24M4Y

Name: TP-LINK Switch 24x2.5Gbps + 4x25Gbps SFP28 Layer3 Rackes Omada Pro, S6500-24M4Y
Brand: TP-LINK
SKU: CS_359386
Price: 7271390 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_359386

nettó: 5 725 504 Ft bruttó: 7 271 390 Ft

TP-LINK Switch 24x2.5Gbps + 4x25Gbps SFP28 Layer3 Rackes Omada Pro, S6500-24M4Y

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

S6500-24M4Y

Garancia:

1188 hónap

Gyártó::

TP-LINK

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Teljes

Portok száma:

Port típusa:

1Gb Réz

Switching kapacitás:

320

Menedzselhető:

Van

PoE (Power over Ethernet):

Nincs

Áteresztő képesség:

238,1

SFP port:

Routing / Switching:

Layer 3 Standard

Gyártó:

TP-LINK

Garancia (hónap):

1188

Termék gyártója:

TP-LINK

Részletek

HARDWARE FEATURES
Interface	• 24 × 100Mbps/1Gbps/2.5Gbps RJ45 Ports • 4× 1/10/25G SFP28 Slots** • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port
Fan Quantity	Four Field-replaceable and Hot-swappable Fans
Power Supply	Two Field-replaceable and Hot-swappable Power Supply Modules(100–240 VAC, 50/60 Hz) Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions ( W x D x H )	17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting	Rackmountable
Max Power Consumption	72.5 W (110 V/60 Hz)
Max Heat Dissipation	247.2 BTU/hr (110 V/60 Hz)

PERFORMANCE
Switching Capacity	320 Gbps per Unit
Stacking	• Stacking Number: 12 (standalone mode) • Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)*** • Stacking Bandwidth: Up to 200 Gbps (4 stacking ports)
Packet Forwarding Rate	238.1 Mpps
MAC Address Table	32 K
Packet Buffer Memory	3 MB
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP/ToS Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) • WRED profile: 16
L3 Features	• L3 Interface: 256 (IPv4,IPv6) • Static Route: 1,024 IPv4, 512 IPv6 • Host Route Table: Max 6,100 entries • IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries) • IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries) • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 12,288 dynamic entries • ND: 12,288 • DHCP Server: Max IP Pools: 64, Max Leases: 8000 • DHCPv4/v6 Relay • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance • OSPFv2 - OSPF Process: 16 - Graceful Restart - OSPFv2 BFD • OSPFv3 - OSPFv3 Instance: 1 - OSPFv3 BFD • RIPv1/v2 • RIPng • IS-ISv4/v6 • IS-IS BFD • BGPv4 • PIM-SM/PIM-DM/PIM-SSM - IP Multicast Route Entries: 1024 • IGMP: Version v1/v2/v3, Max 2,048 multicast groups • BFD: 16 template numbers, 8 session numbers • PBR • uRPF
L2 and L2+ Features	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Groups: 4K (IGMP Snooping & MLD Snooping & MVR) - Fast Leave - Static Multicast Groups - Multicast Filtering - IGMP Snooping Authentication
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN
Security	• Port Isolation • CPU-Defend • DoS Defend • IP-MAC Binding -1,024 Entries - DHCP Snooping - ARP Scanning • IPv6-MAC Binding -1,024 Entries - DHCPv6 Snooping - ND Snooping • ARP Inspection • ND Detection • IPv4 Source Guard • IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control • MACSec (gcm-aes-128, gcm-aes-256) • Secure boot • RADSEC

MANAGEMENT
Omada App	Yes, through Omada Pro Controller
Centralized Management	• Omada Pro Cloud-Based Controller • Omada Pro Hardware Controller • Omada Pro Software Controller
Cloud Access	Yes, through Omada Pro Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE)

OTHERS
Package Contents	• S6500-24M4Y Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

TP-LINK Switch 24x2.5Gbps + 4x25Gbps SFP28 Layer3 Rackes Omada Pro, S6500-24M4Y

nettó: 5 725 504 Ft bruttó: 7 271 390 Ft
