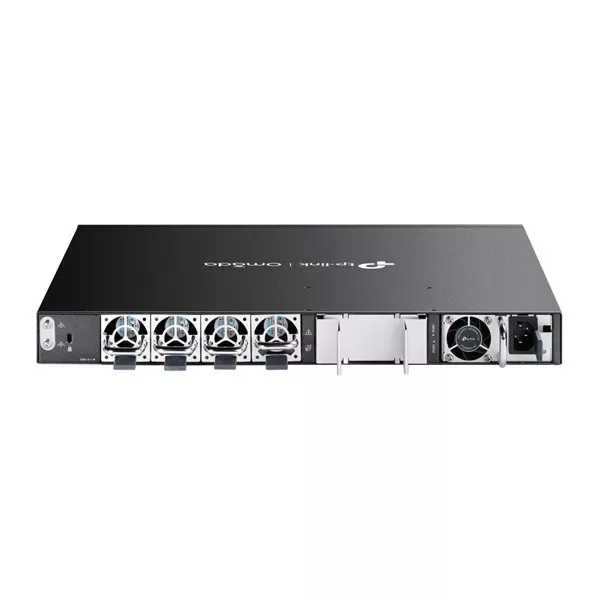

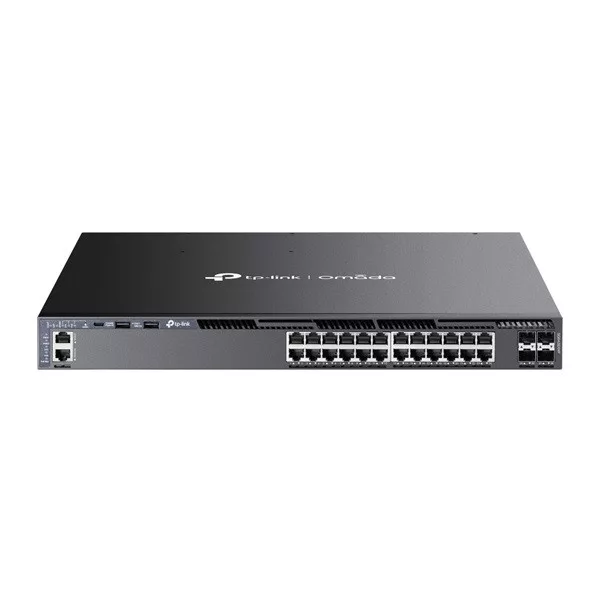

TP-LINK Switch 24x1000Mbps(POE+) + 4x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6428XHP

Name: TP-LINK Switch 24x1000Mbps(POE+) + 4x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6428XHP
Brand: TP-LINK
SKU: CS_350969
Price: 1451230 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_350969

nettó: 1 142 701 Ft bruttó: 1 451 230 Ft

TP-LINK Switch 24x1000Mbps(POE+) + 4x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6428XHP

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

SG6428XHP

Garancia:

60 hónap

Gyártó::

TP-LINK

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Teljes

Portok száma:

Port típusa:

10Gb SFP+

Switching kapacitás:

128

Menedzselhető:

Van

PoE (Power over Ethernet):

Van

Áteresztő képesség:

95,2

SFP port:

VLANs:

256

Routing / Switching:

Layer 3 Standard

Gyártó:

TP-LINK

Garancia (hónap):

Termék gyártója:

TP-LINK

Részletek

HARDVER JELLEMZŐK
Csatlakozások	• 24× 10/100/1000 Mbps PoE+ RJ45 Ports • 4× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port
Ventilátorok száma	Four Field-replaceable and Hot-swappable Fans
Hálózati tápegység	Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz) Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
PoE portok (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • PoE Power Budget: up to 720 W* *The total PoE budget varies with the power supply modules.
Méretek (Sz x Mé x Ma)	17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Felszerelés	Rackmountable
Max. áramfelvétel	• 42.9 W (110 V/60 Hz) (With no PD connected) • 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
Max Heat Dissipation	• 146.29 BTU/hr (110 V/60 Hz) (With no PD connected) • 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)

MŰKÖDÉSI JELLEMZŐK
Switching teljesítmény	128 Gbps per Unit
Stacking	• Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Csomagtovábbítási sebesség	95.2 Mpps
Fizikai (MAC) cím tábla	32 K
Csomag puffer memória	3 MB
Jumbo Frame	9 KB

SZOFTVER JELLEMZŐK
QoS (szolgáltatás minősége)	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
L3 jellemzők	• IP Interfaces: - IPv4: Max 256, IPv6: Max 256 • Static Routing - Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: - Max 8K IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN
L2 és L2+ jellemzők	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering
További jellemzők	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN
Biztonság	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control

VEZÉRLÉS
Omada App	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • EEE

EGYÉB JELLEMZŐK
Csomagolás tartalma	• SG6428XHP Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
Rendszerkövetelmény	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Környezet	• Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

TP-LINK Switch 24x1000Mbps(POE+) + 4x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6428XHP

nettó: 1 142 701 Ft bruttó: 1 451 230 Ft
