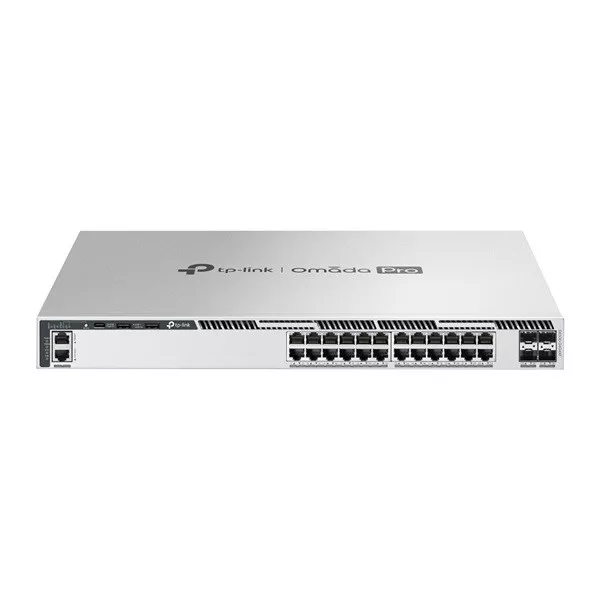

TP-LINK Switch 24x1000Mbps + 4x10Gbps SFP+ Layer3 Rackes Omada Pro, S6500-24G4XF

Name: TP-LINK Switch 24x1000Mbps + 4x10Gbps SFP+ Layer3 Rackes Omada Pro, S6500-24G4XF
Brand: TP-LINK
SKU: CS_358043
Price: 3267080 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_358043

nettó: 2 572 504 Ft bruttó: 3 267 080 Ft

TP-LINK Switch 24x1000Mbps + 4x10Gbps SFP+ Layer3 Rackes Omada Pro, S6500-24G4XF

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

S6500-24G4XF

Garancia:

1188 hónap

Gyártó::

TP-LINK

Rack-be szerelhető:

Van

Switch típus:

Modular

Menedzselhetőség:

Teljes

Portok száma:

Port típusa:

1Gb Réz

Switching kapacitás:

128

Menedzselhető:

Van

PoE (Power over Ethernet):

Nincs

Áteresztő képesség:

95,2

SFP port:

Routing / Switching:

Layer 3 Standard

Gyártó:

TP-LINK

Garancia (hónap):

1188

Termék gyártója:

TP-LINK

Részletek

CARACTERÍSTICAS DE HARDWARE
Interface	• 24× 10/100/1000 Mbps RJ45 Ports • 4× 1/10Gbps SFP+ Slots* • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port
Cantidad de Ventiladores	Four Internal Fixed Fans
Fuente de Alimentación	Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensiones (W X D X H)	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Montaje	Rackmountable
Consumo Máximo de energía	28.4 W (220 V/50 Hz)
Disipación Máxima de Calor	96.91 BTU/hr (220 V/50 Hz)

RENDIMIENTO
Capacidad de Switcheo	128 Gbps per Unit
Apilado	• Stacking Number: 12 (standalone mode) • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)** • Stack Bandwidth: Up to 80 Gbps (4 stacking ports)
Tasa de Reenvío de Paquetes	95.2 Mpps
Tabla de MAC Address	32 K
Paquetes de Memoria de búfer	3 MB
Jumbo Frame	9 KB

CARACTERÍSTICAS DE SOFTWARE
Calidad de servicio	• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) • WRED profile: 16
L3 Features	• L3 Interface: 256 (IPv4,IPv6) • Static Route: 1,024 IPv4, 512 IPv6 • Host Route Table: Max 6,100 entries • IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries) • IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries) • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • ND: 7680 • DHCP Server: Max 64 IP pool, Max 8,000 IP entries • DHCPv4/v6 Relay • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance • OSPFv2 - OSPF Instance: 16 - Network Entries: 256 entries - Area Entries for Stub or NSSA: 16 per instance - Area Range Entries: 16 per instance - Virtual-link Entries: 16 per instance • OSPFv3 - Area Entries for Stub or NSSA: 16 per instance - Area Range Entries: 16 per instance • RIPv1/v2 - Network Entries: 256 - Redistribute Entries: 20 • RIPng • IS-IS - IS-IS Interfaces: 128 - IS-IS Area Numbers: 3 - Max Redistribute Configs: 10 - IS-IS IPV6 - IS-IS BFD • BGP: Max 20 redistribute configs • PIM-DM/PIM-SM/PIM-SSM - IP Multicast Route Entries: 1K - PIM Neighbors: 256 - Max PIM Interfaces: 128 • IGMP: Version v1/v2/v3, Max 2,048 multicast groups • BFD: 16 template numbers, 8 session numbers • PBR • uRPF
Características de L2 y L2 +	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - Multicast VLAN Registration (MVR) - Max Multicast Table: 4K (IPv4, IPv6) - Fast Leave - Static Multicast Groups - Multicast Filtering - IGMP Snooping Authentication
Características Avanzadas	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN
Seguridad	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control • MACSec (-128, -256) • Secure boot • RADSEC
Virtualization	• IP Tunnel - IPv6 over IPv4 - IPv6 over IPv4 GRE - IPv4 over IPv4 GRE - Tunnel entries: 100

ADMINISTRACIÓN
Omada App	Yes, through Omada Pro Controller
Centralized Management	• Omada Pro Cloud-Based Controller • Omada Pro Hardware Controller • Omada Pro Software Controller
Cloud Access	Yes, through Omada Pro Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) • Configuration Rollback • Hot Patching • NETCONF

Otros
Contenidos del Paquete	• S6500-24G4XF Switch • 2× Power Cords • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
Requisitos del Sistema	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente	• Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
