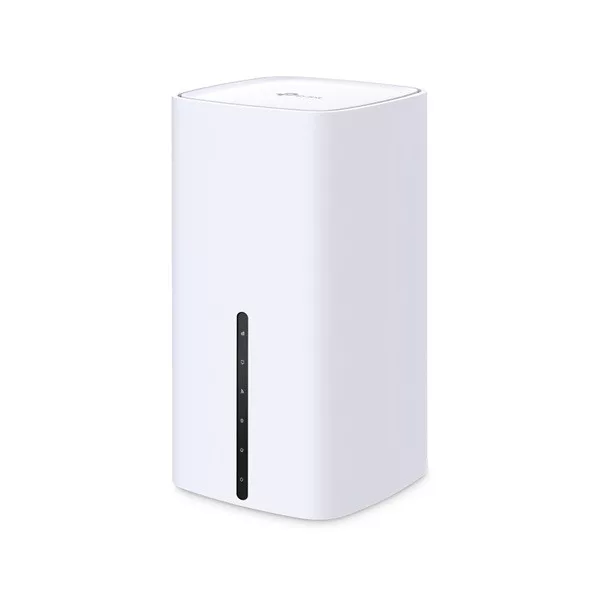

TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505
TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505 TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505 TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505

TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505

Rendelhető
Cikkszám:
CS_396836
nettó: 148 638 Ft bruttó: 188 770 Ft
TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505
Adatok
Gyártó:
TP-LINK
Gyártói cikkszám:
ARCHER NX505
Garancia:
36 hónap
Garancia (hónap):
36
Termék gyártója:
TP-LINK
Részletek

5G/4G/3G
Network Mode 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/1500/1500/3700/3500 MHz)

4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32
(2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)

3G
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Speed 5G
Download Speed 4.67 Gbps
Upload Speed 1.25 Gbps

4G LTE Cat19:
Download Speed 1.6 Gbps
Upload Speed 211 Mbps
SIM Type Nano SIM Card

HARDWARE FEATURES

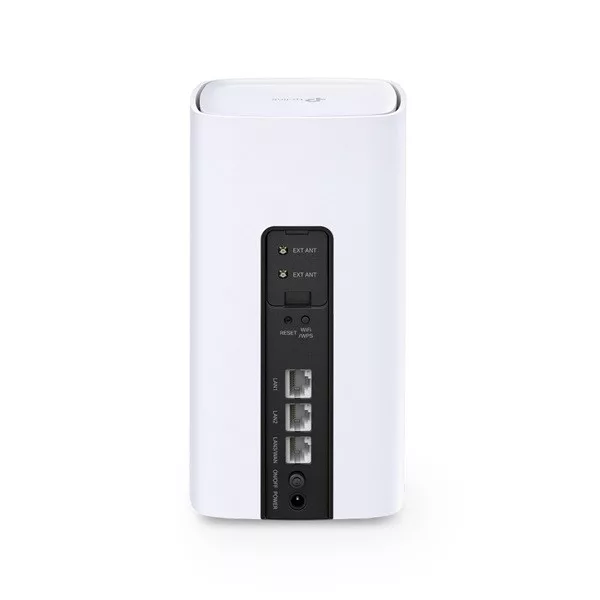

Interface 1 × 10/100/1000 Mbps LAN/WAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × External SMA-F Antenna Interface
Button WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A
Dimensions ( W x D x H ) 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Antenna 8 × 5G/LTE Internal Antennas
3 × Wi-Fi Internal Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz
Reception Sensitivity 5GHz:
11a 54M:-80 dBm
11ax HE20:-68 dBm
11ax HE40:-65 dBm
11ax HE80:-62 dBm
11ac VHT20:-76 dBm
11ac VHT40:-72 dBm
11ac VHT80:-68 dBm
11n HT20:-79 dBm
11n HT40:-75 dBm
2.4GHz
11g 54M:-78 dBm
11ax HE20:-65 dBm
11ax HE40:-62 dBm
11ac VHT20:-73 dBm
11ac VHT40:-68 dBm
11n HT20:-75 dBm
11n HT40:-72 dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover Yes
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power <23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)

SOFTWARE FEATURES
Quality of Service Prioritizes network traffic by device or application
Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features TP-Link Cloud, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
VPN PPTP VPN, IPSec VPN , OpenVPN
Access Control Parental Control, Local Management Control
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network x 1
5 GHz Guest Network x 1

OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
IPv6 DHCP Server
IP address assignment (DHCPv6)
• Port: 547   Protocol: UDP
DNS
DNS
• Port: 53   Protocol: TCP
App management
Manage and configure device through app
• Port: 22   Protocol: TCP
• Port: 20002   Protocol: TCP

OTHERS
Certification CE, RoHS
Package Content 5G AX3000 Wireless Dual-Band Gigabit Router Archer NX500
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements System Requirements
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505
TP-LINK 4G/5G Modem + Wireless Router Dual Band AX3000 1xWAN/LAN(1000Mbps) + 2xLAN(1000Mbps), ARCHER NX505
nettó: 148 638 Ft bruttó: 188 770 Ft
